PG-130
DisplayPort 1.1 KVM Extender over IP
DisplayPort 1.1 KVM Extender over IP
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
- UltraHD digital video & digital audio over a CAT.X cable with RJ-45 connectors
- Video resolution supports up to 3840 x 2160@30Hz
- HDCP 1.2/1.1 specification compliant
- Extension distance can be up to 100 meters with CAT.X cable or up to 200 meters with an Ethernet network switch
- USB 2.0 pass-thru over LAN
- Compatibility with full speed USB devices: webcams, USB flash drives, keyboard & mouse
- Supports Audio Formats LPCM/DTS/Dolby/Dolby ATMOS
- Identical video interfaces (DP 1.1) for Transmitter Input and Receiver Output
- USB 2.0/USB1.1 specification compliant
- Support Windows 7/10/11, Linux and Mac OS
- Multi-platform support for PC and Macintosh
- LED Indicators for easy status monitoring
- Metal enclosure for best shielding and protection
Description
- Description
- Specification
- Download

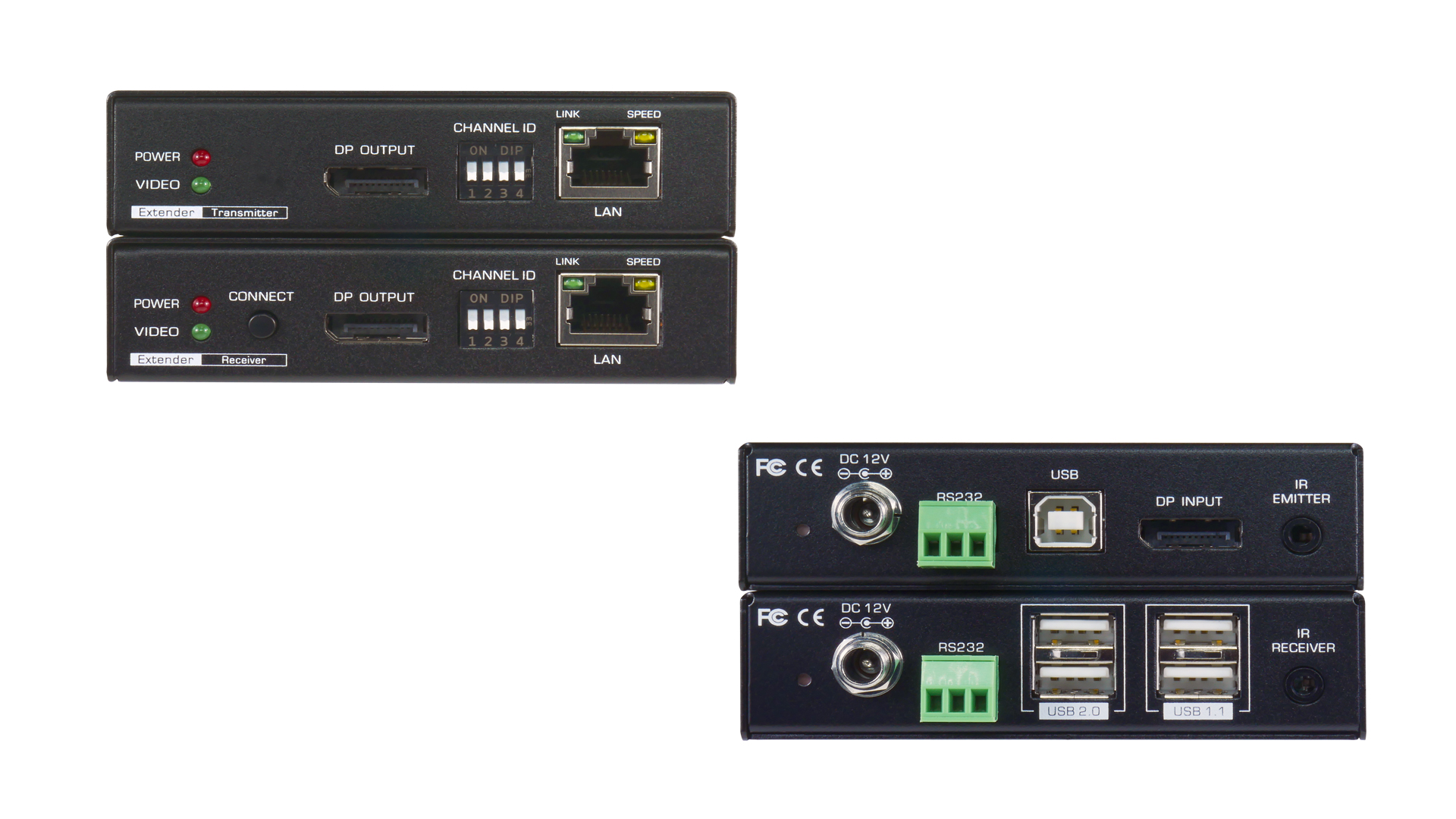

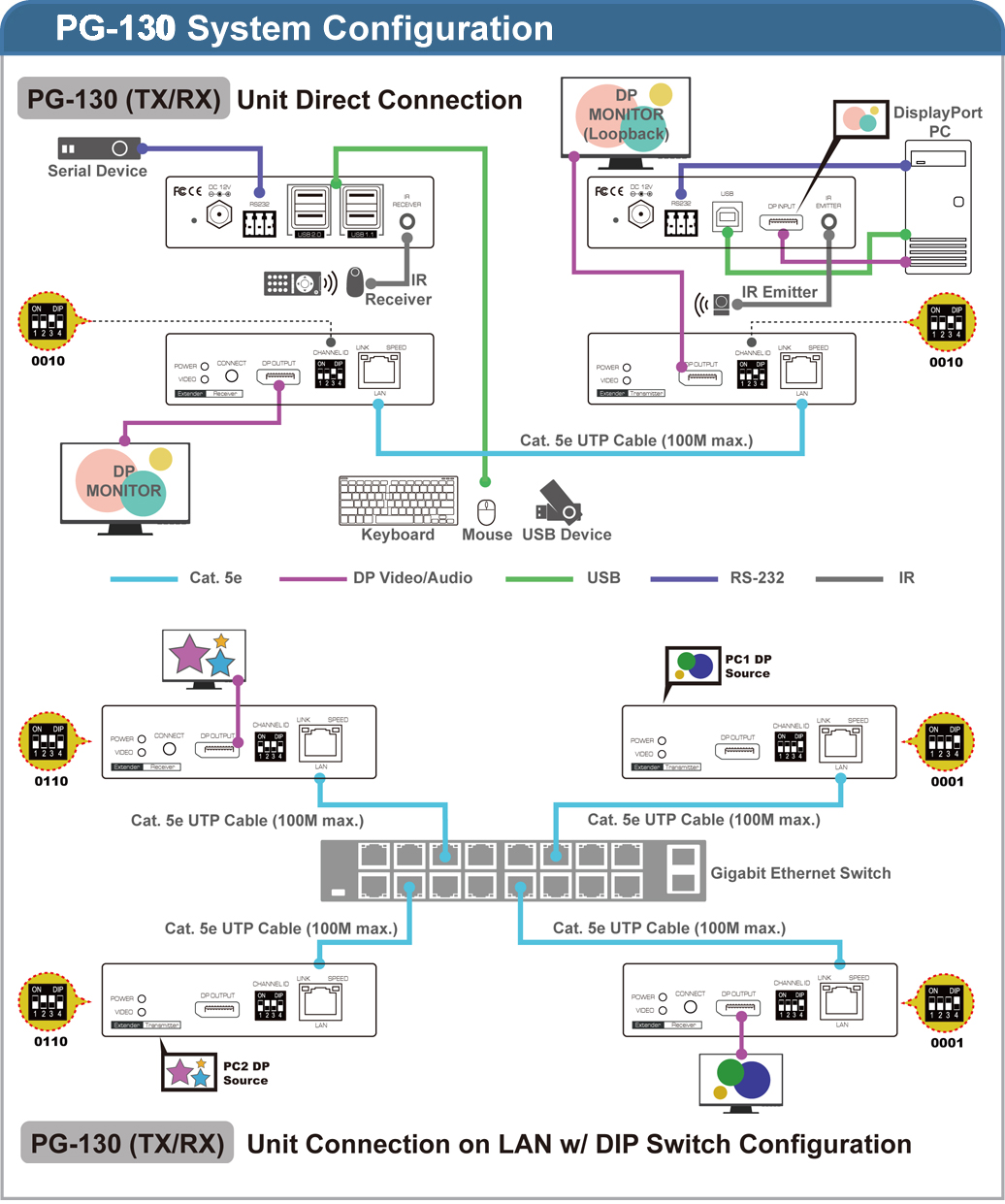

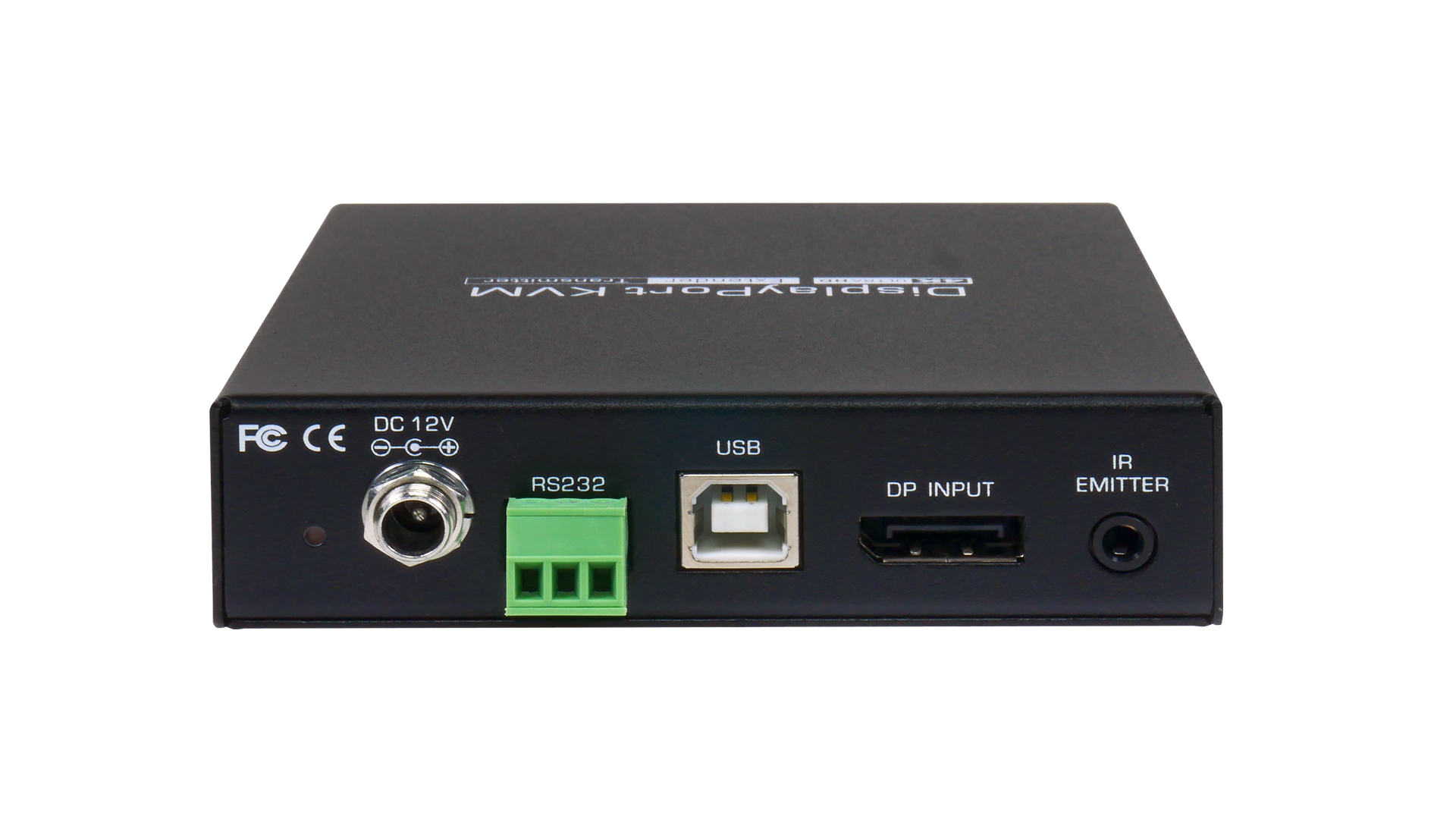

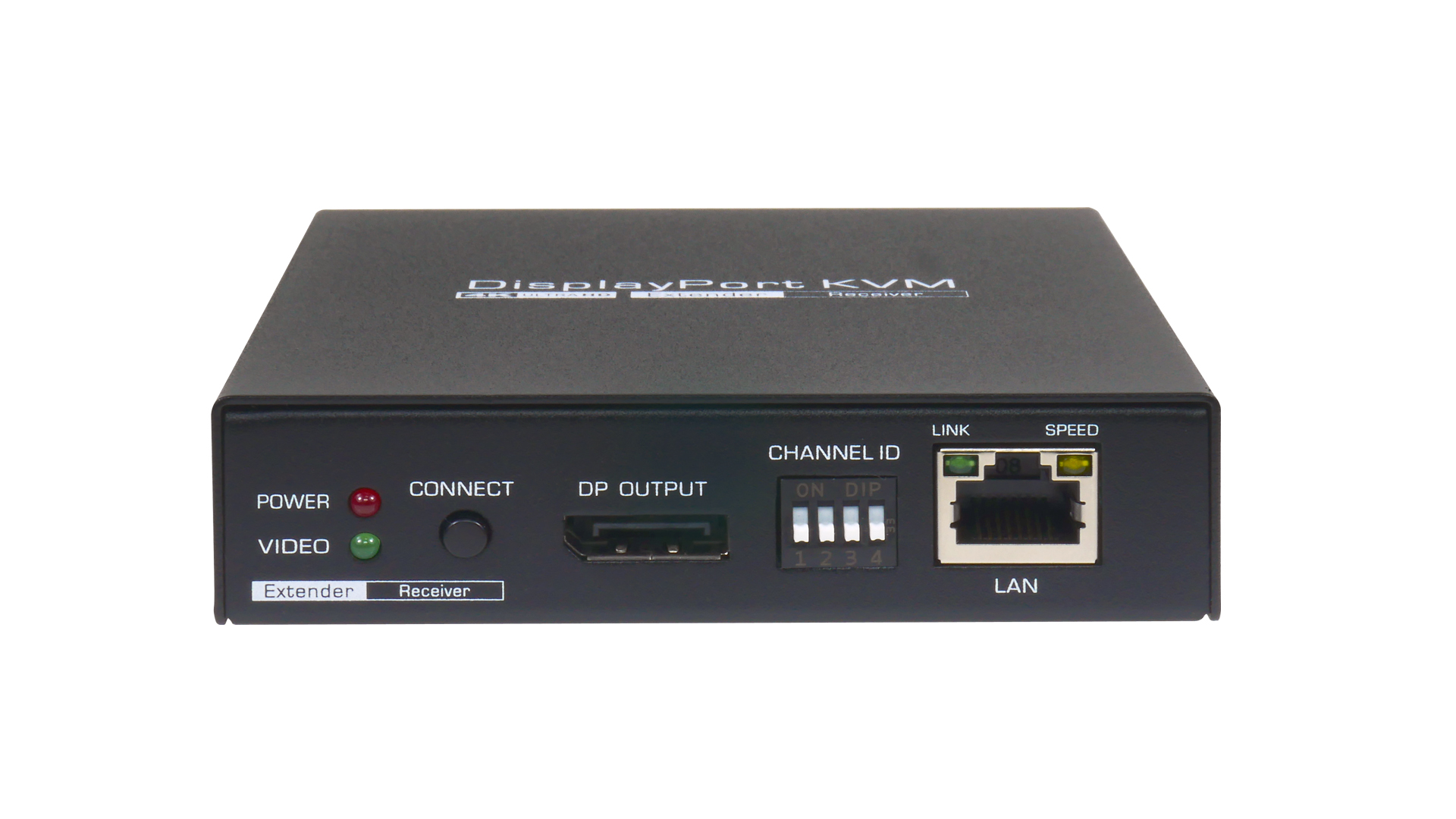

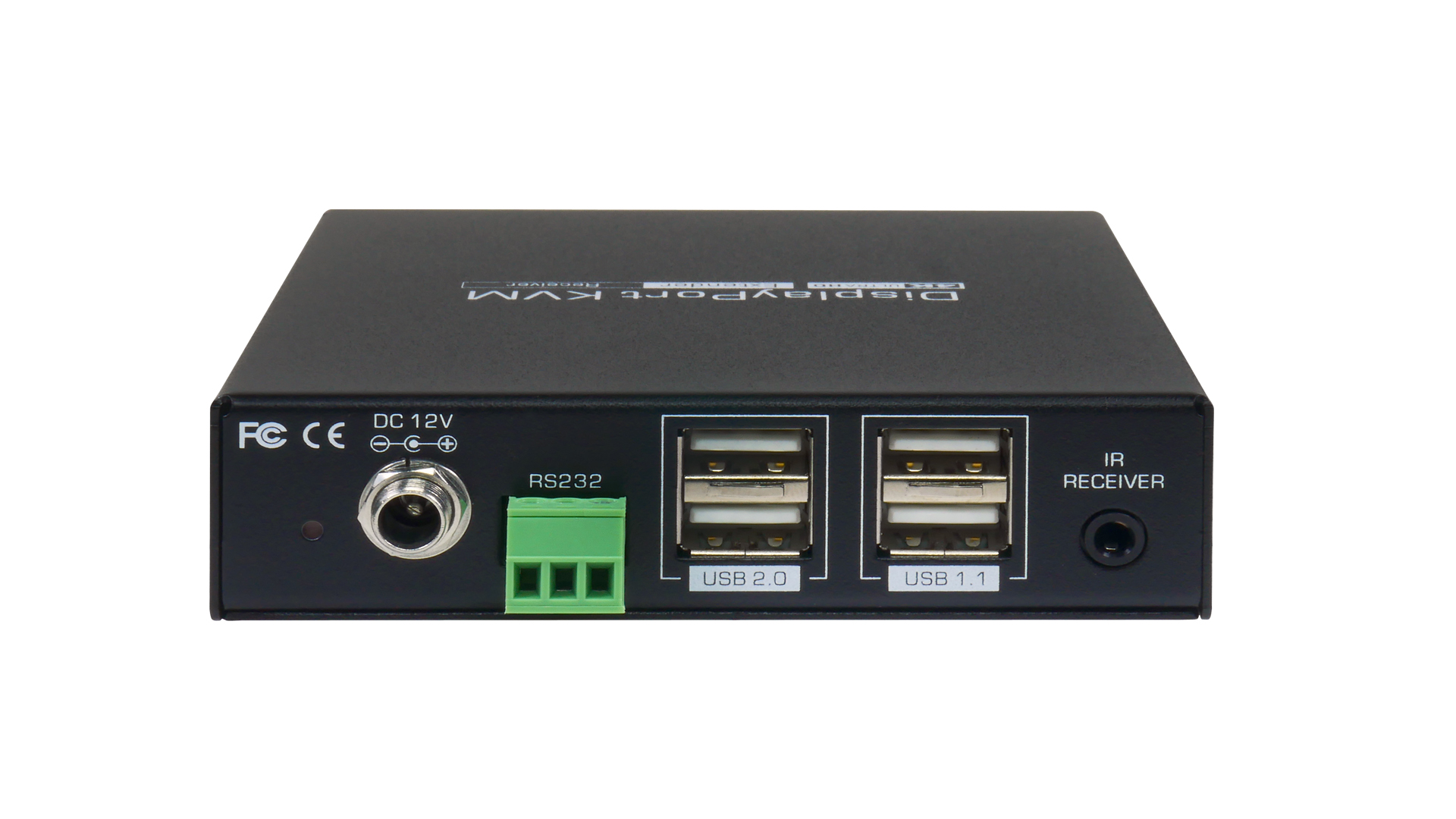

PG-130 is a KVM Extender designed to deliver DisplayPort-enabled computer signals over long distance. It is an IP-based extender working in pairs to extend various signals, such as DP(video/audio), keyboard, mouse, USB, RS-232, and IR. Both of the transmitter unit (TX) and receiver unit (RX) are connected via one CAT.X cable to deliver PC singals up to 100m (point to point). It means that the user can remotely access and control the connected DisplayPort-enabled computer away from the local site.
PG-130 DATASHEET
(2026/02/12 15:47:11)
KVM Extender over IP (≤4K@30)
(2026/02/12 15:47:11)
