PG-241
Dual-display DisplayPort 1.2 KVM Extender over IP
Dual-display DisplayPort 1.2 KVM Extender over IP
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
- Ultra HD digital video & digital audio over two CAT.X cables with RJ-45 connectors or over two optional fiber-optic cables & optical modules with SFP cages.
- Video resolution supports up to 3840 x 2160@60Hz
- HDCP 2.3/2.2 specification compliant
- Extension distance can be up to 100 meters with the CAT.X cable or up to 200 meters with the Ethernet network switch
- USB 2.0 pass-thru over LAN
- Compatibility with full speed USB devices: webcams, USB flash drives, keyboard & mouse
- Supports Audio Formats LPCM/DTS/Dolby/Dolby ATMOS
- Identical video interfaces (DP 1.2) for Transmitter Input and Receiver Output
- USB 2.0/USB1.1 specification compliant
- Support Windows 7/10/11, Linux and Mac OS
- Multi-platform support for PC and Macintosh
- Status LED display for easy port status monitoring
- Metal enclosure for best shielding and protection
Description
- Description

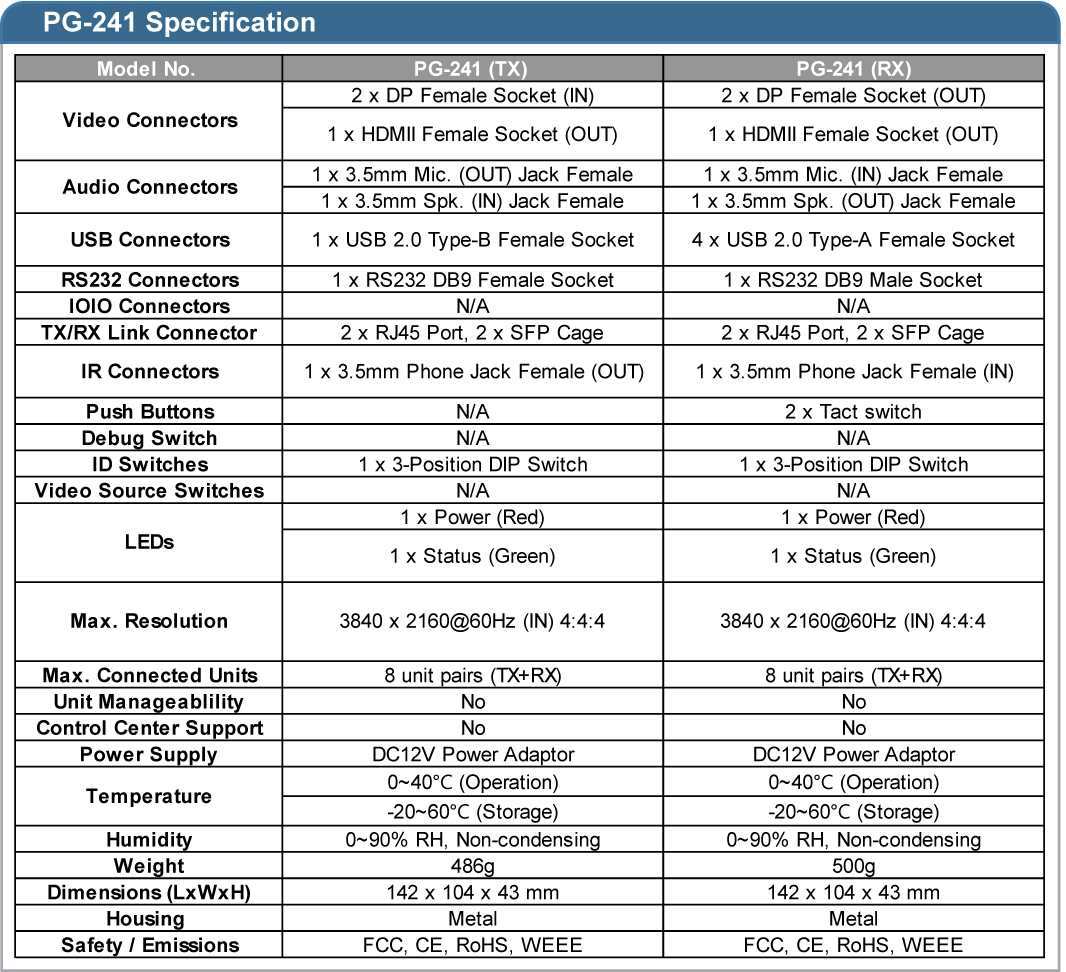

- Specification
- Download
PG-241 DATASHEET
(2024/12/19 15:36:44)
KVM Extender over IP (≥4K@60)
(2024/12/19 15:36:44)
