4K@60 DP 1.2 CAT.5 KVM Extender
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
■ Uncompressed Ultra HD digital video, audio over standard CAT.5e cables with RJ-45 connectors
■ Video Resolution supports up to 2160p@60Hz over two CAT.x cables
■ 4K resolution can be extended up to 50 meters
■ Supports Power-over-Cable with single-side (TX or RX) power supplying
■ USB 2.0 pass-through over CAT.x cable
■ Compatibility with full speed USB 2.0 devices: webcams, USB flash drives, keyboard, mouse, etc
■ Supports HDCP specification and various Digital Audio Formats: LPCM and Dolby Digital/
Dolby Digital Plus/DTS/Dolby TruHD/DTS-HD bit stream
- Description

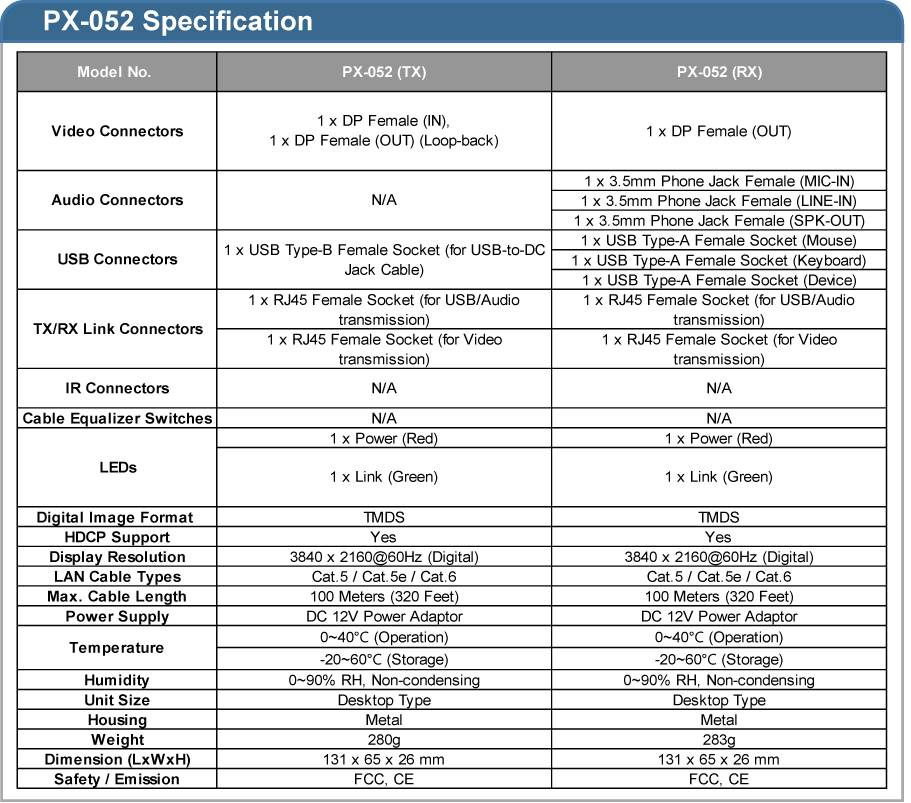

- Specification
- Download

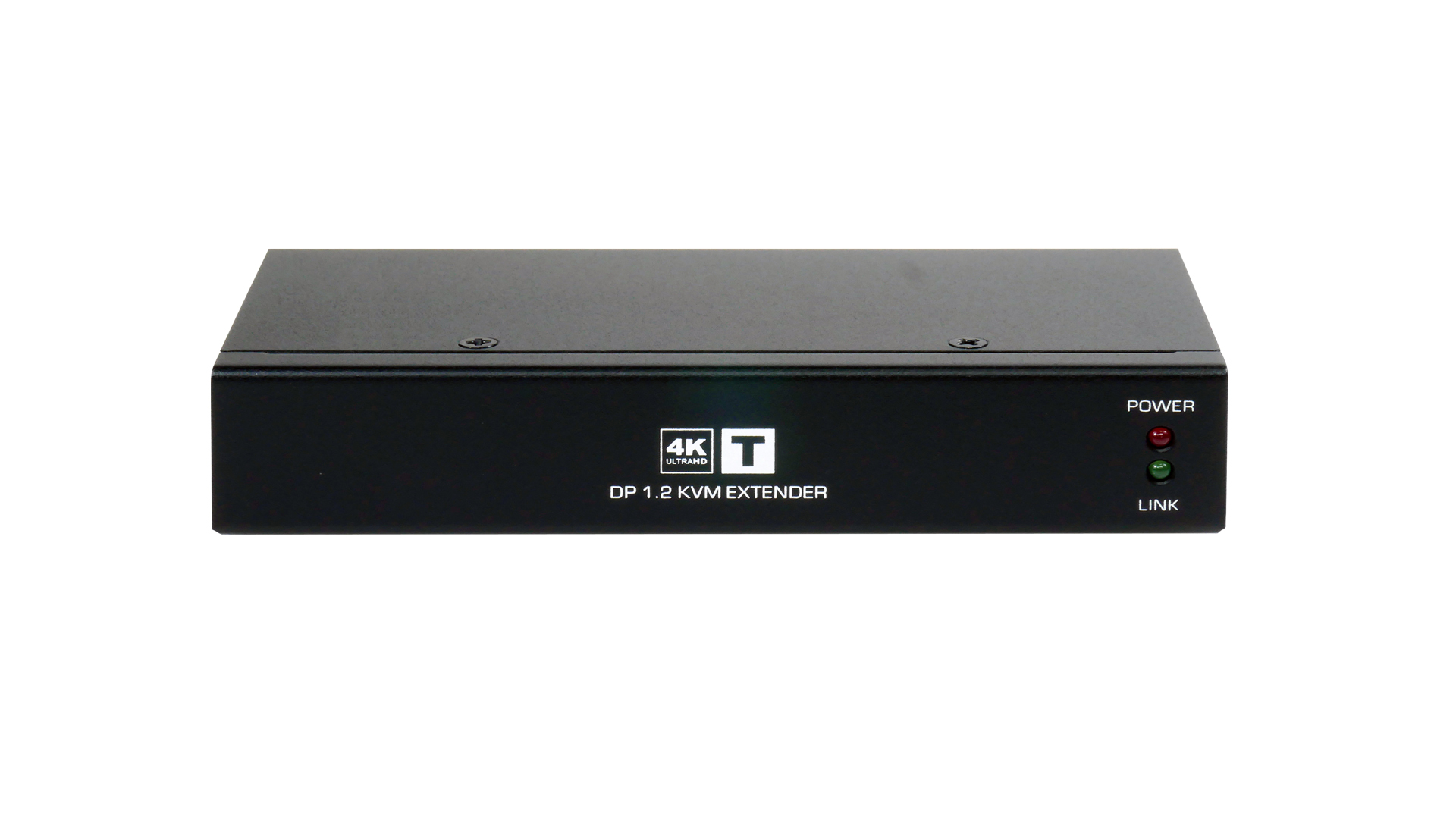

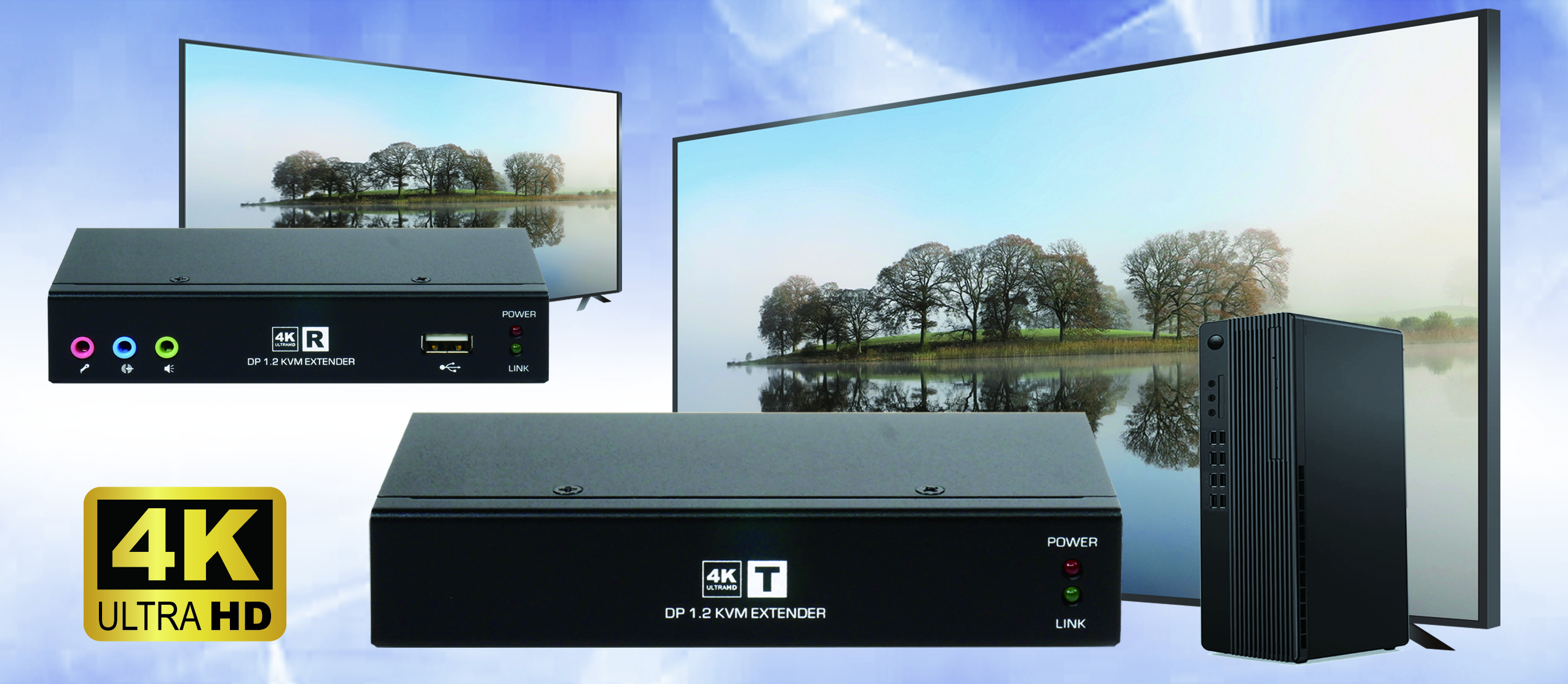

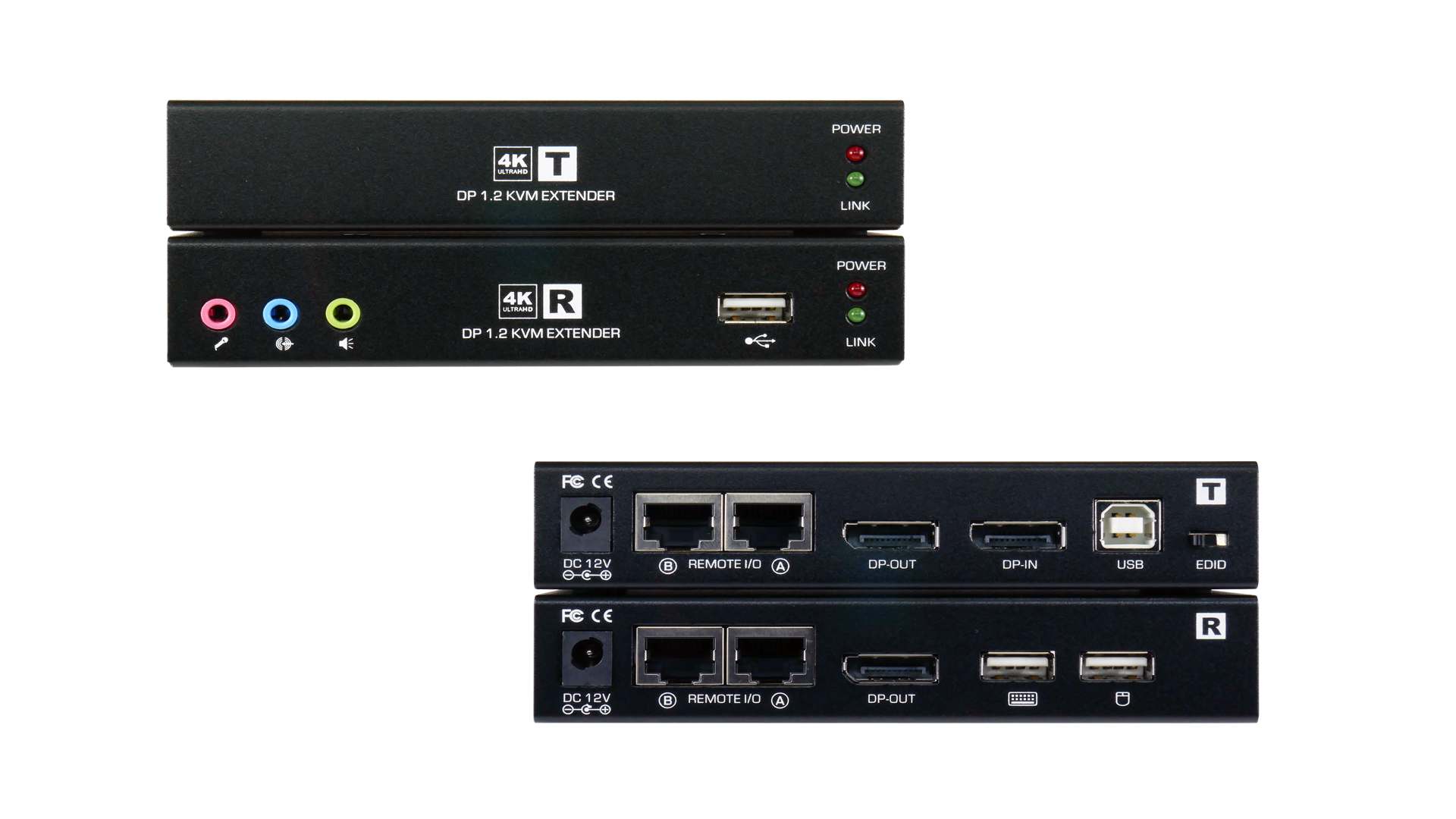

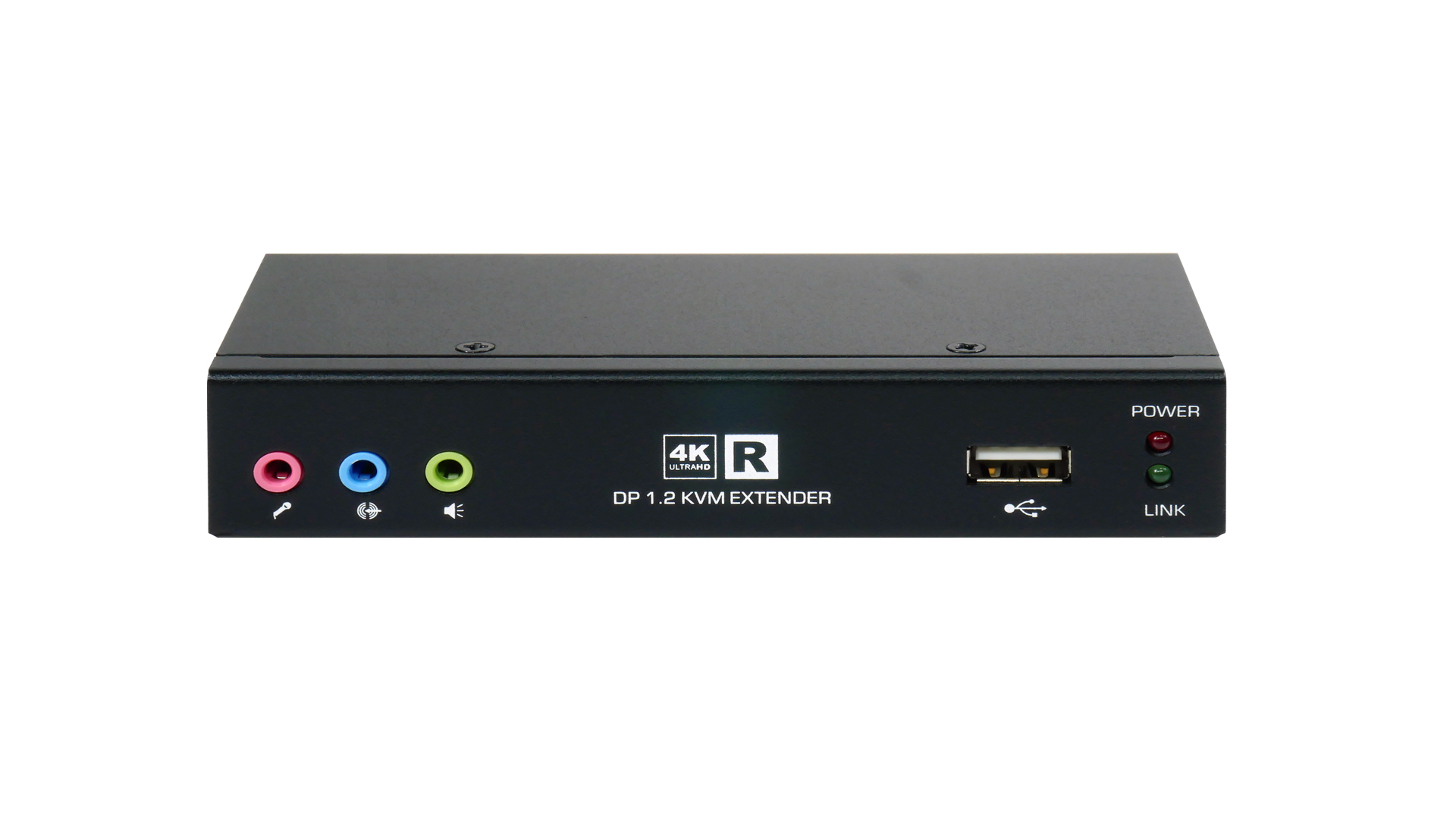

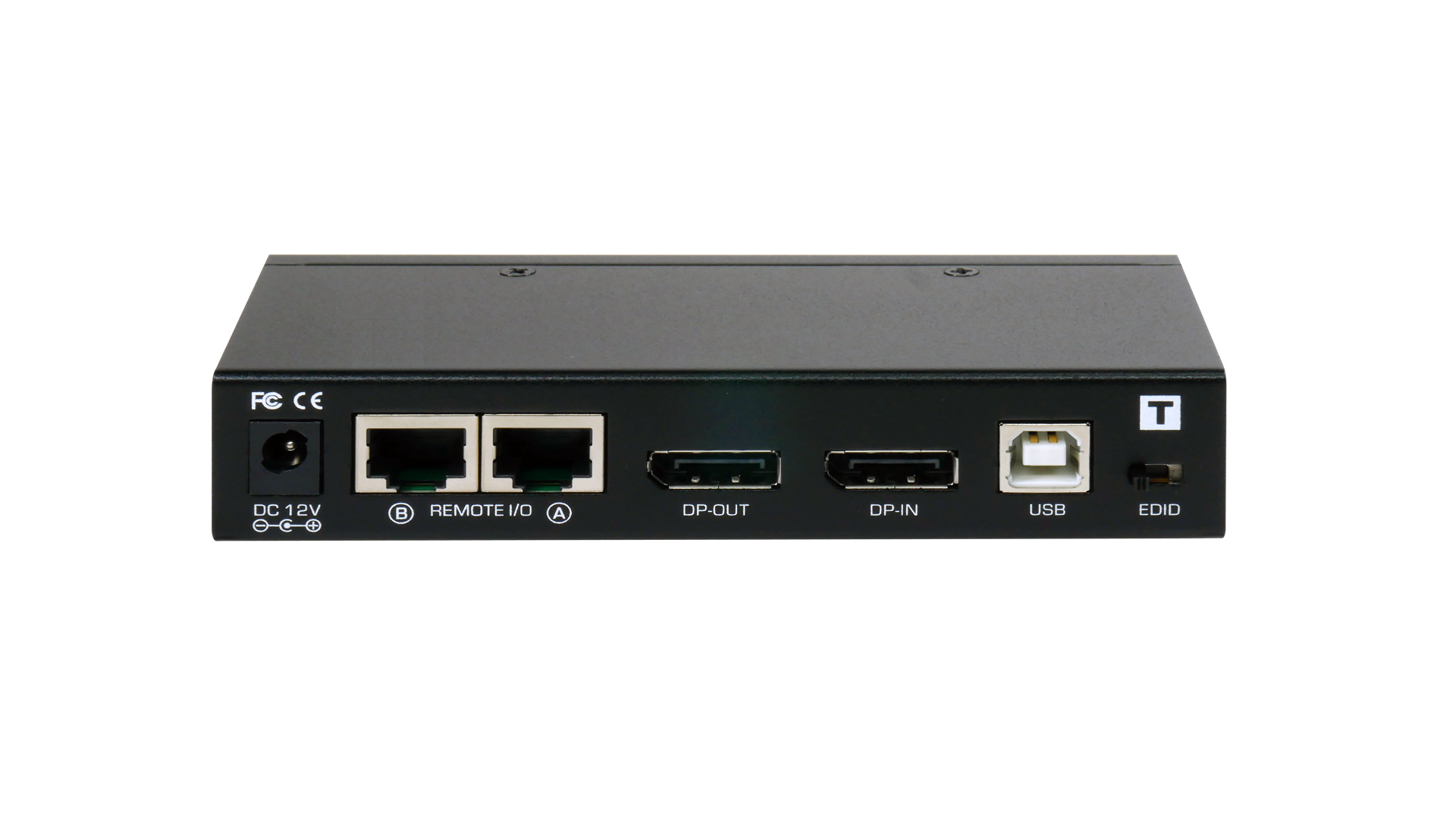

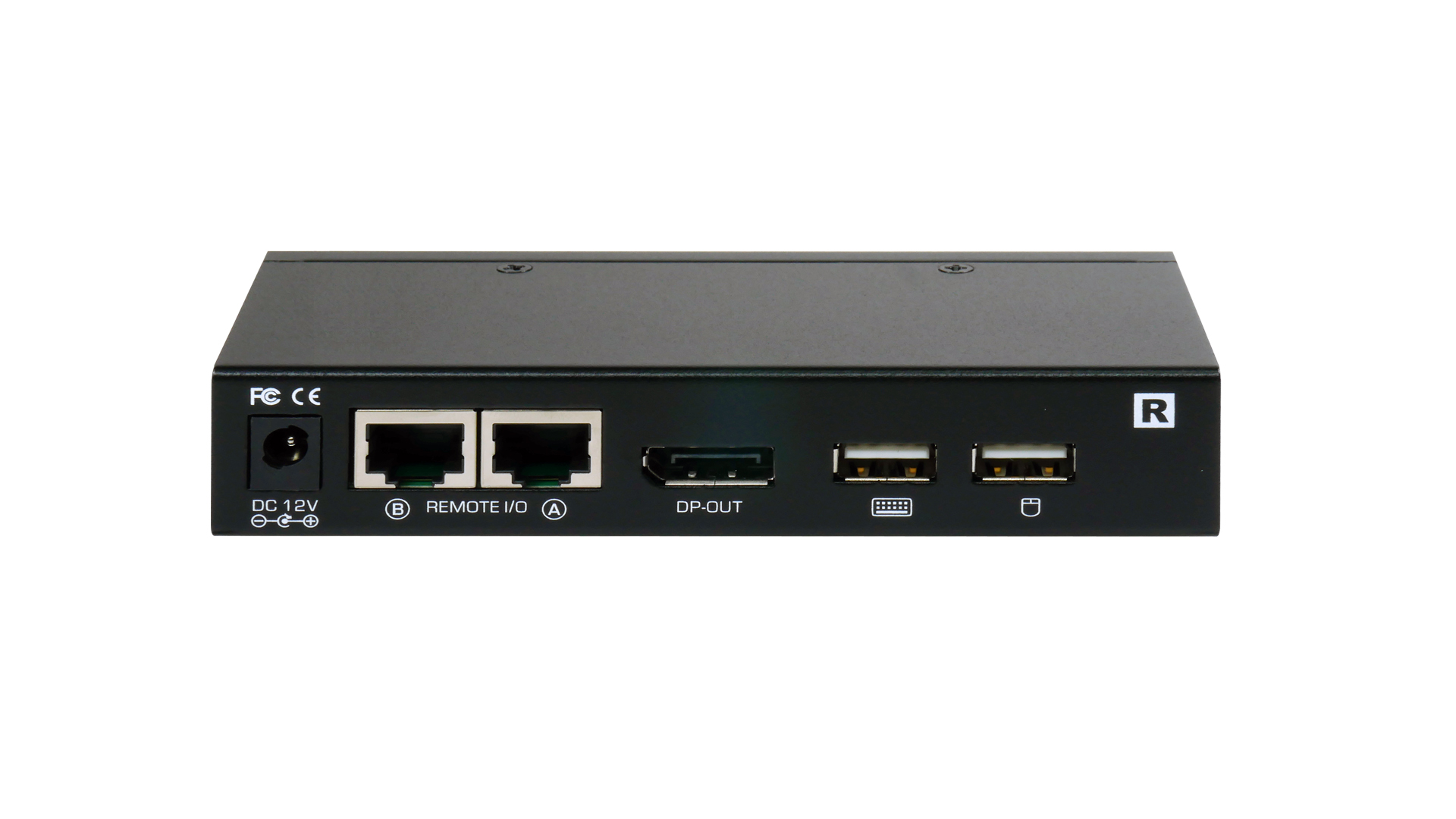

The PX-052 DP 1.2 KVM Extender is a CAT.x-based extender whch works in pairs (TX unit and RX unit) to extend signals of DP video, USB peripherals and audio(microphone and speaker) up to 100m away from your DP-enabled PC source using two CAT.5e cables. It means that the user can remotely access and control the linked DP-enabled PC at the local site. High quality image delivery is one of brilliant features of this extender. The supported video resolution can be up to 2160p@60Hz. It’s a perfect solution applied to exhibition rooms, working floors, medical buildings, control center, or other mission-critical scenarios.
