UDT-R02

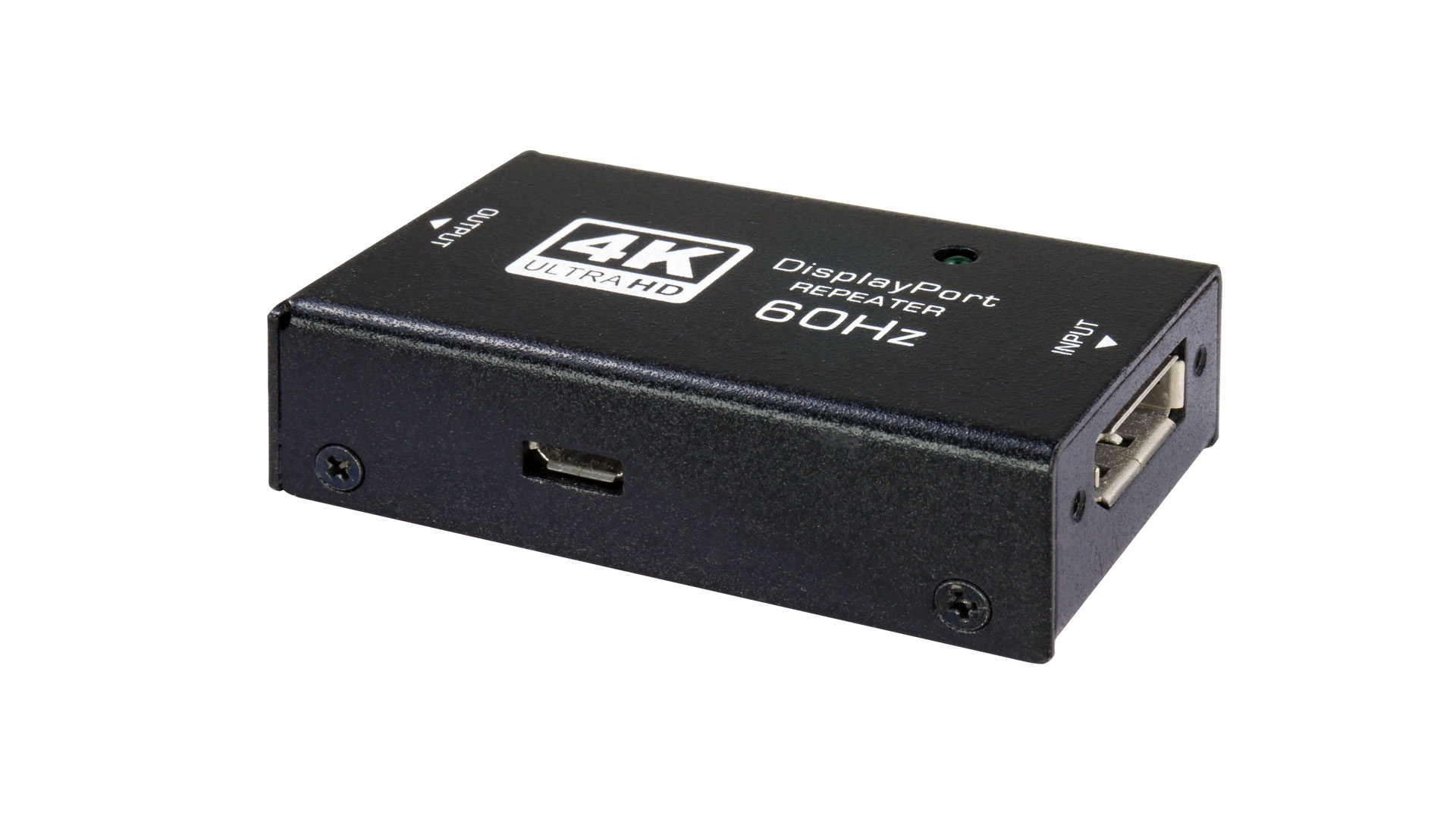

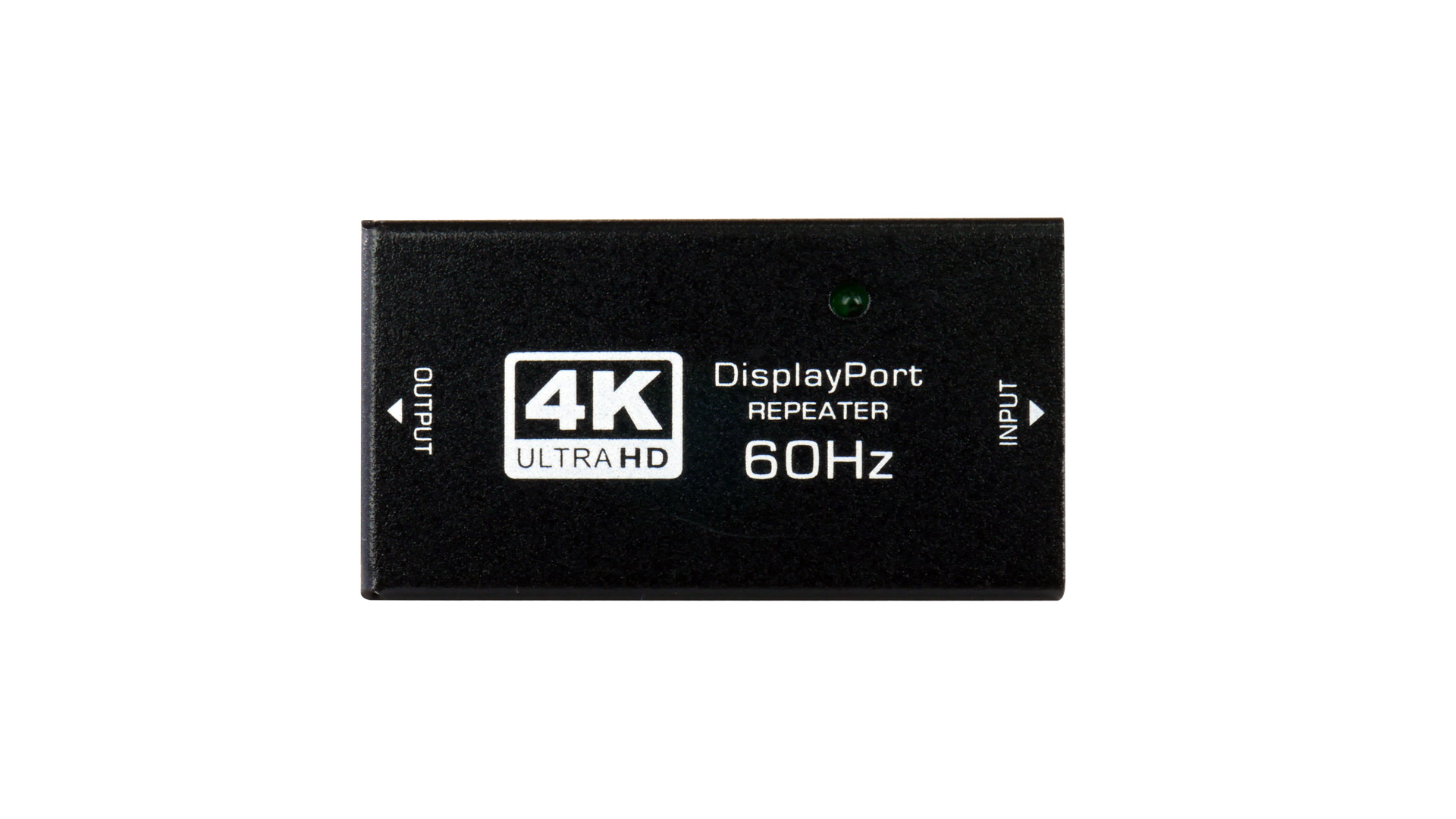

4K/UHD DP/DP DisplayPort Mini Portable Repeater, 4K@60Hz/2160P
4K/UHD DP/DP DisplayPort Mini Portable Repeater, 4K@60Hz/2160P
.jpg)
.jpg)
.jpg)

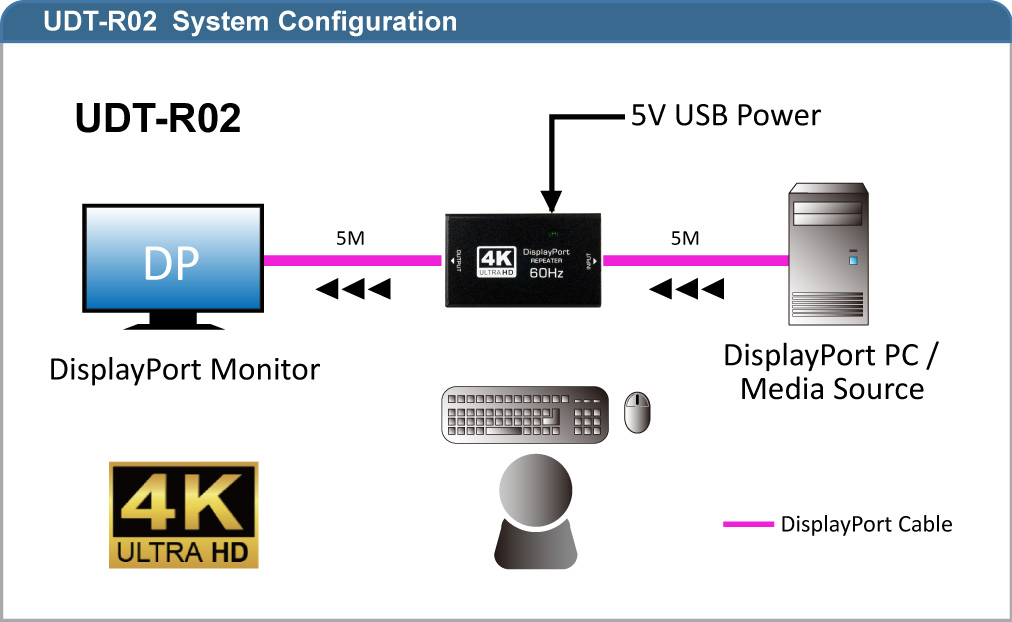

- 4K DisplayPort repeater/ extender/ converter with 1-Port DP input & 1-Port DP output
- Allow a DP display to show the DP source
- Compliant with DP-enabled media source and DP displays
- Support DP true 4K 60Hz, ultra high definition (UHD) and HDCP
- Max resolution up to 4K@60Hz/ 2160P
- Support HDCP 1.4/ 2.2, DisplayPort 1.2
- Supported video format: 408p/ 576p/ 720p/ 1080p/ 2160p resolution
- Built-in equalization control to adjust the video image
- High quality Dolby Atmos audio supported
- Supported audio format: DSD/ Dolby TrueHD/ DTS-HD master audio, Dolby Atmos, Dolby-AC3, LPCM7.1
- Use with wide-variety of DP-enabled source and DP display, computers, HDTVs, satellite receivers, DVD/ Blue-ray players, game consoles, etc.
- Power LED indicator for easy status monitoring
- Simple Plug-and-play, mini compact design and no extra software needed
- Power by micro-USB cable for added convenience
- 30m maximum length connection (10m input / 20m output) (*Poor cables and graphic cards might cause shorter distance supported)
Description
- Description

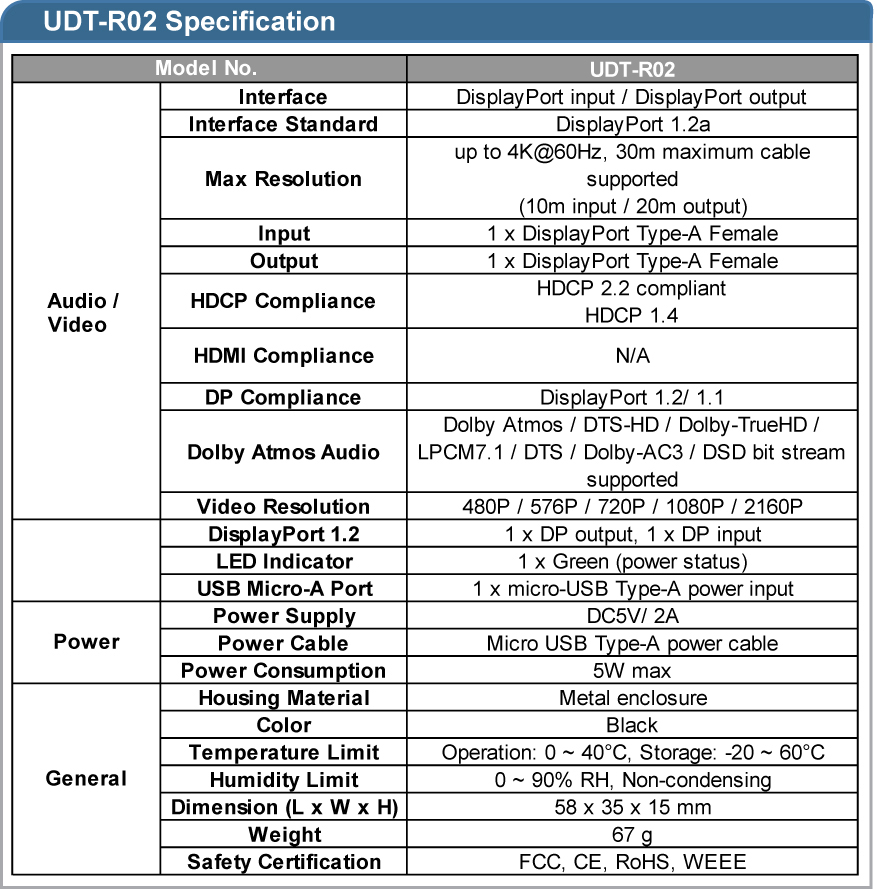

- Specification
- Download
UDT-R02 DATASHEET
(2024/06/21 14:49:46)
Video Adaptor Comparison
(2024/06/21 14:49:46)
