- 2-user x 8-port CAT5 Matrix KVM switch [UKS-2825D]
- TWo independet Consoles for concurrent access of two computers by each of the two admins
- PS/2 and USB interface support on console side
- Dual Interface support for PS/2 and USB interface connections on computer side (using different dongles).
- OSD Menu Control for unit configuration and switching operation
- Hotkey sequence configurable [Scroll Lock, CAPS, Num, F12]
- CAT5/CAT5e/CAT6 UTP cable for KVM signals transmission
- Cabling distance up to 30M

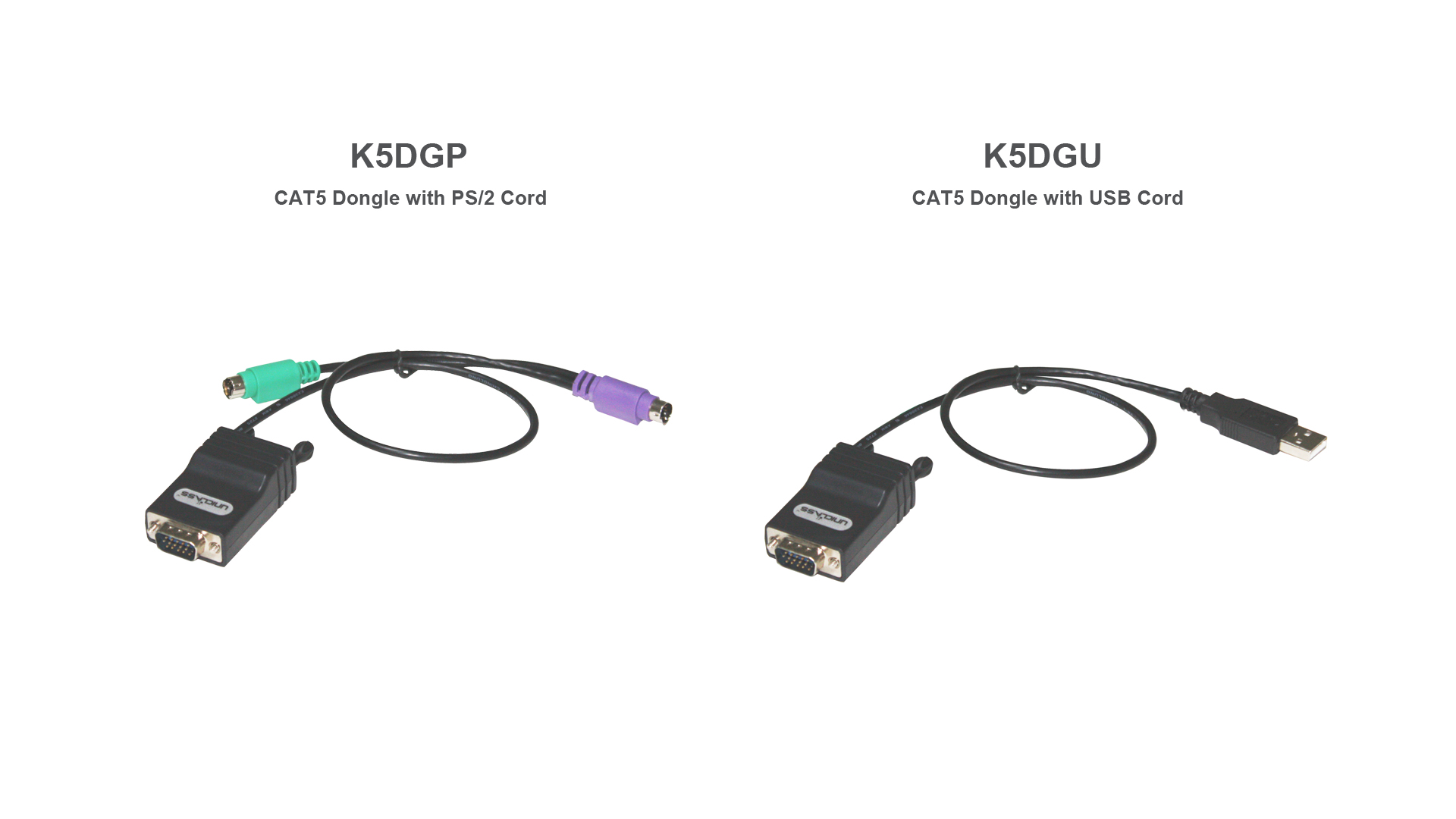

- Utilize Computer dongles for connections with computers
- Port selection and operation using keyboard hotkeys and OSD Menu

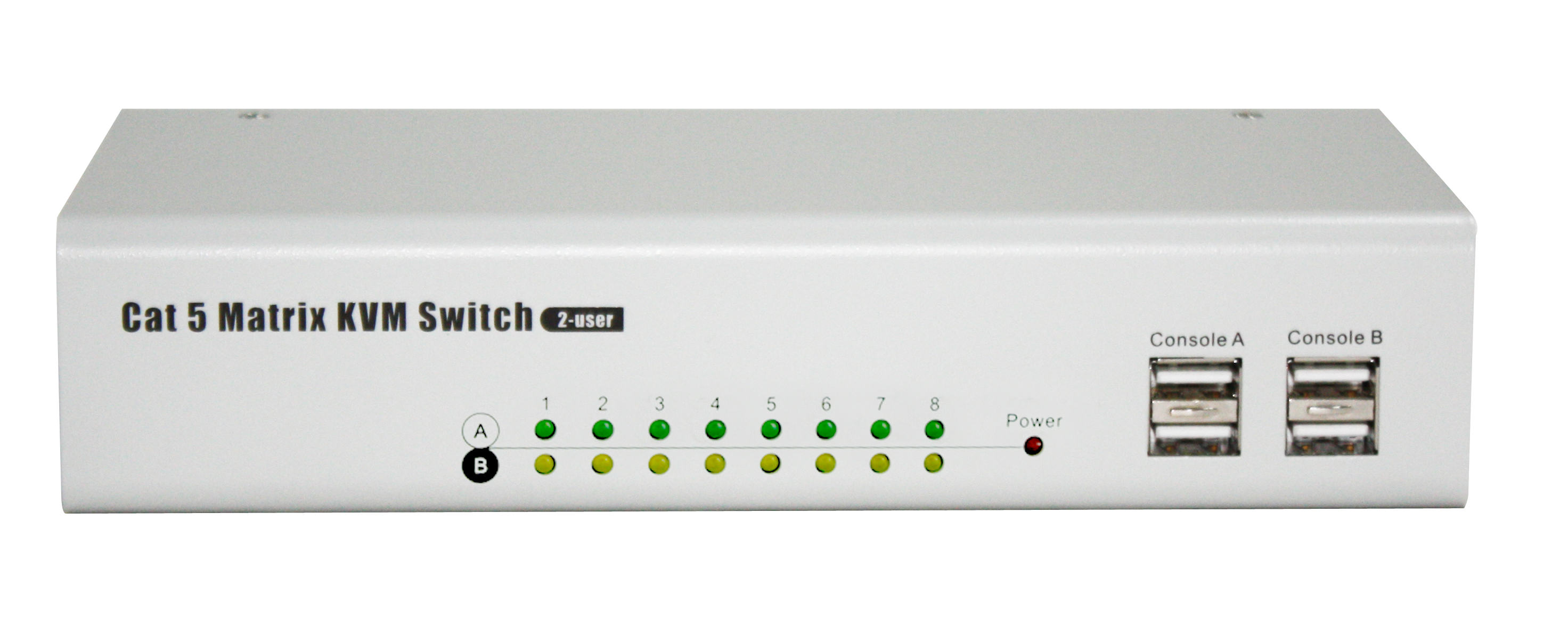

- Port LED indicators to show the Active Port status for each console
- 19” rack mount design with metal enclosure for best shielding and protection
- Support for Windows 95/98/SE/ME/2000/XP/Server 2003/Vista/Windows 7, Linux, Mac and Sun
- Description

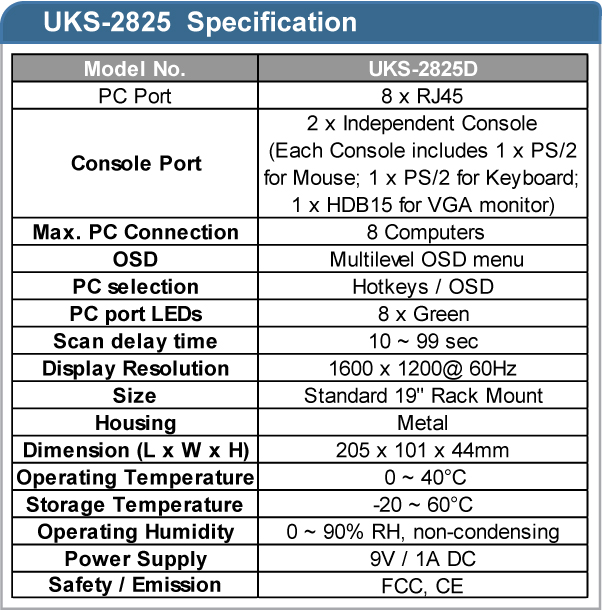

- Specification
- Download

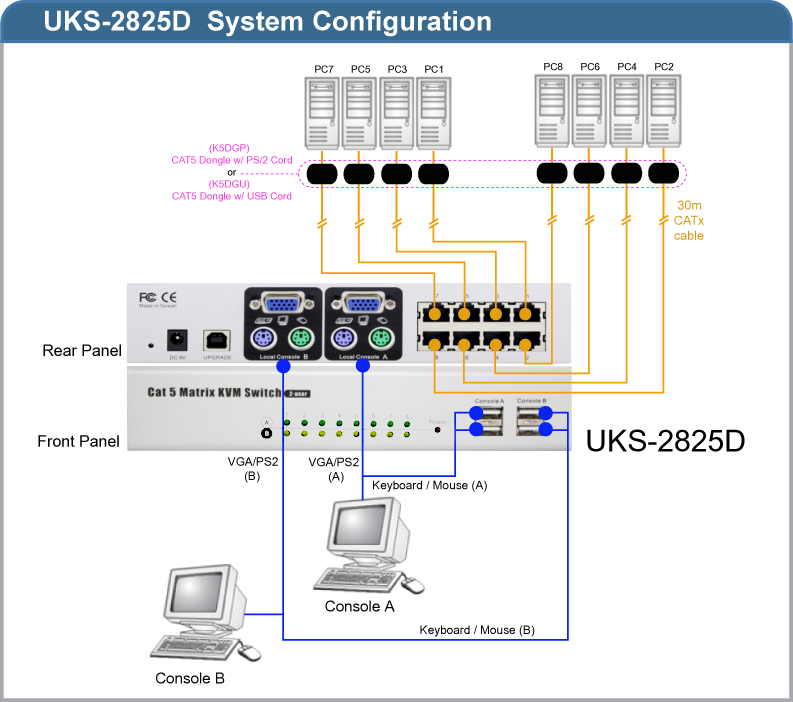

The UKS-2825D CAT5 Matrix KVM Switch is a cost-effective implementation of the CAT5 KVM Matrix-Switching Technology in small enterprise scenario. The UKS-2825D is designed to fulfill the needs to be more flexible and more effective in modern server management within small enterprise scenario. It allows two users to access any of the eight computers, each using one of the two local consoles.
Firmware upgrade for easy synchronization of all firmware on KVM switches and computer modules
The Firmware upgrade feature provides an easy way to manually upgrade your firmware to the latest version available on the CAT5 KVM switch main unit as well as on individual dongles. This can reduce the time and efforts spent to keep the whole system updated in
good shape.
Neater and more pliable CAT5 cabling to save cabling nightmare
Due to higher and higher density of servers within corporate server rooms or data centers, server admins face an even more aggravating problem of cabling clutters when connecting servers to the KVM Switch, using only the conventional KVM combo cables. This CAT5 Matrix KVM Switch is a neat solution to save all the cabling troubles for you as it utilizes CAT5/CAT5e/CAT6 UTP cables as carriers of the KVM signals in lieu of the often cumbersome conventional KVM combo cables. There are no more cabling clutters to thwart server rack backside access, and owing to much longer distance of cabling, administrators can also manage to integrate any computers that are within the reach of 100 Meters CAT5 cabling.
