8-Port HDMI 2.0 Multiview KVM Switch with 4 HDMI Video Outputs
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
• 8-Port HDMI 2.0 KVM Switch with 4 display output
• Allow 4 displays to switch freely from 8 HDMI-enabled PC video sources
• Mouse roaming operation for Matrix-view Mode and Grid-view Mode
• Seamless switching between input channels and combined
• Support HDMI® signals with Deep Color and HDCP compliant
• Support input and output resolution up to 4K 2160p@60Hz
• Support upscaling up to 4K@60Hz
• Support layout configurations
• Various control methods including: keyboard hotkeys, mouse buttons, front panel
pushbuttons, IR remote control, and RS232/TELNET control
• Firmware upgradable via USB-B port
• HDMI technology supports Ultra High Definition Digital Video
• Status LED display for easy port status monitoring
• Buzzer sound for port switching confirmation
• Metal enclosure for best shielding and protection
• Support Windows 7/10/11, Linux and Mac OS
• Multi-platform support for PCs and Macintosh
- Description

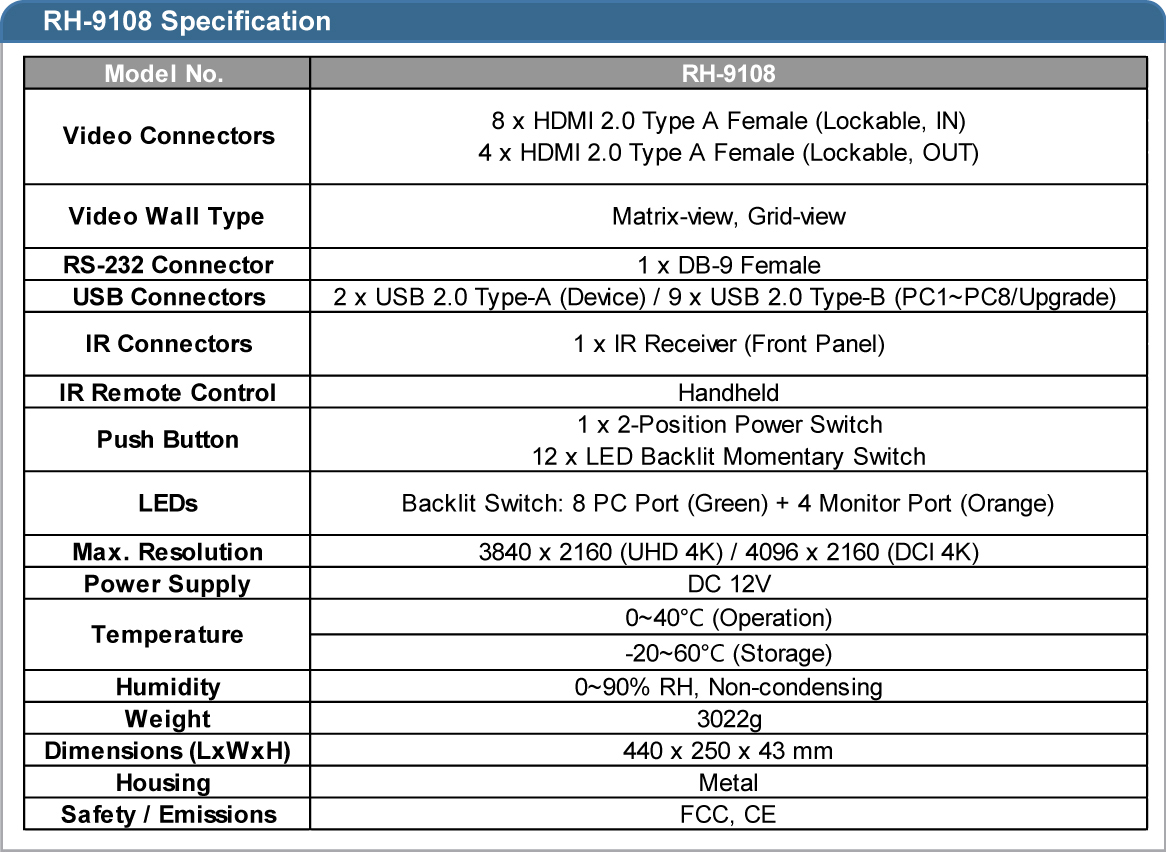

- Specification
- Download

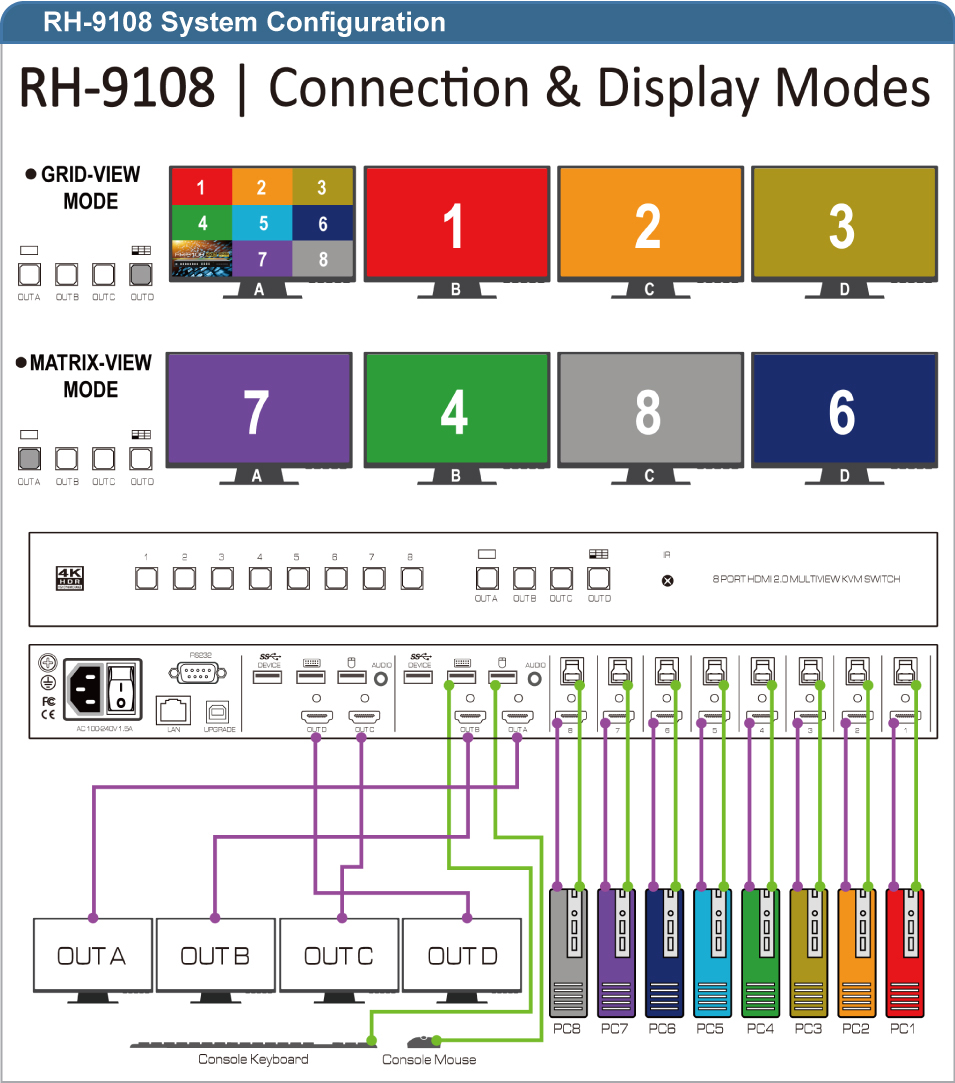

The 8-port HDMI 2.0 Multiview KVM Switch RH-9108 is a standalone device designed to meet the demands of high-performance and multitasking markets. It enables users to simultaneously manage up to 8 PCs and offers two operational modes: Grid-view Mode and Matrix-view Mode. Both modes support direct cursor border crossing PC control over 4 monitors (1A/1B/2A/2B) in Matrix-view Mode, including the grid-view-window border crossing PC control on monitor 1A in Grid-view Mode.
The 8-port HDMI 2.0 Switch offers a video bandwidth up to 1.65Gbps, supporting a resolution of up to 4K@60Hz. With IR remote control, it allows 4 HDMI-enabled display to freely switch between 4 HDMI video sources simply by tapping the panel button or using the IR remote control. The ultra-high-definition image quality provided by HDMI 2.0 technology remains crisp and clear throughout. It is the ideal solution for UHD content display and multiple PC management.
