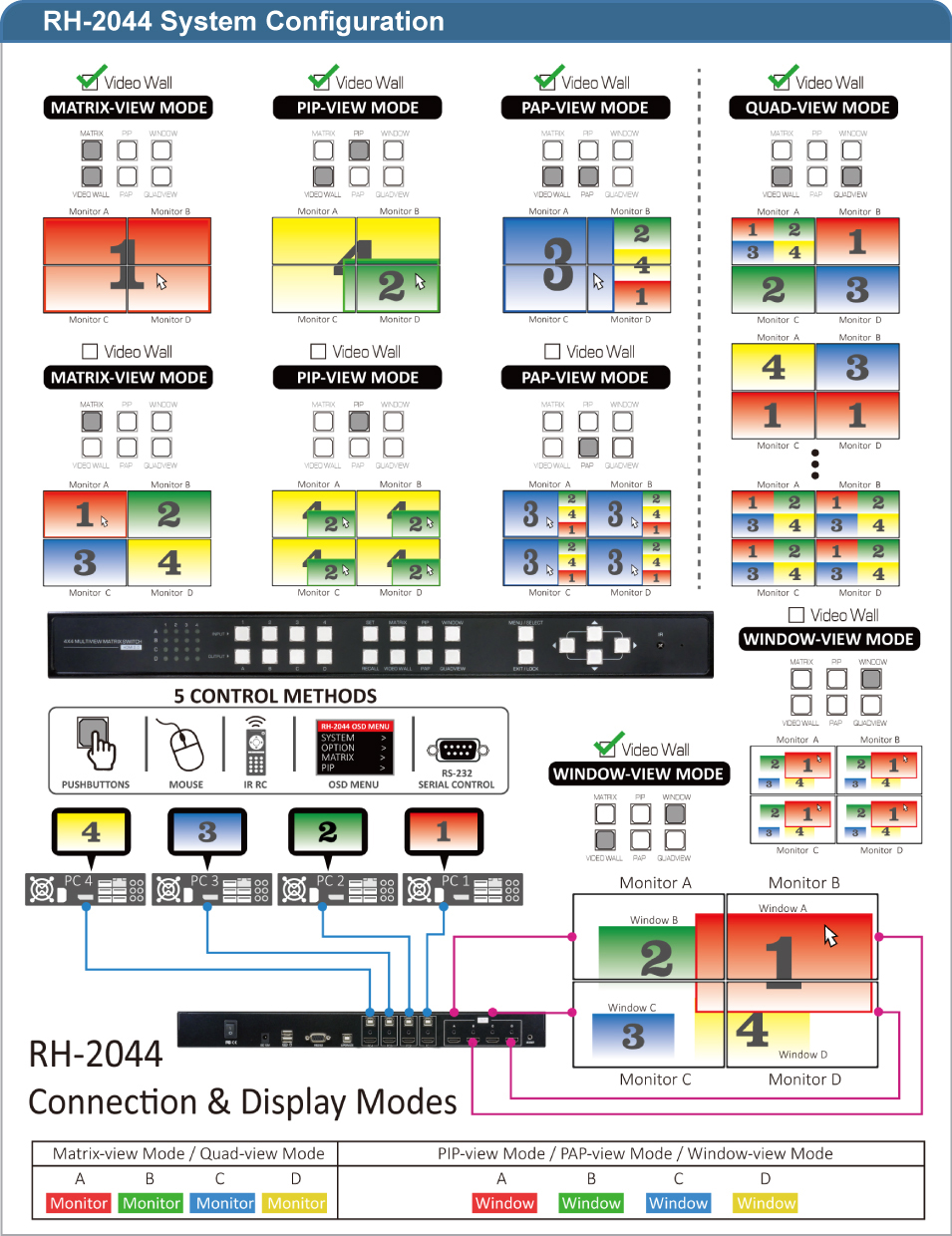

The 4 x 4 HDMI 2.0 Multiview Matrix KVM Switch RH-2044 is a comprehensive HDMI 2.0 KVM multiview solution. It allows users to flexibly arrange four 4K HDMI PC resources

and exhibit them on four 4K UHD monitors in multiple viewing modes, such as Matrixview, PIP-view (Picture in Picture), PAP-view (Picture and Picture), Quad-view, and

Window-view. The Matrix-view mode supports any PC resource to any monitor connection. The PIP-view/PAP-view modes support PC resource swapping function

by intuitive drag-and-drop mouse operation. The Quad-view mode supports viewing four PC resources on any of the four monitors. In Window-view mode, the window

position and size can be freely adjusted to fit user's requirements. In addition, a Window Partial Cropping function is provided in Window-view mode to display a

specific part from a full-screen video content, which gives more flexibility for a freestyle layout. The Matrix-view, PIP-view, PAP-view, and Window-view modes are all

applicable for manual video-wall presentaions. Each input video source of the unit can be independently scaled up/down. Video Source Switching or Display Mode

Switching doesn't have major delays or black screen. Therefore, RH-2044 is absolutely your perfect KVM solution for PC-resource Switching, Splitting, and Broadcasting

applications.
