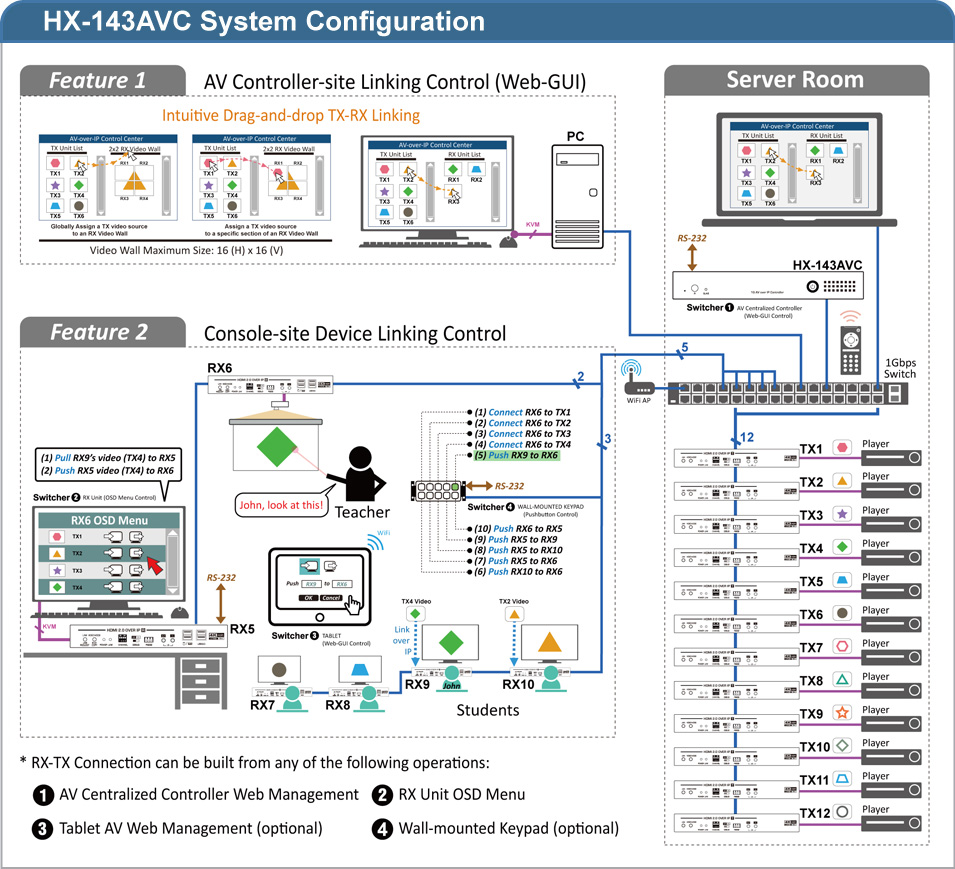

The HDMI Virtual Matrix A/V over IP System built by HX-143AVC/HX-143T/HX-143R is a revolution in audiovisual technology that redefines the way people manage and distribute multimedia content. It perfectly extends Video/Audio/IR/RS-232 access to remote multimedia players/computers with impeccable 4K UHD video quality and nearzero latency over a Gigabit LAN (Local Area Network). The system supports encrypted H.264 digital streaming up to 3840x2160@60Hz display resolution. The Virtual Matrix A/V over IP centralized controller HX-143AVC controls the access authorization of all the HX-143T transmitters for HX-143R receivers dispersed throughout the same LAN environment. It supports Intuitive Drag-and-drop operation for connecting TX and RX units in its Web Management Interface. It is especially adaptable to quickly build up a powerful A/V distributing system in various applications like broadcasting, educational institutions, and many other industrial fields. Advanced functions of this system including Optical SFP Transmission, Grouped Switching, Video-wall Configuration, and Console Collaboration have brought high flexibility and convenience to make your system a versatile one.

The centralized controller HX-143AVC further supports 3-tier User Permission Management, allowing the authorization of different users to operate this system. Other optional accessories, such as wall-mount keypad and control tablet are also available for operating the system either via RS-232 or the LAN, to enhance the user experience in terms of convenience and flexibility.
