US-344M
4x4 USB 3.2 Gen 1 Matrix Switch w/ Web GUI and RS-232 Control
4x4 USB 3.2 Gen 1 Matrix Switch w/ Web GUI and RS-232 Control
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
- 4x4 USB 3.2 Gen 1 Matrix Switch to share 4 USB peripheral devices between 4 USB host computers
- USB 3.2 Gen 1 connectivity standard with USB 2.0/1.1 backwards compatibility
- Up to 5 Gbps ultra high speed data transfer rates
- Each USB Type-A connector supports up to 900mA output current for the connected USB peripheral device
- Web-based GUI to setup the unit and related device-host assignments
- 1 IN / 1 OUT configurable GPIO pinout for interacting with external circuits
- Multiple control approaches including panel pushbuttons, IR, TCP/IP and RS-232
- Beeper for indicating a confirmed operation
- Metal enclosure guarantees a better electromagnetic shielding performance
- No driver or software needed
Description
- Description

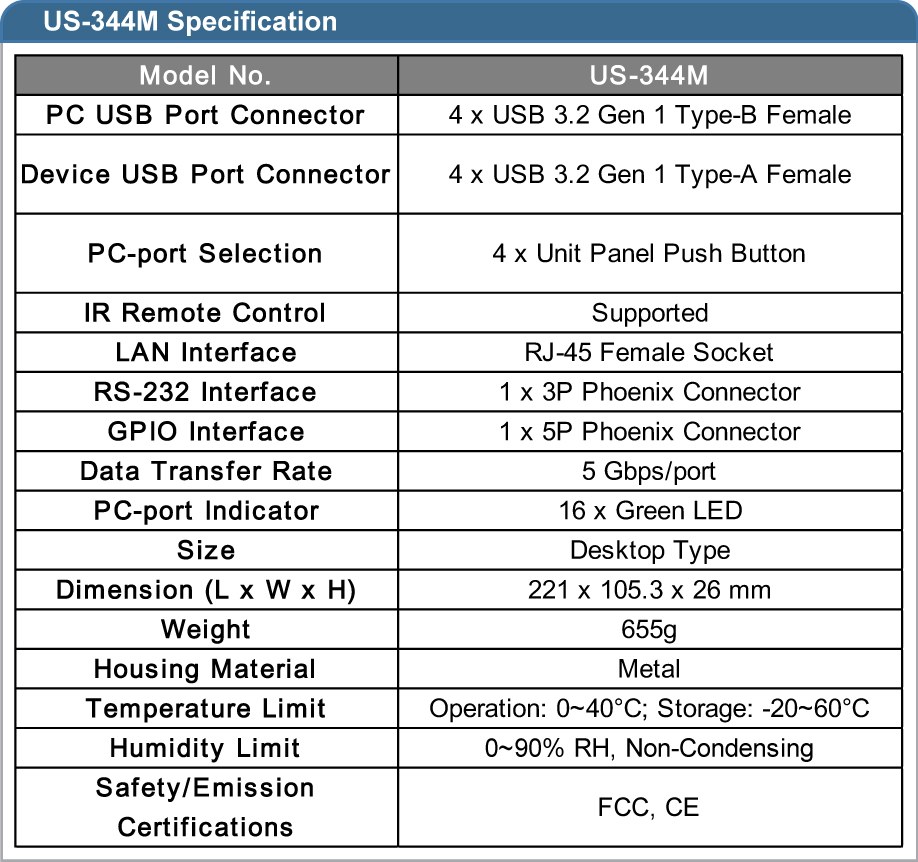

- Specification
- Download
The US-344M 4x4 USB 3.2 Gen 1 Matrix Switch is designed specifically for sharing 4 USB peripheral devices with 4 USB host computers. With US-344M, you
may connect up to 4 USB 3.2 Gen 1 high speed USB devices, such as flash drives, webcams, video adapters or printers, to any USB host computers by simply
pressing its front panel SELECT pushbuttons, using the built-in Web GUI, or sending advanced RS-232 telnet commands.
