PG-140

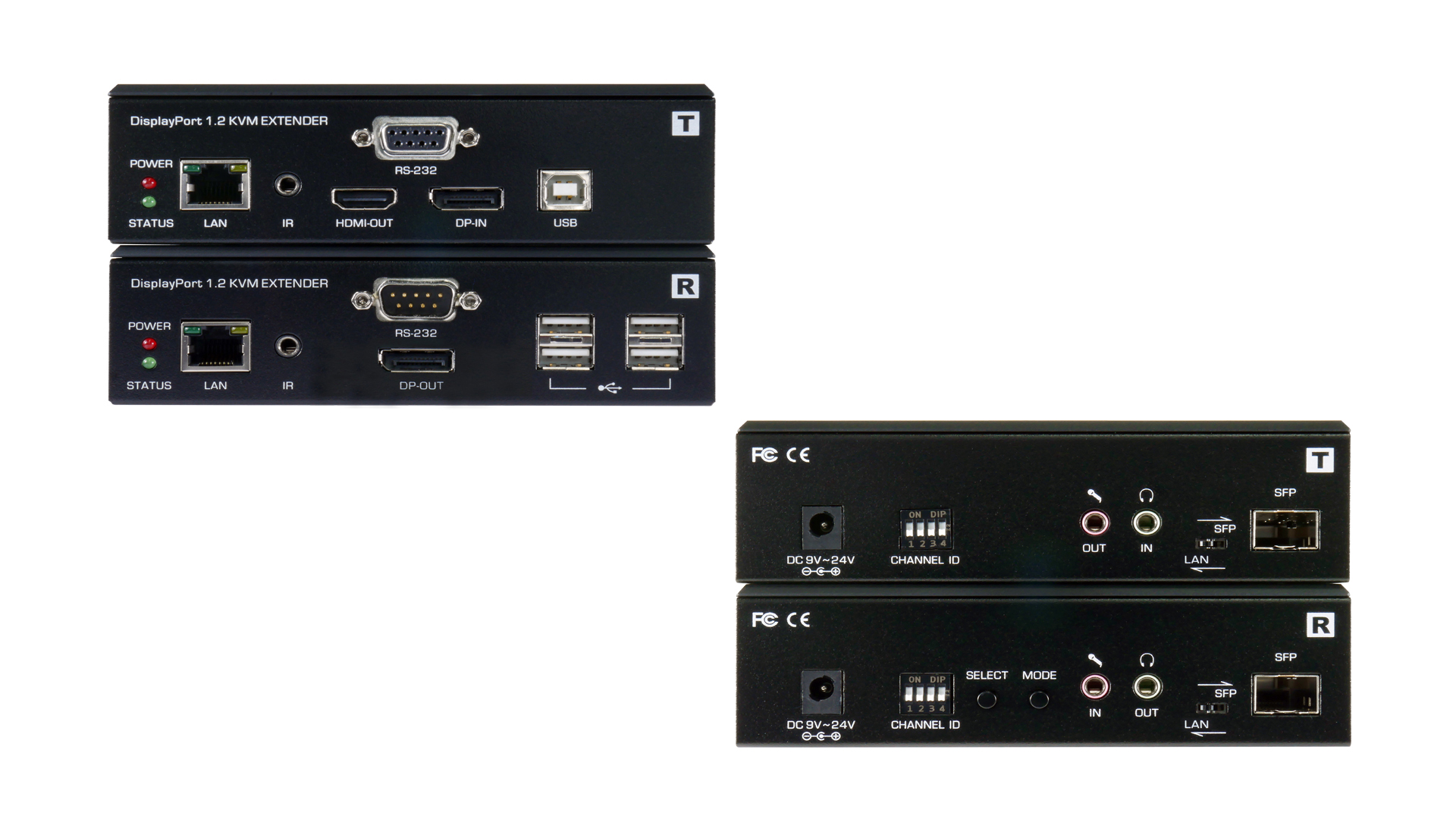

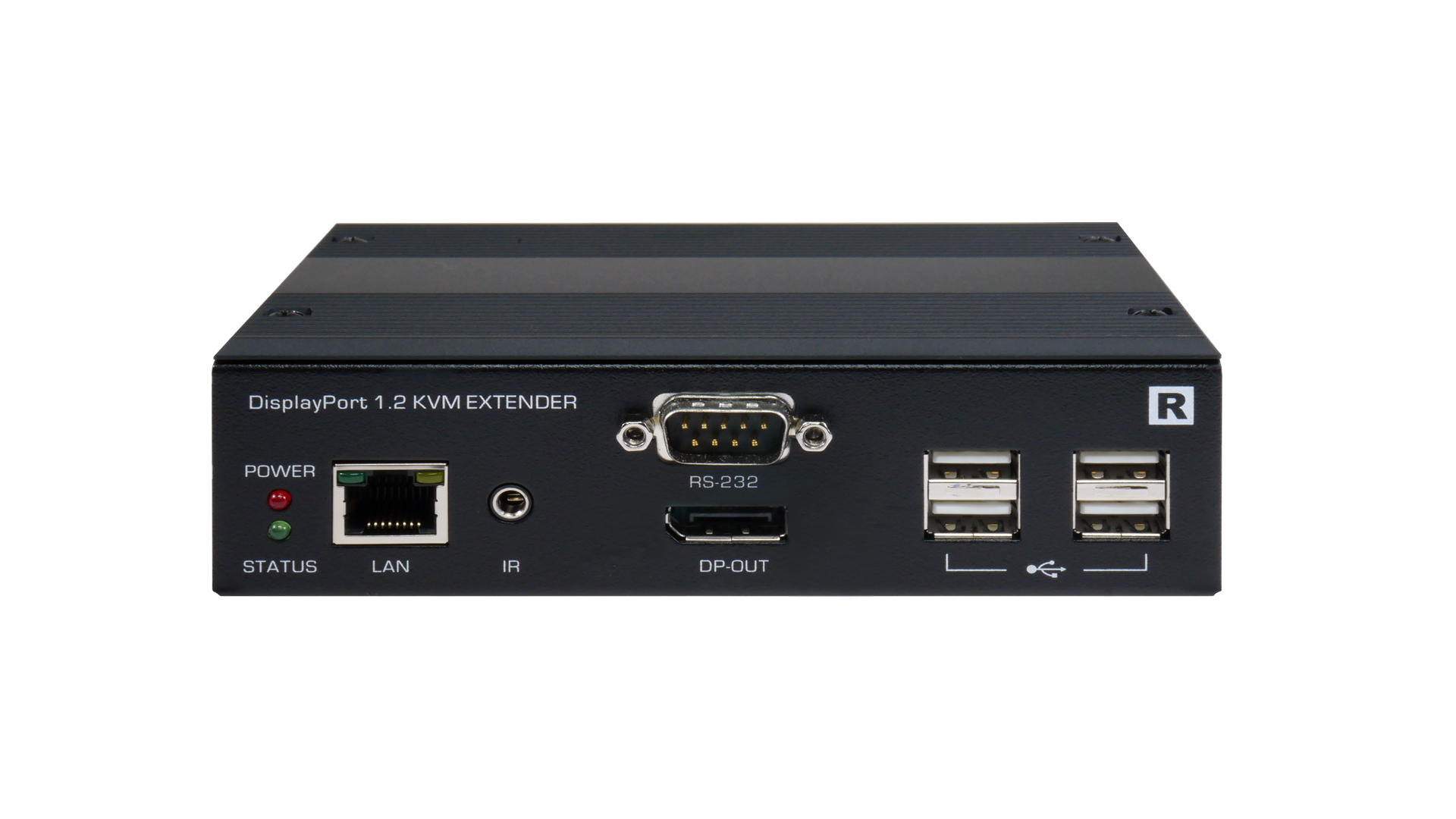

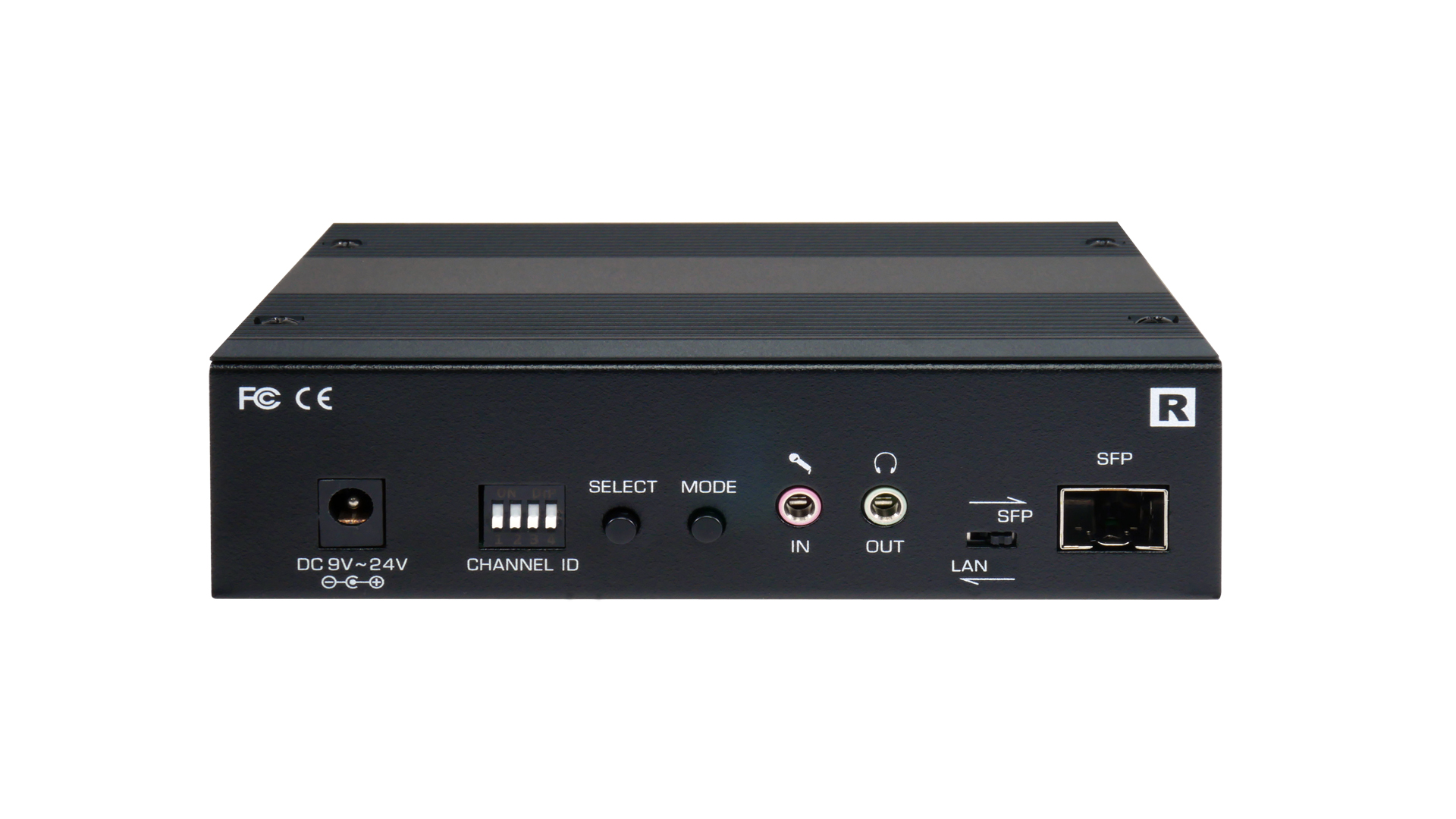

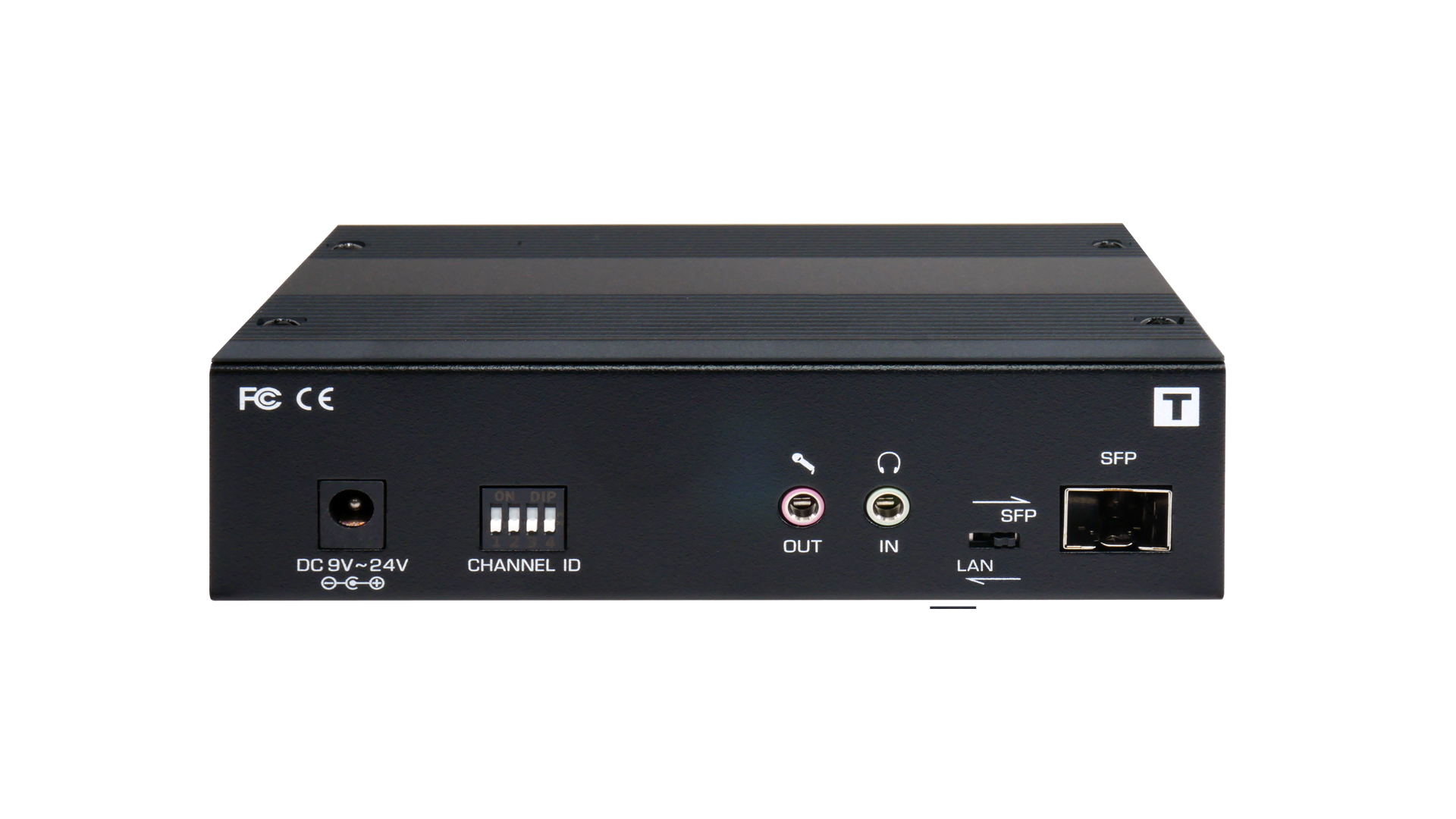

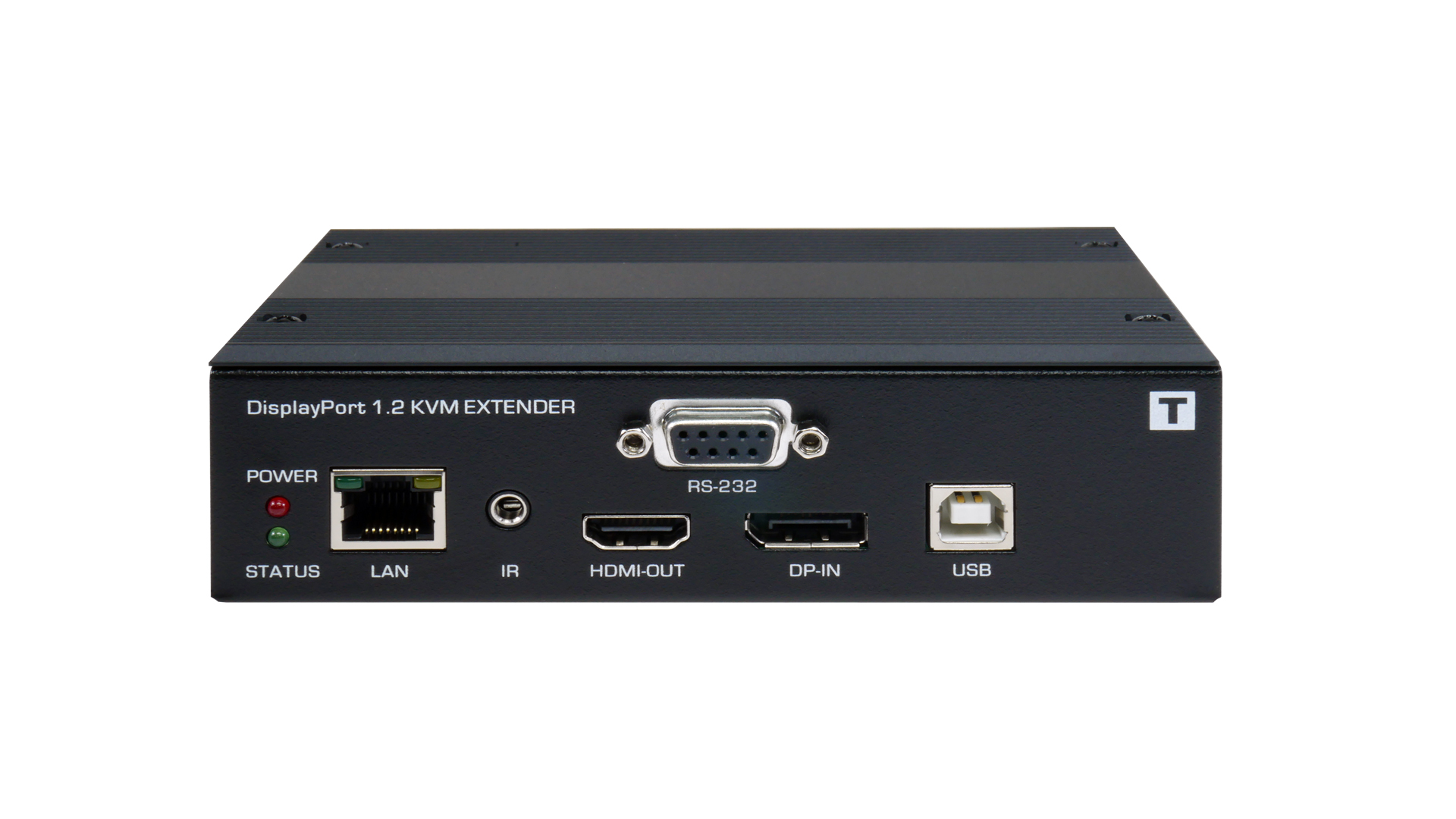

DisplayPort 1.2 KVM Extender over IP
DisplayPort 1.2 KVM Extender over IP
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
- Ultra HD digital video & digital audio over a CAT.X cable with RJ-45 connectors or over an optional fiber-optic cable & module with SFP sockets.
- Video resolution supports up to 3840 x 2160@60Hz
- Supports HDCP 2.2 standard
- Extension distance can be up to 100 meters with CAT.X cable or up to 200 meters with an Ethernet network switch
- USB 2.0 pass-thru over LAN
- Compatibility with full speed USB devices: webcams, USB flash drives, keyboard & mouse
- Supports 7.1 ch Audio or more (LPCM/DTS/Dolby/Dolby ATMOS)
- Identical video interfaces (DP 1.2) for Transmitter Input and Receiver Output
- USB 2.0/USB1.1 specification compliant
- Support Windows 7/10/11, Linux and Mac OS
- Multi-platform support for PC and Macintosh
- Status LED display for easy port status monitoring
- Metal enclosure for best shielding and protection
Description
- Description

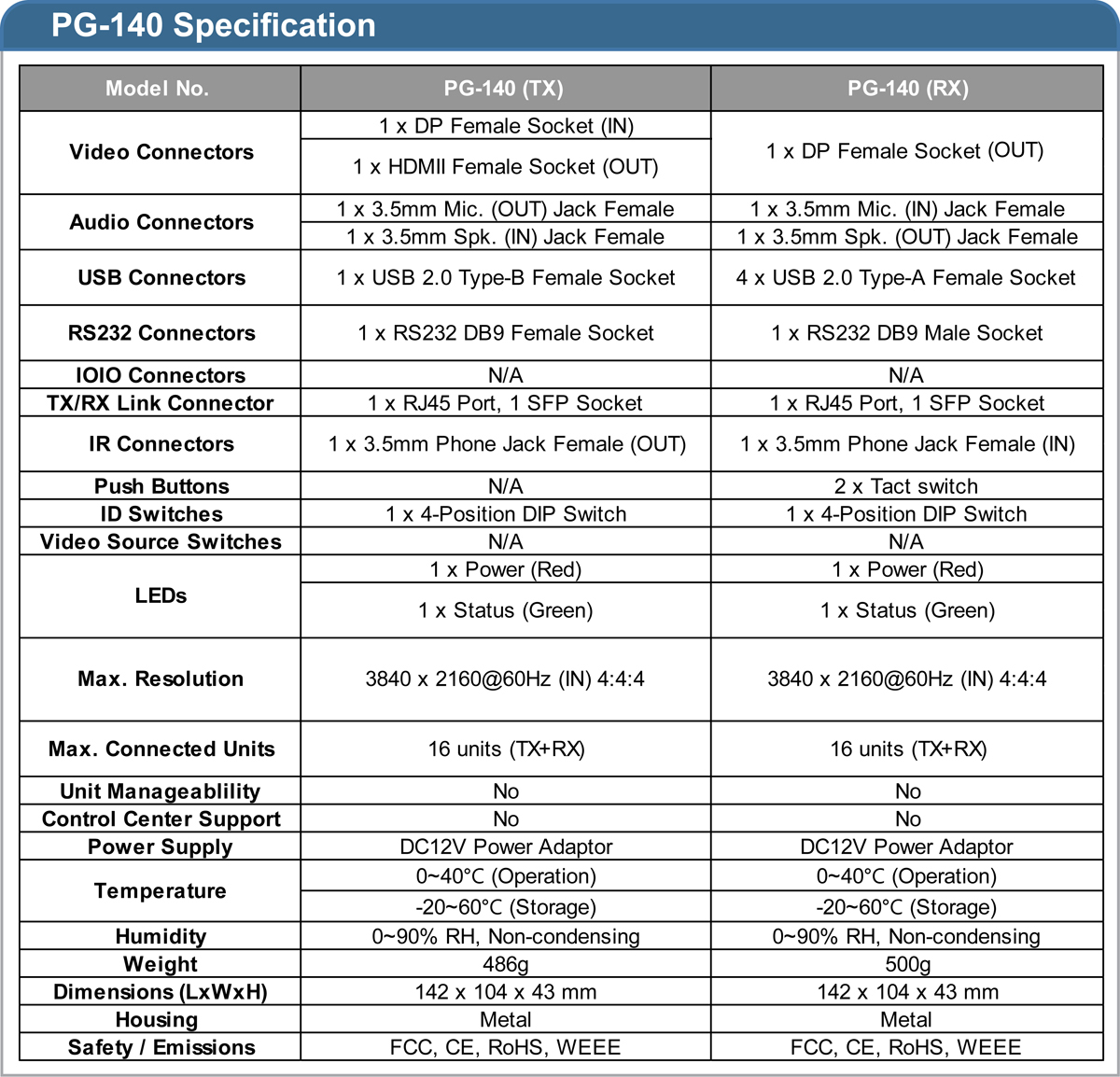

- Specification
- Download
PG-140 DATASHEET
(2024/12/19 15:36:15)
KVM Extender over IP (≥4K@60)
(2024/12/19 15:36:15)
