2 PC-port USB 3.0 Device Sharing Switch
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
- 2 computers to share 4 USB 3.0 compliant devices
- Each USB port data transfer rate up to 5 Gbps
- Compact size, light weight, and power-free
- Unified USB Type-A connectors
- Supports one dedicated USB Fast Charging Port

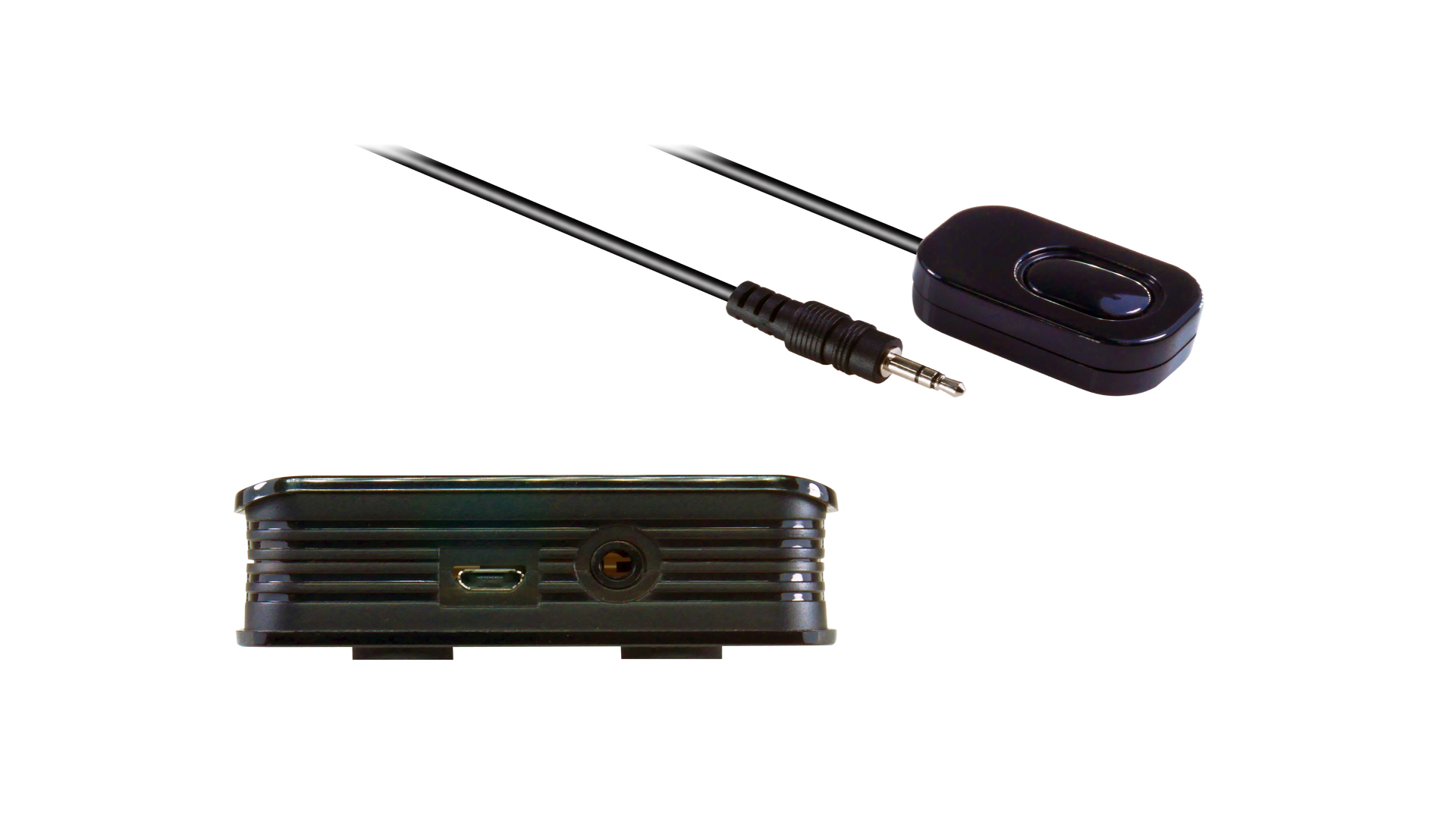

- PC-port Selection through Panel Push Button or Remote PC-port Selector
- Works with Computer, Notebook or Pad computer
- Compliant with USB 3.0, 2.0, 1.1 standards
- 2 Computers share USB devices such as: Keyboard, Mouse, Hard Drive, Printer, Webcam, Thumb Drive, Scanner, etc.
- Description

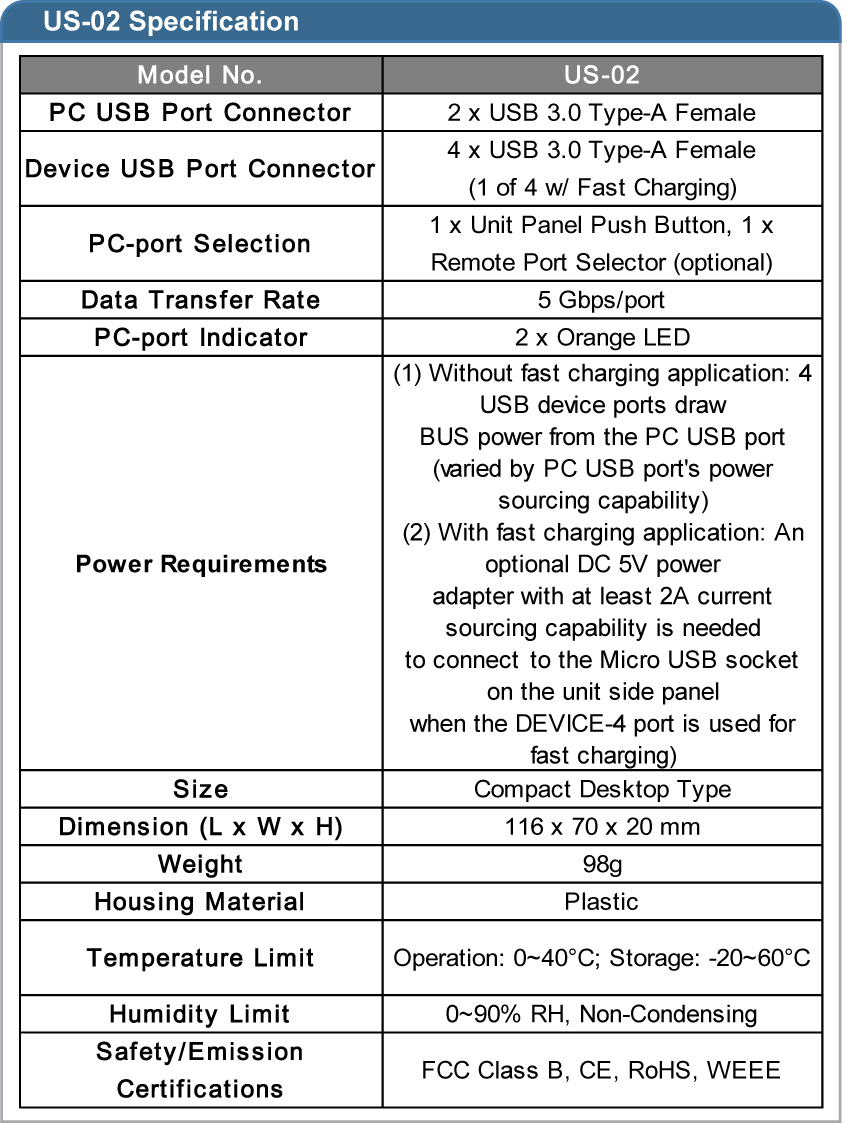

- Specification
- Download

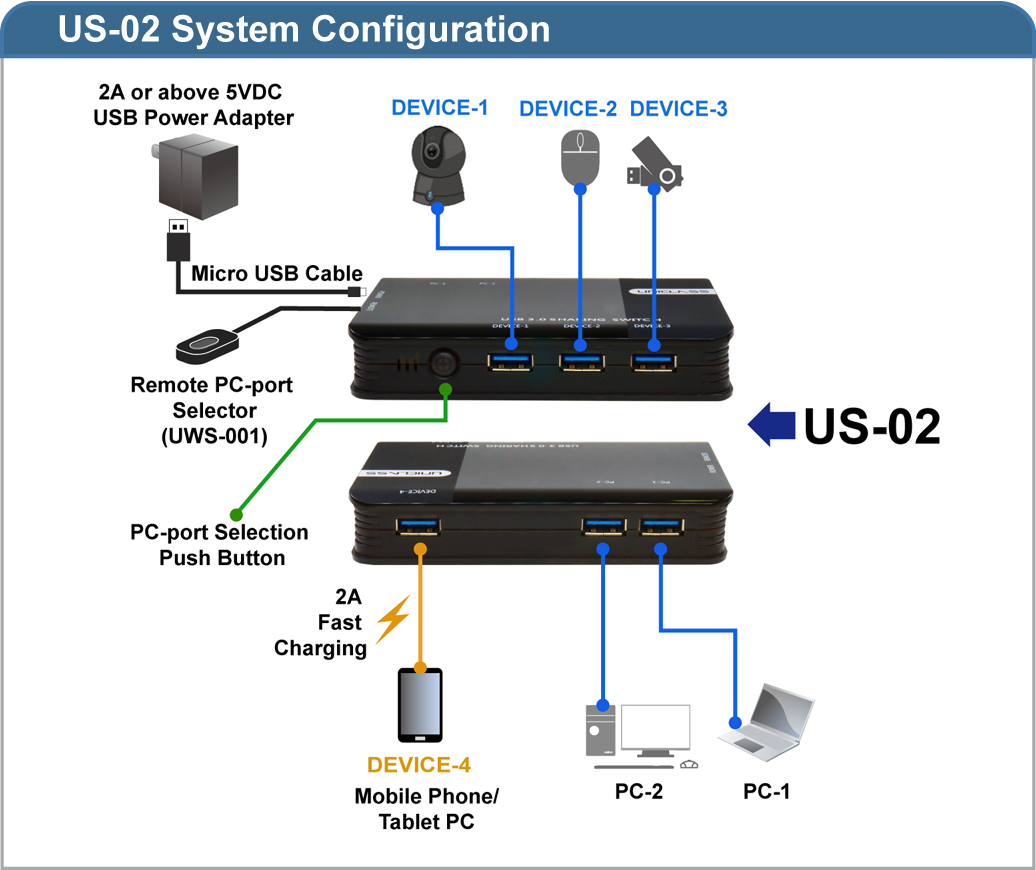

The US-02 is a plug-and-play 2 PC-ports USB 3.0 Device Sharing Switch. It allows 2 computers or the like to share up to 4 USB 3.0 compliant devices. The PC-port selection of the Sharing Switch Unit can be carried out by a panel push button or an optional remote PC-port selector. Those 4 USB 3.0 ports (DEVICE-1 to DEVICE-4) support connecting USB devices compliant with USB 3.0/2.0/1.1 standards. With an external 5V/2A power adapter connected to the Micro USB socket on the unit side panel, the 4th USB port (DEVICE-4) can serve as a dedicated 2A Fast Charging Port for high-current-demanded devices like mobile phones. As the 4 connected USB devices altogether consume little power, e.g. below 900mA, the USB Sharing Switch unit can even operate in BUS-powered condition without external power source.
