4K@60Hz HDMI Virtual Matrix KVM Extender over IP
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
- 4K over 1-gigabit network with nealy-zero ultra low latency and fast switching
- Video supports up to 4K 2160p@60Hz (4:4:4) HDMI 2.0 input and HDCP2.2 specification
- Audio supports LPCM and Dolby Digital/Dolby Digital Plus/DTS/Dolby TruHD/
- DTS-HD bit stream formats
- Dual RJ45 ports/SFP Fiber sockets connectivity for redundancy
- Unit OSD menu for setting up the connection between a TX unit and a RX unit on the same LAN

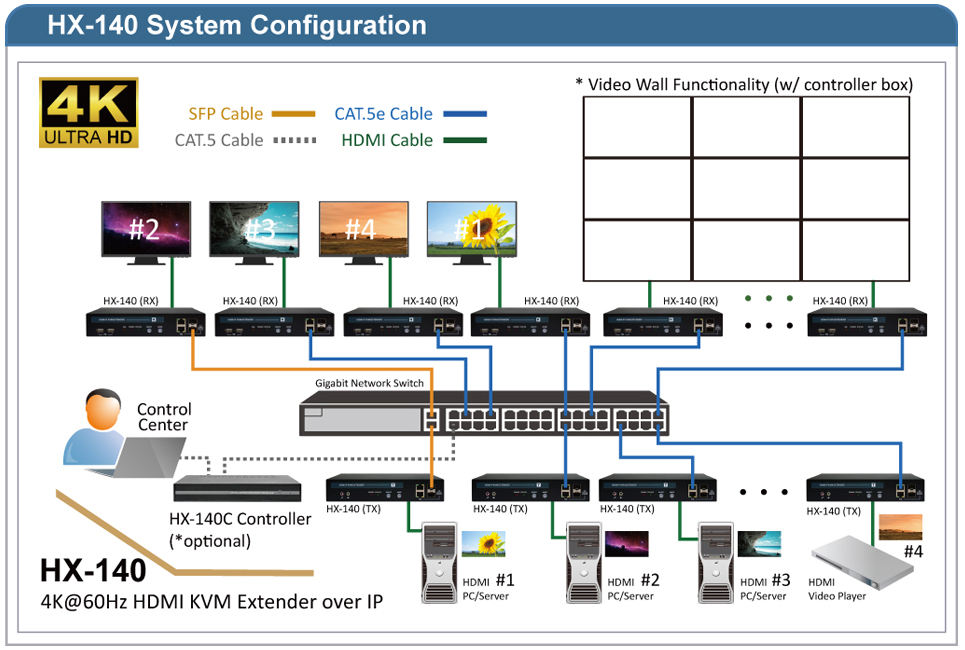

- Value-added functionalities: Grouped Switching/Mouse Roaming/Console Collaboration/Video Wall with an optional controller box
- USB 2.0 pass through for IP KVM application
- Description

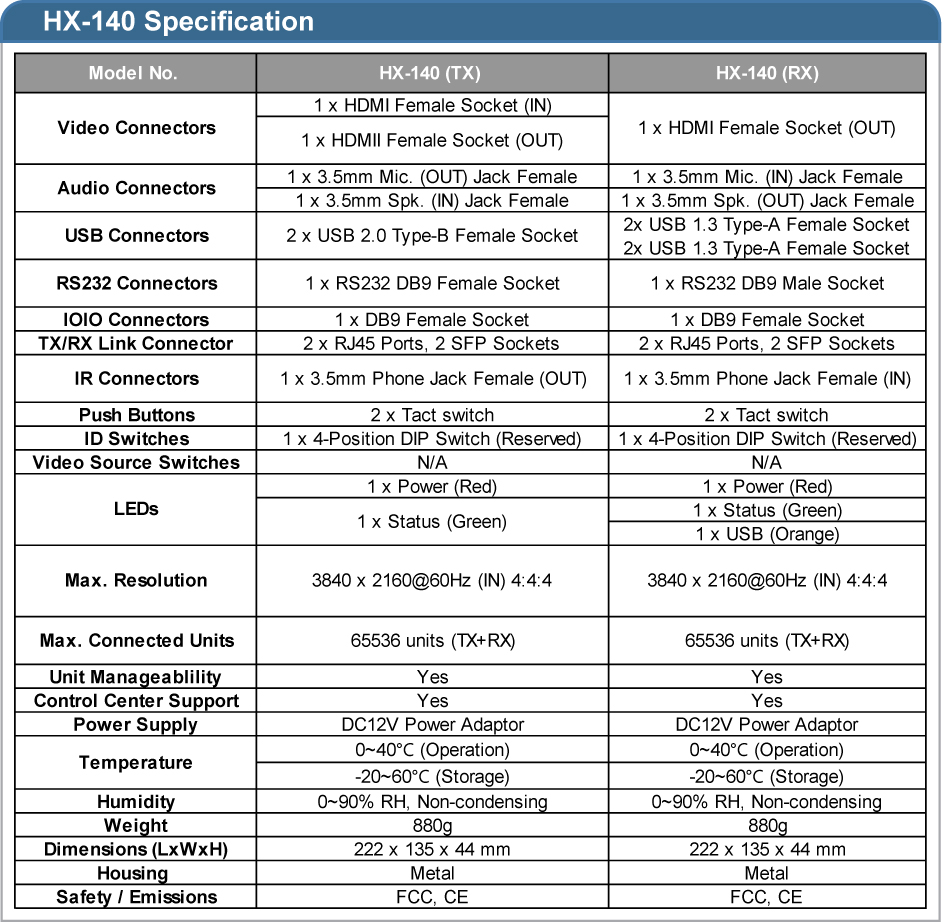

- Specification
- Download

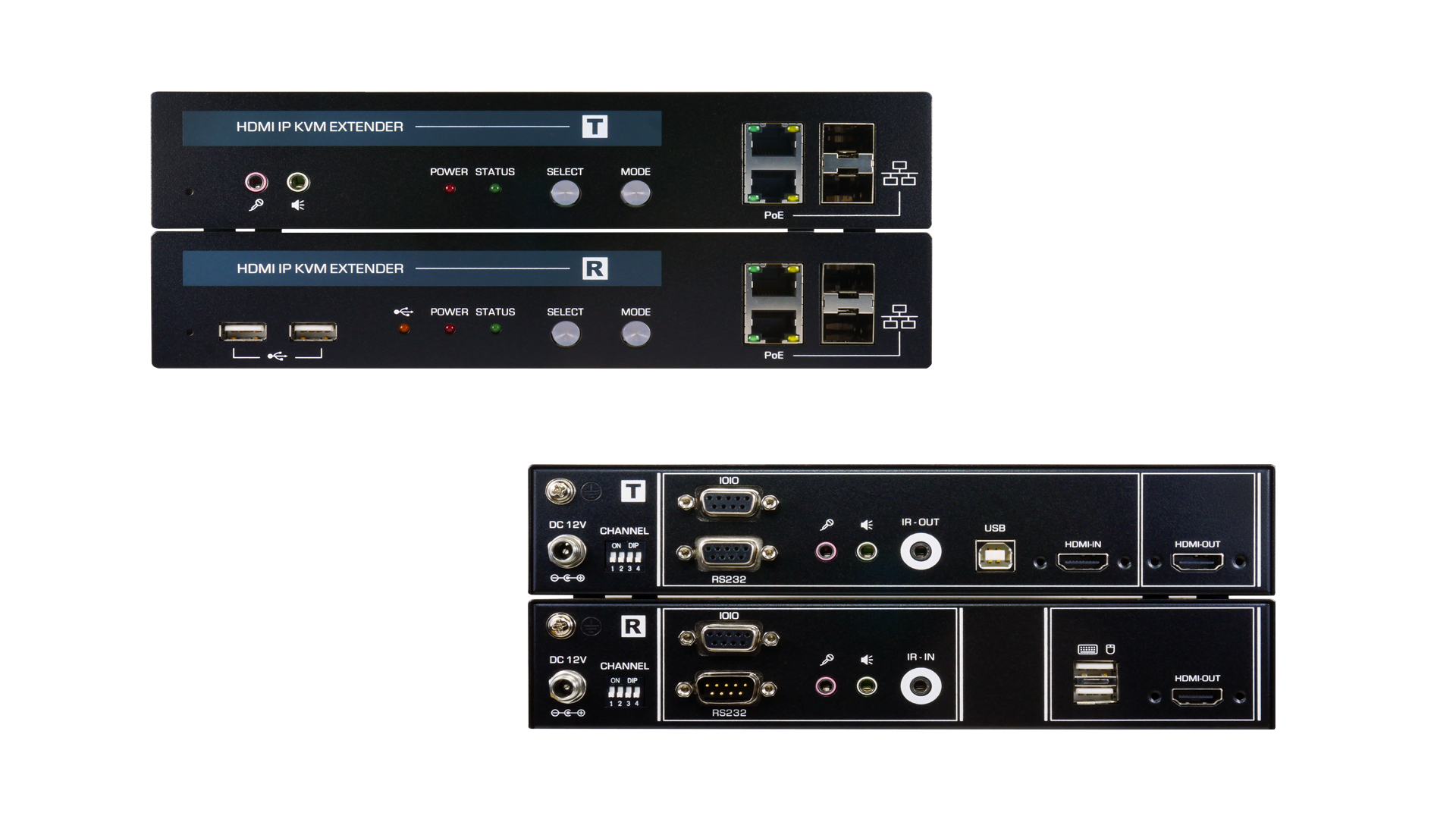

The HX-140 is an IP-based HDMI KVM Extender which comprises two distinct units, the transmitter (TX) unit and the receiver (RX) unit. With our unique design, you may enjoy the convenience of remotely accessing HDMI-enabled computers or multimedia players from a long distance. Except for the signal extension of video, keyboard, mouse, and audio (microphone&speaker), the access of USB peripherals can also be extended, which means the user can fully control the HDMI-enabled computer connected to a TX unit from a remote KVM (keyboard/mouse/monitor) console connected to an RX unit over the existing gigabit network infrastructure. When the extender units work in non-managed mode, the user can easily link them with their OSD menu. As they work in managed mode with an optional controller box, advanced functions such as Grouped Switching/Mouse Roaming/Console Collaboration/Video Wall could be implemented on your extender configuration.
