DF-210
Optical DVI-D (Video) Extender w/ Duplex LC Receptacles
Optical DVI-D (Video) Extender w/ Duplex LC Receptacles
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

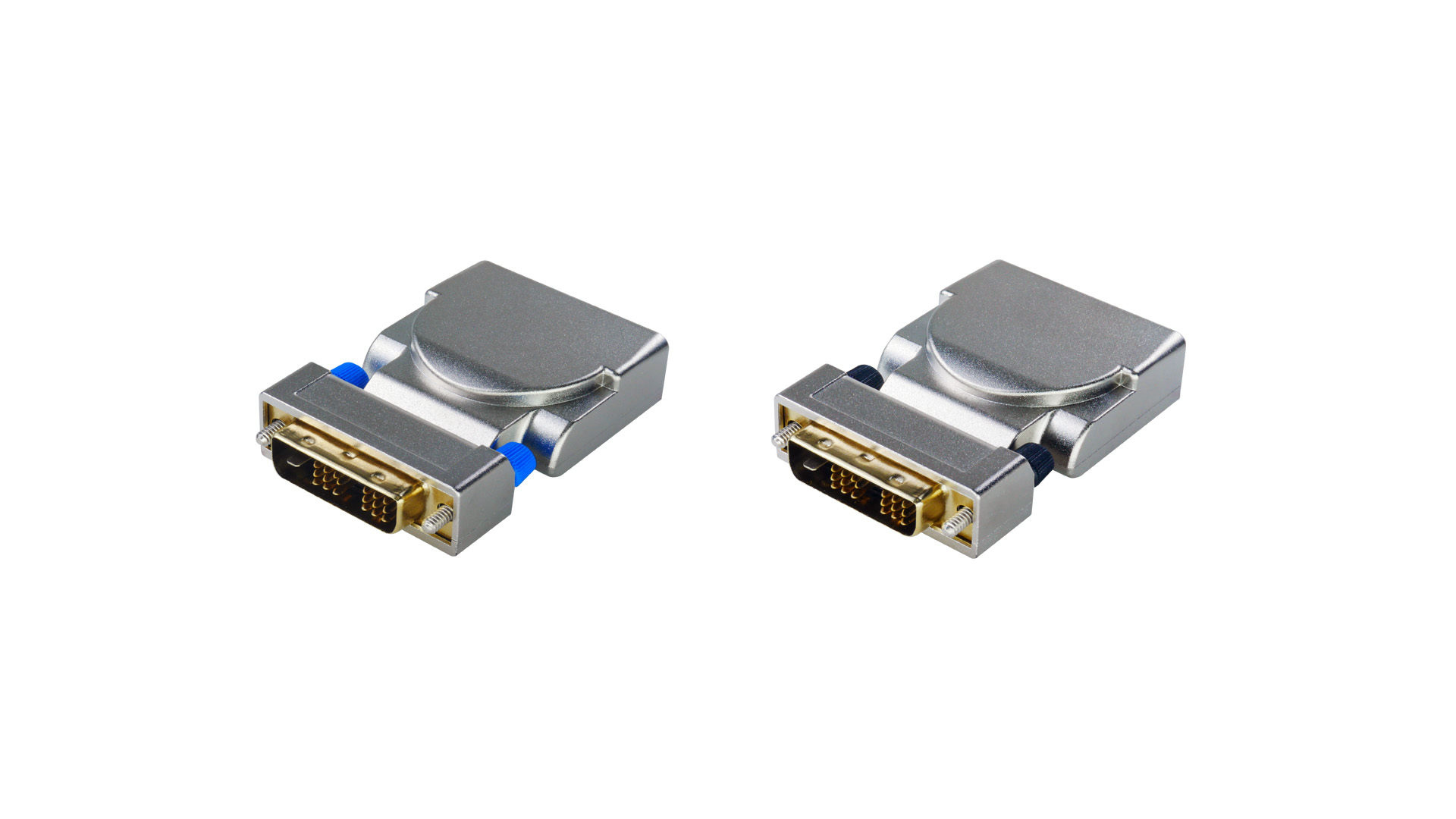

- Compact Optical DVI Extender Module
- EDID Programming Function

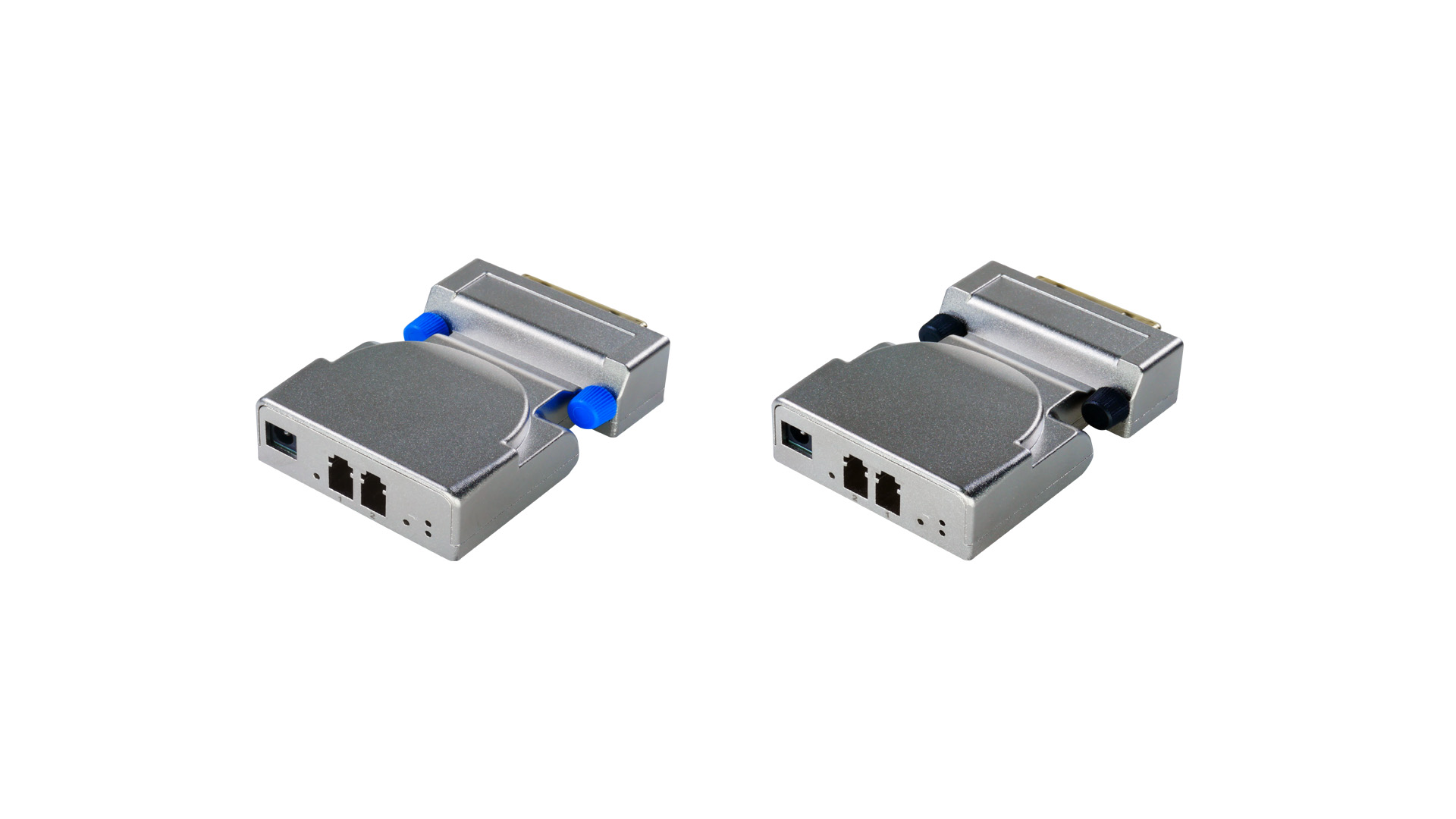

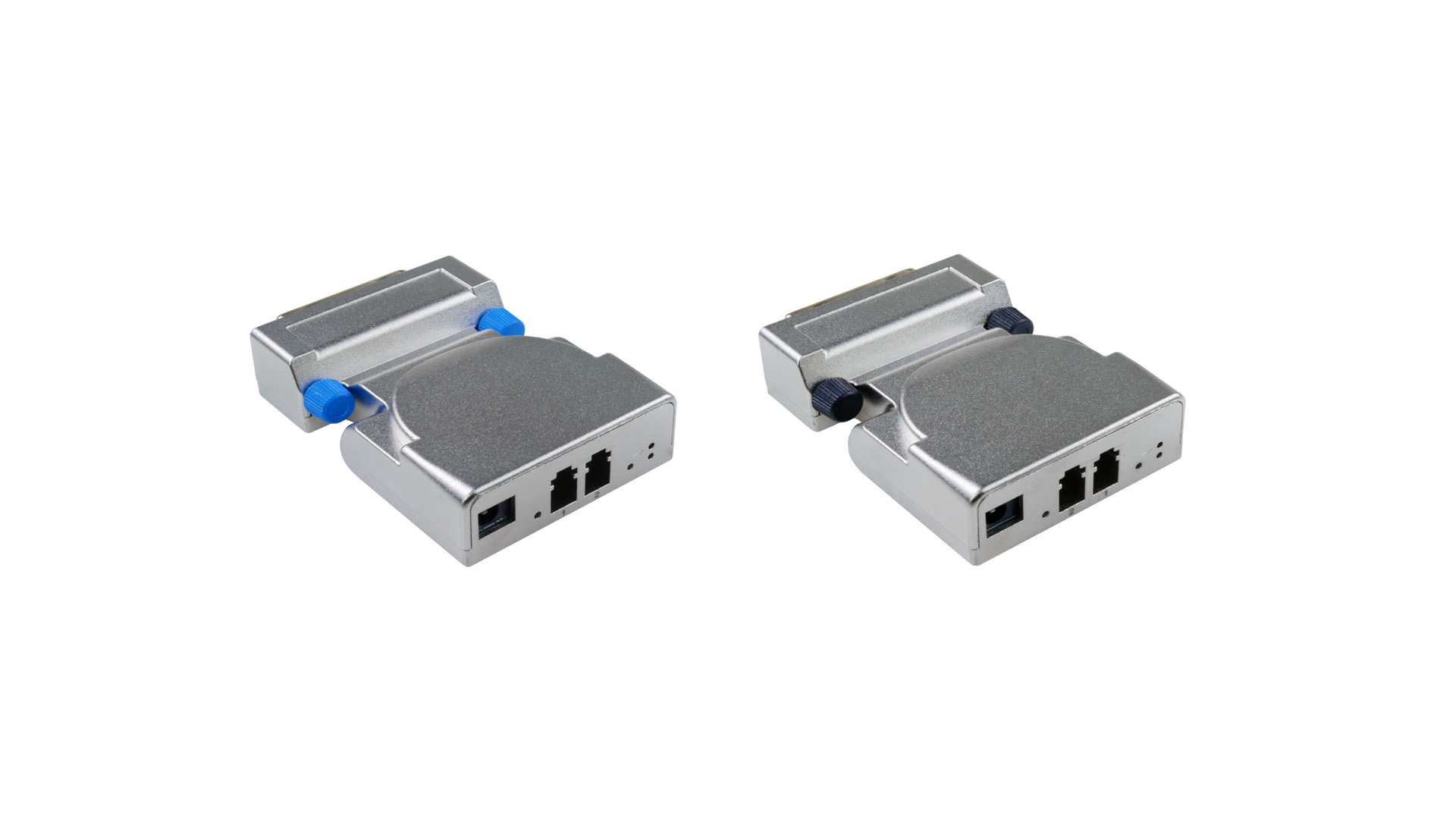

- Duplex LC Receptacle Optical Interface
- Supports Single-Mode and Multi-Mode Fiber Applications
- High Resolution Video Transmission over Long Distance
- Supports Video Resolution up to 1920x1200@60Hz for FHD TV
- Indicates the Signal Link Status of Transmitter and Receiver
- Metal Enclosure and Low Power Consumption
- RoHs Compliant
Description
- Description
- Specification
- Download

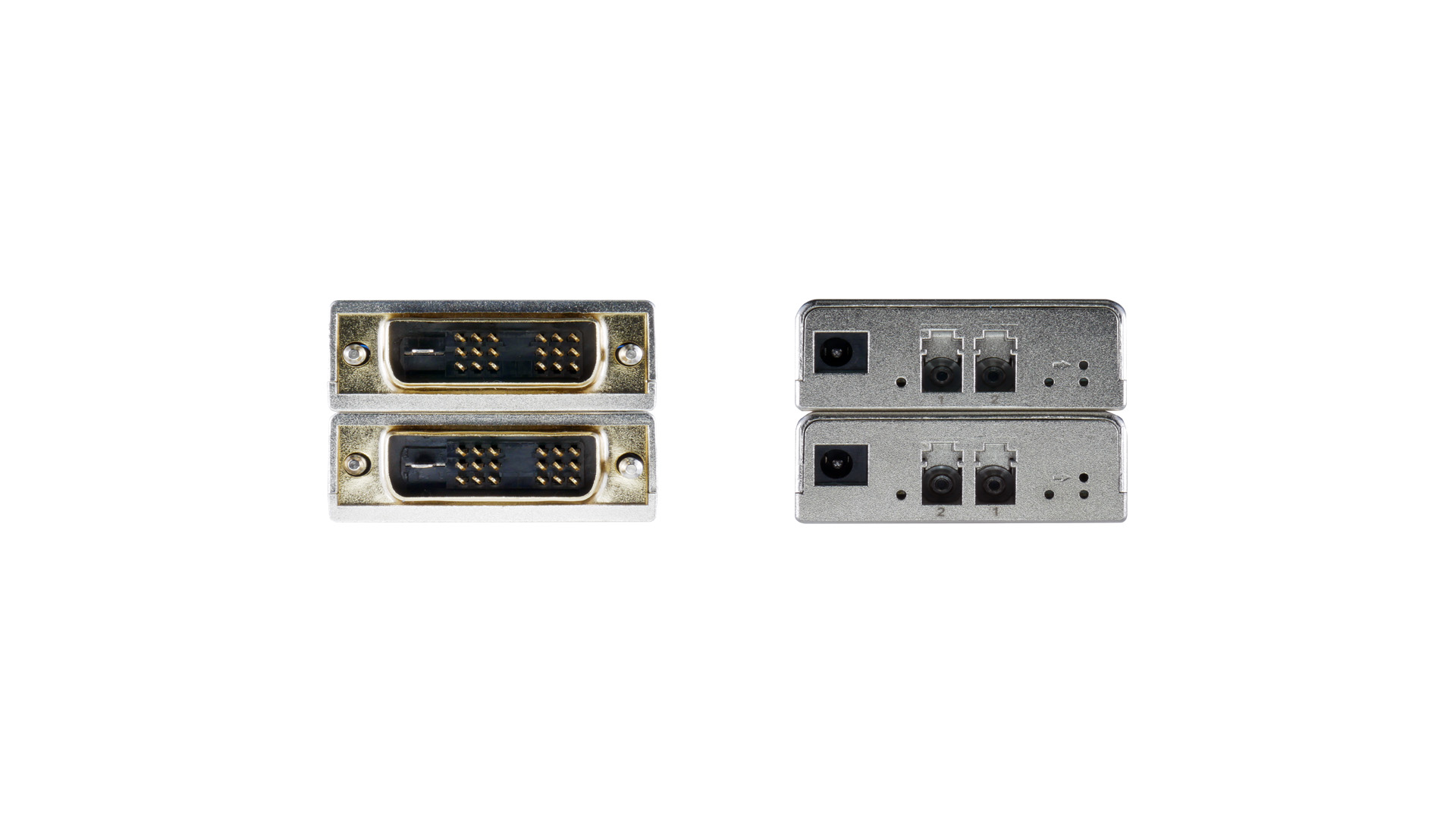

The DF-210 Optical DVI-D Extender is designed to transmit the DVI-D signals through two fibers over a long distance. It supports both multi-mode fiber cable and single-mode fiber cable according to system requirements. With UNICLASS's EDID learning technology, the DF-210 can therefore adapt to support any display resolutions which makes setup hassle-free and easy. The DF-210 has integrated LED indicators, power input and Self-EDID programming button on its front panel for indicating the signal link status and operating the extender module.

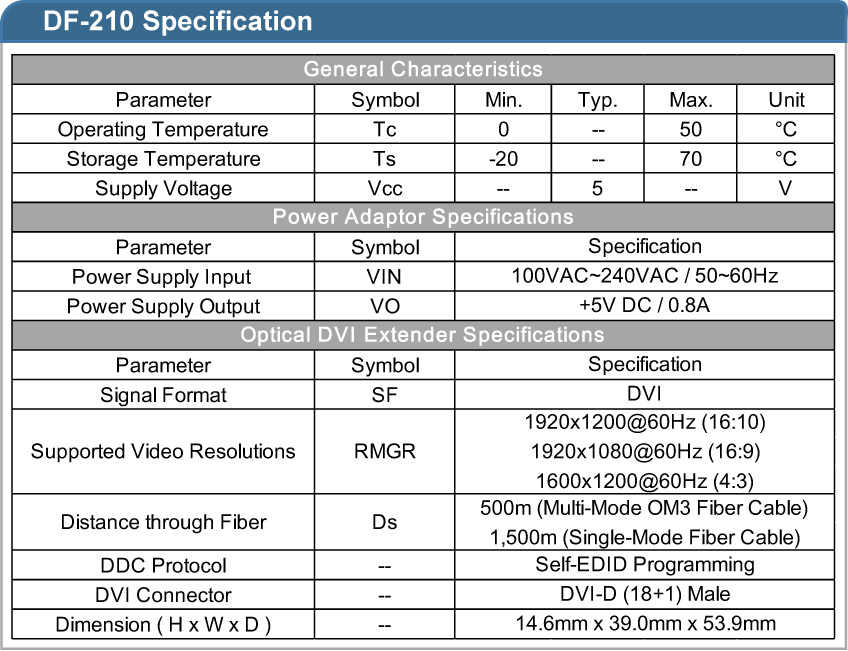

DF-210 DATASHEET
(2023/06/21 12:01:09)
