UNI-PT04

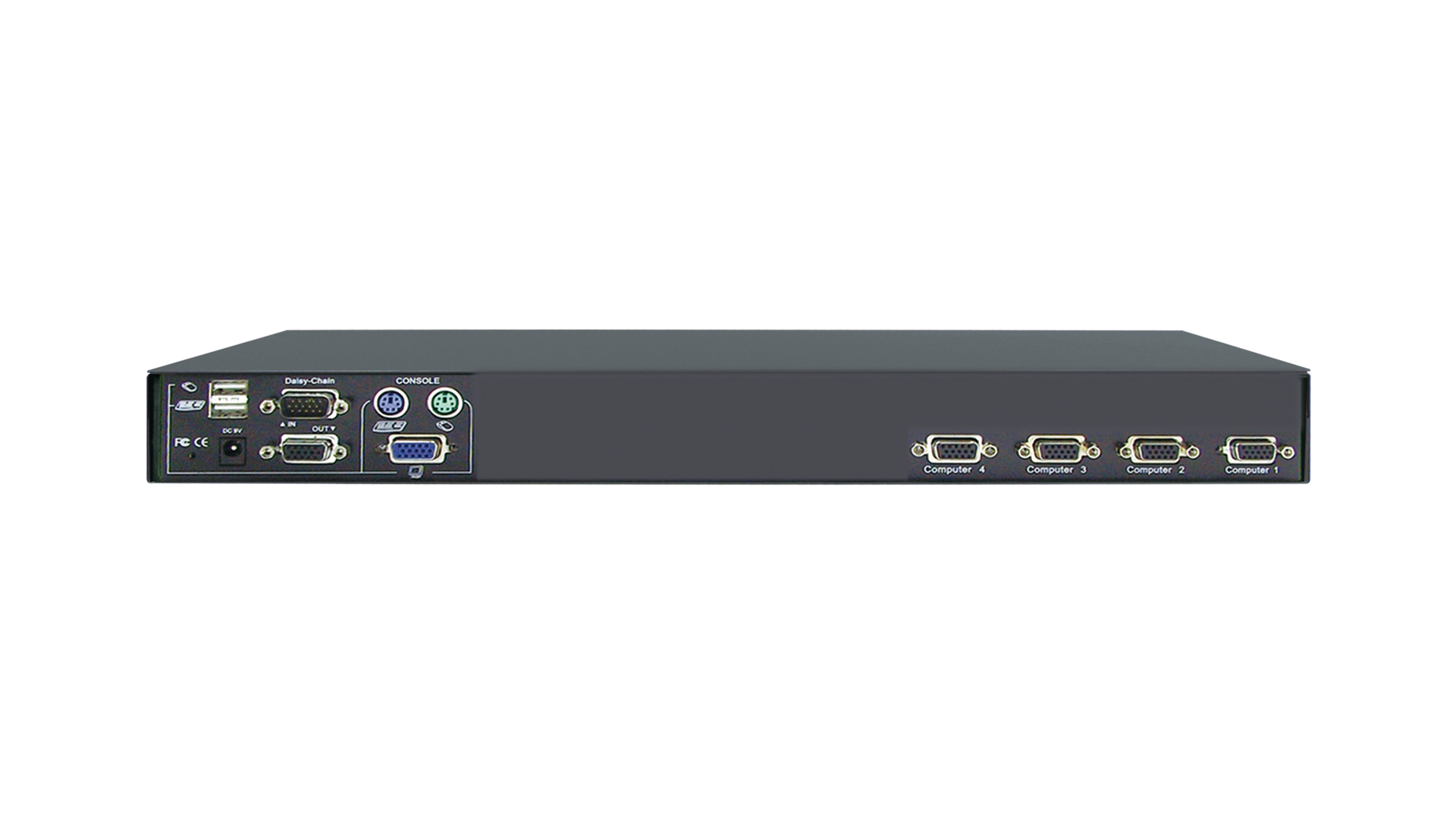

4-Port Rackmountable USB-PS/2 KVM Switch w/ OSD, Daisy-Chainable
4-Port Rackmountable USB-PS/2 KVM Switch w/ OSD, Daisy-Chainable
.jpg)
.jpg)
- 4-port Rackmount USB-PS/2 KVM switch with OSD

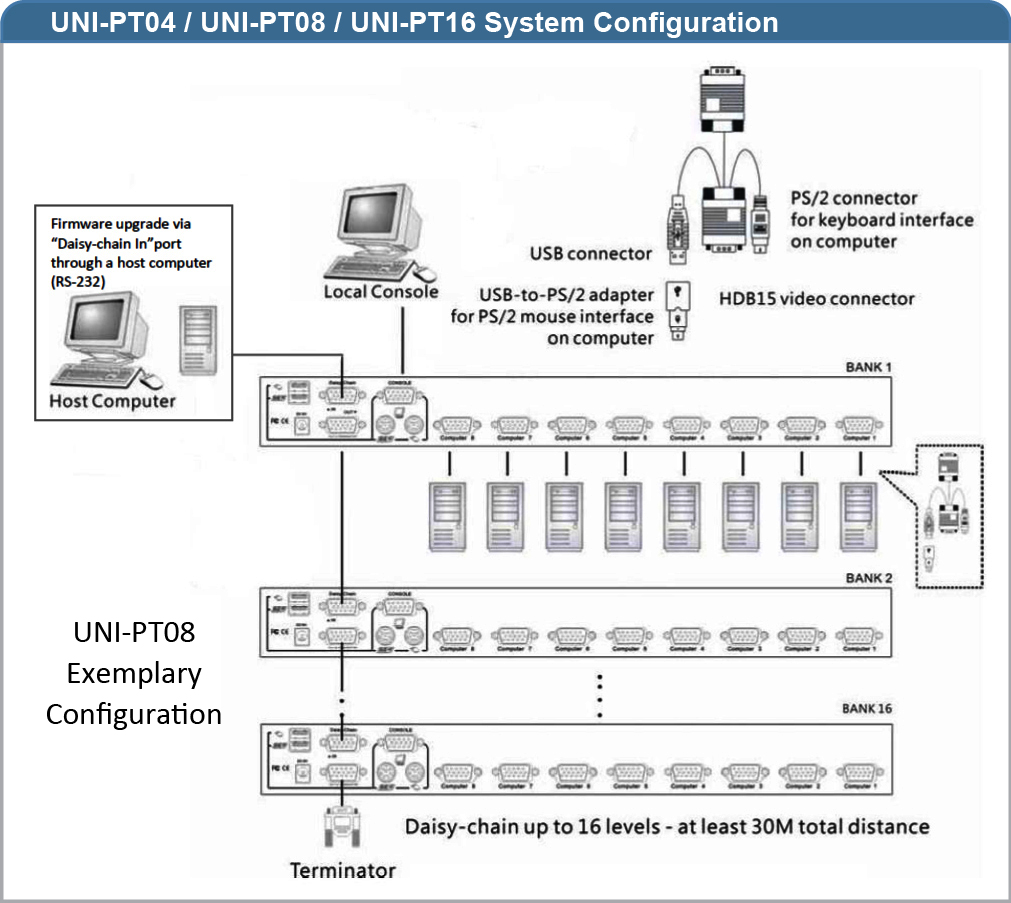

- Cascadable up to 16 units using daisy-chain cable
- Daisy-chaining distance up to a total of 30 M
- Port capacity scalable up to 244 PCs
- USB and PS/2 interface support on both console and PC side
- Support Microsoft and Logitech standard 5-key mouse and compatibles
- Computer selection and operation using front-panel push buttons , keyboard hotkeys and OSD Menu
- Support for DOS, Windows 95/98/SE/ME/2000/XP/Vista/7, Linux, MacOS, etc.
- Numerical LED display and LED indicators for easy bank/port status monitoring
- Active Sync Replication for DDC emulation
- Keyboard/mouse emulation to ensure compatibility to all machines and operating systems
- Extensive support for USB keyboards and mice
- One controller per port to keep keyboard and mouse alive
- Enhanced PS/2 mouse reset hotkeys for non-PnP OS such as Win NT 4.0 and Linux
- Buzzer sound for hotkey and port switching confirmation
- Autoscan period programmable 10 ~ 95 through OSD Menu option
- Password protection
- Auto-logout timeout support
- High VGA resolution 2048 x 1536
- PC side emulation module
