PK-110

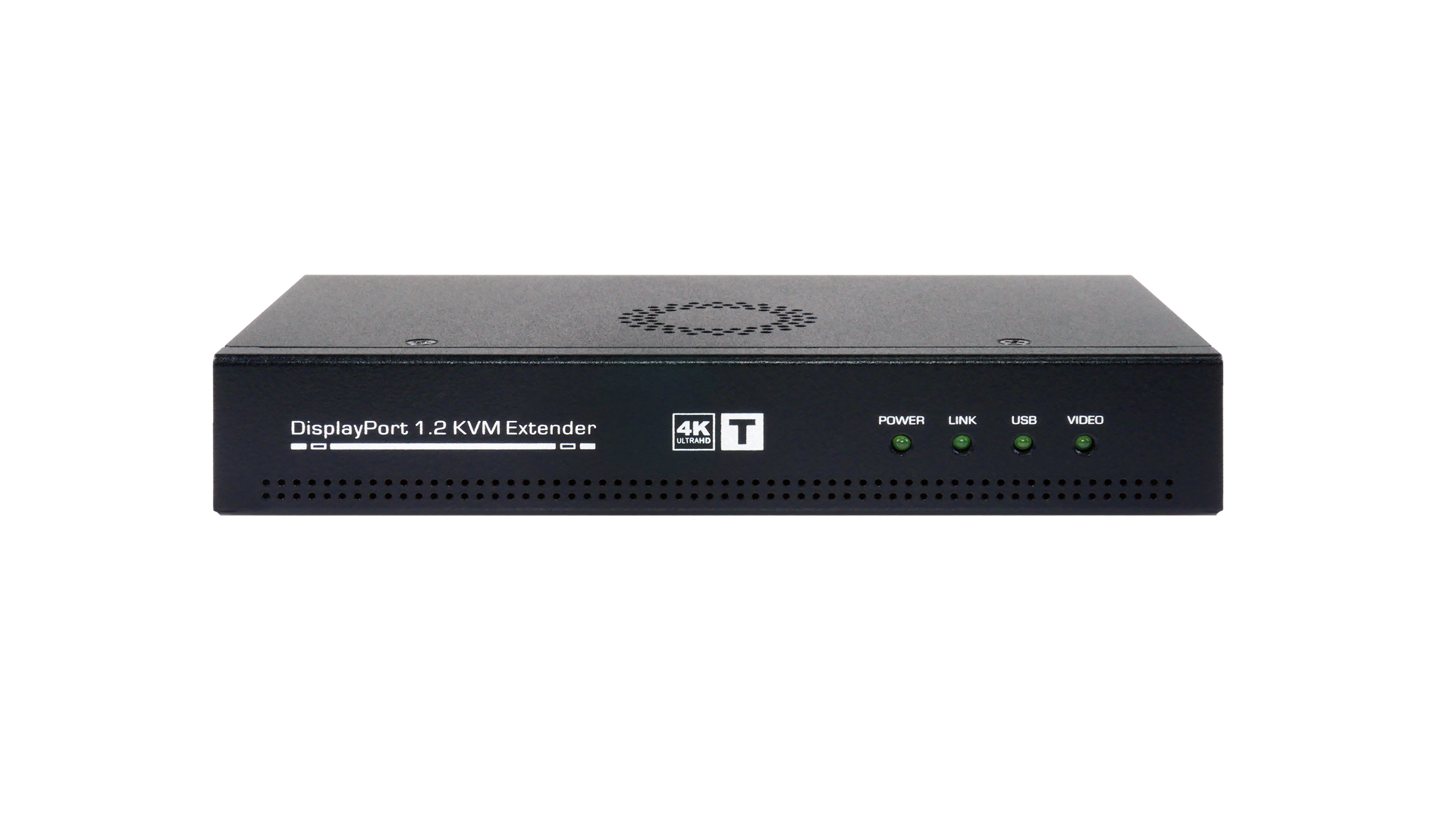

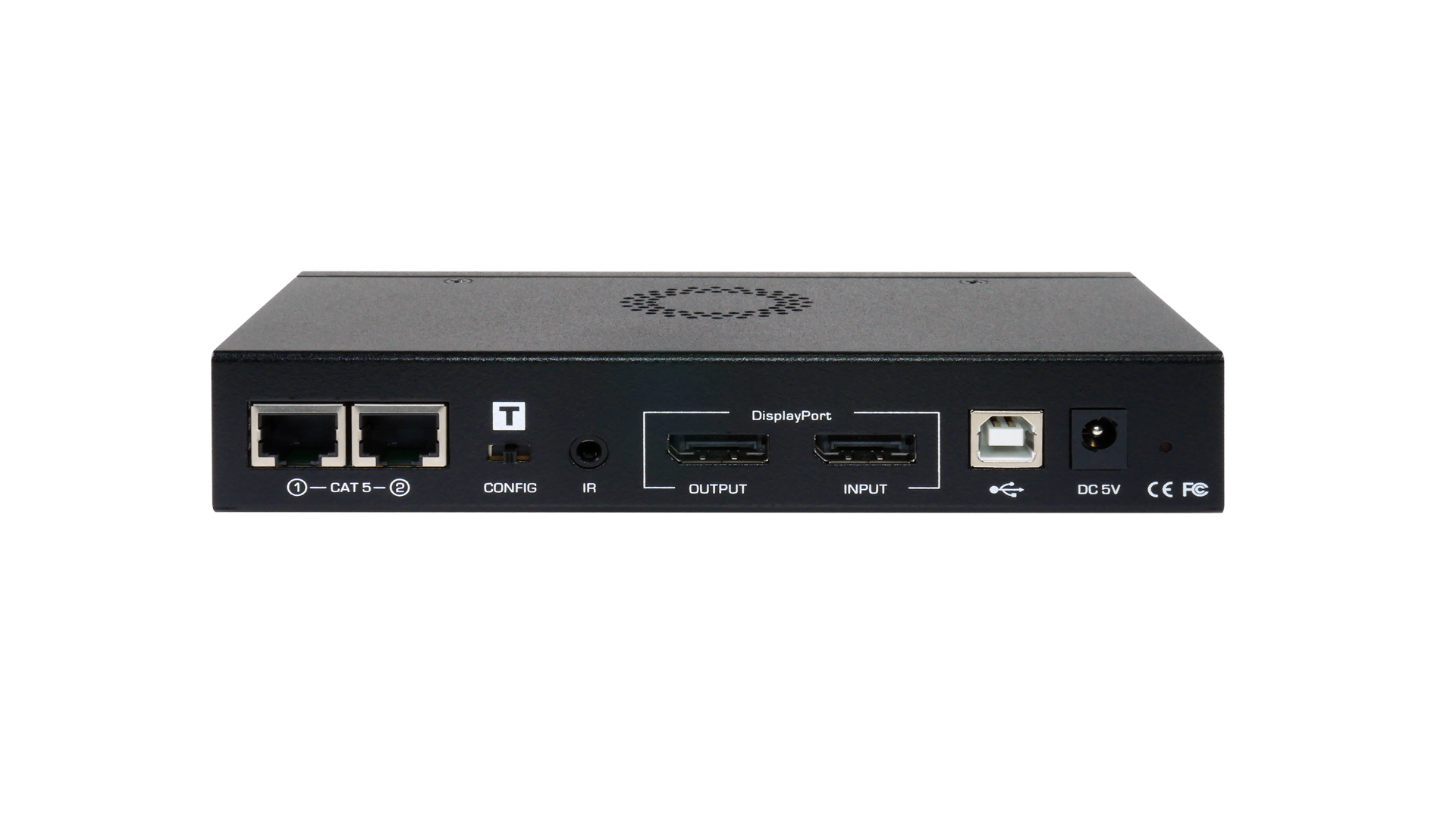

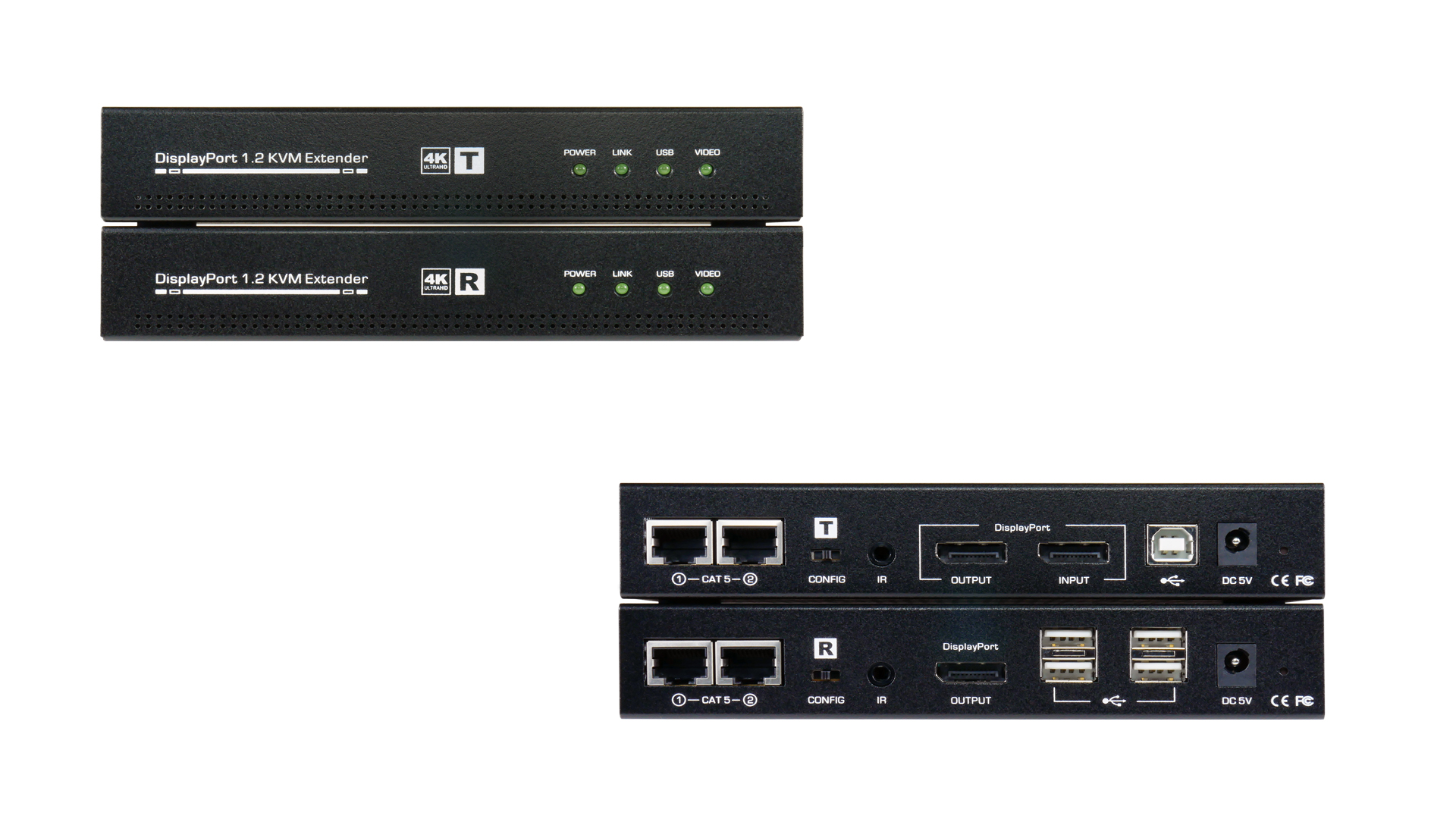

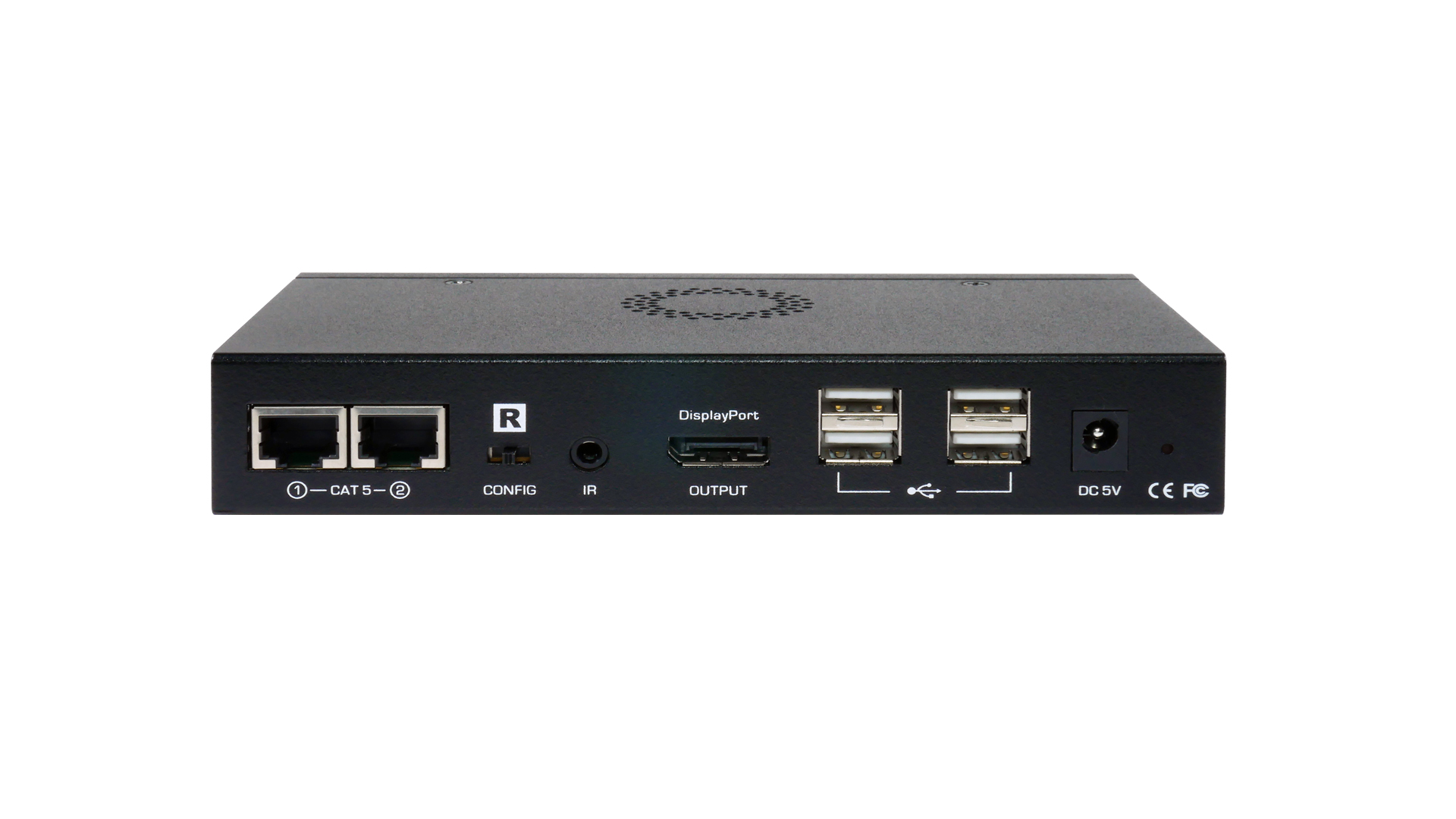

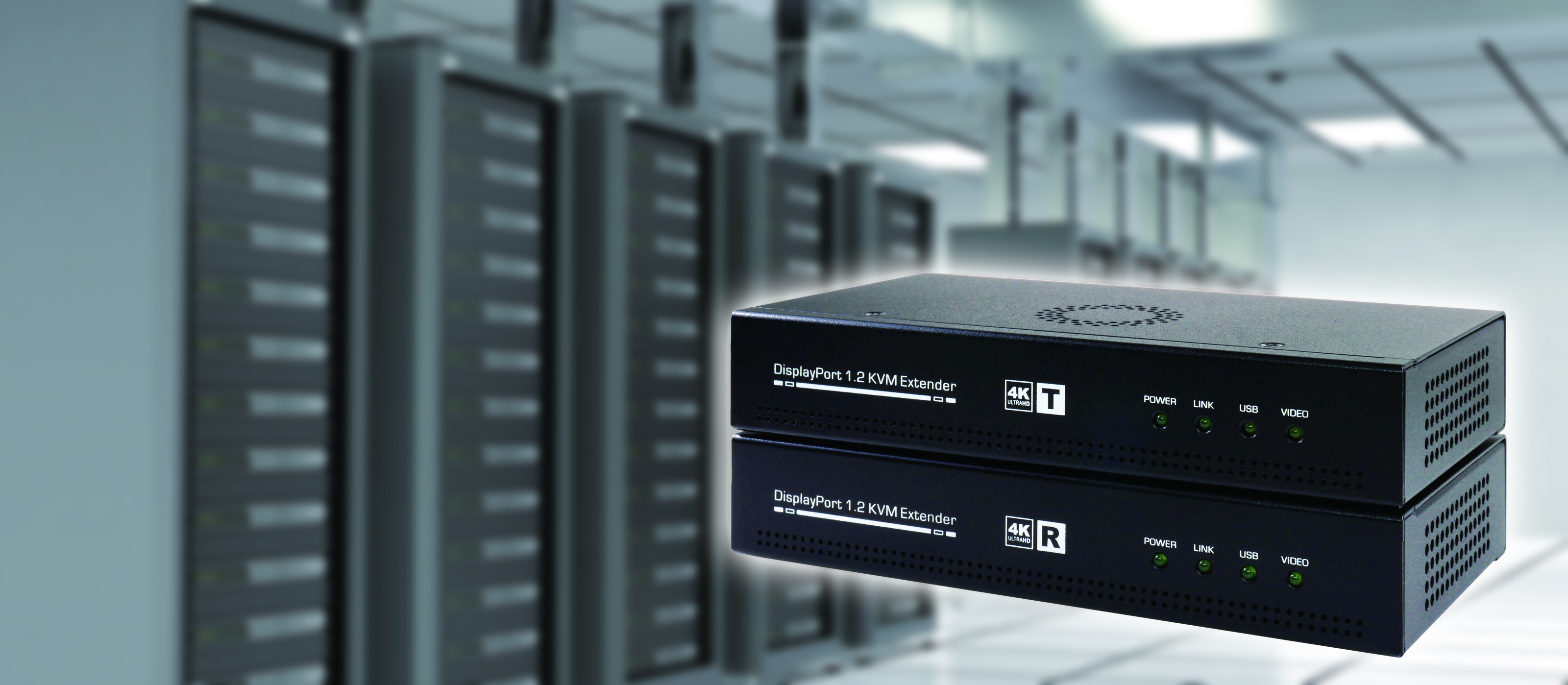

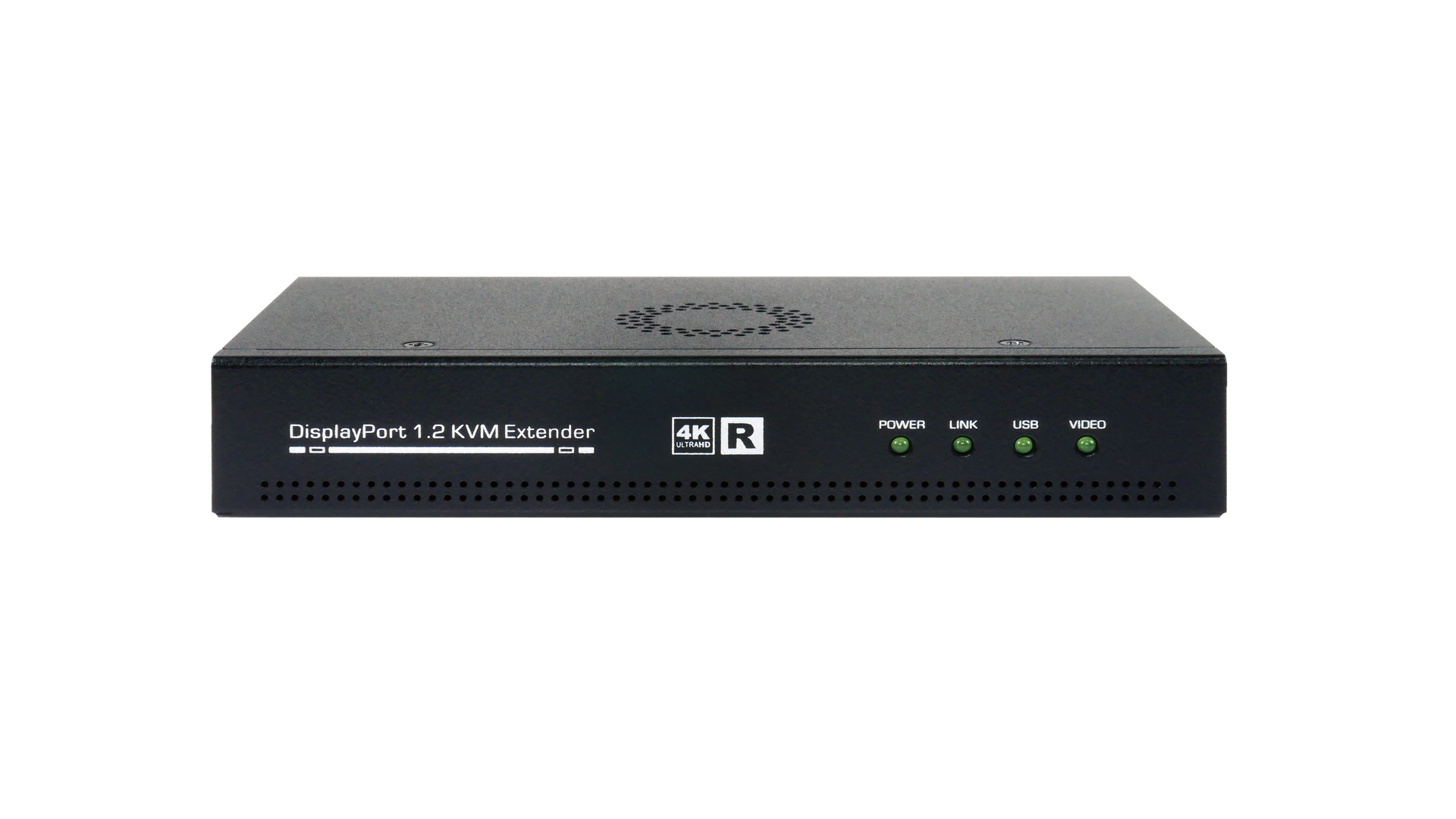

DisplayPort 1.2 KVM Extender
DisplayPort 1.2 KVM Extender
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

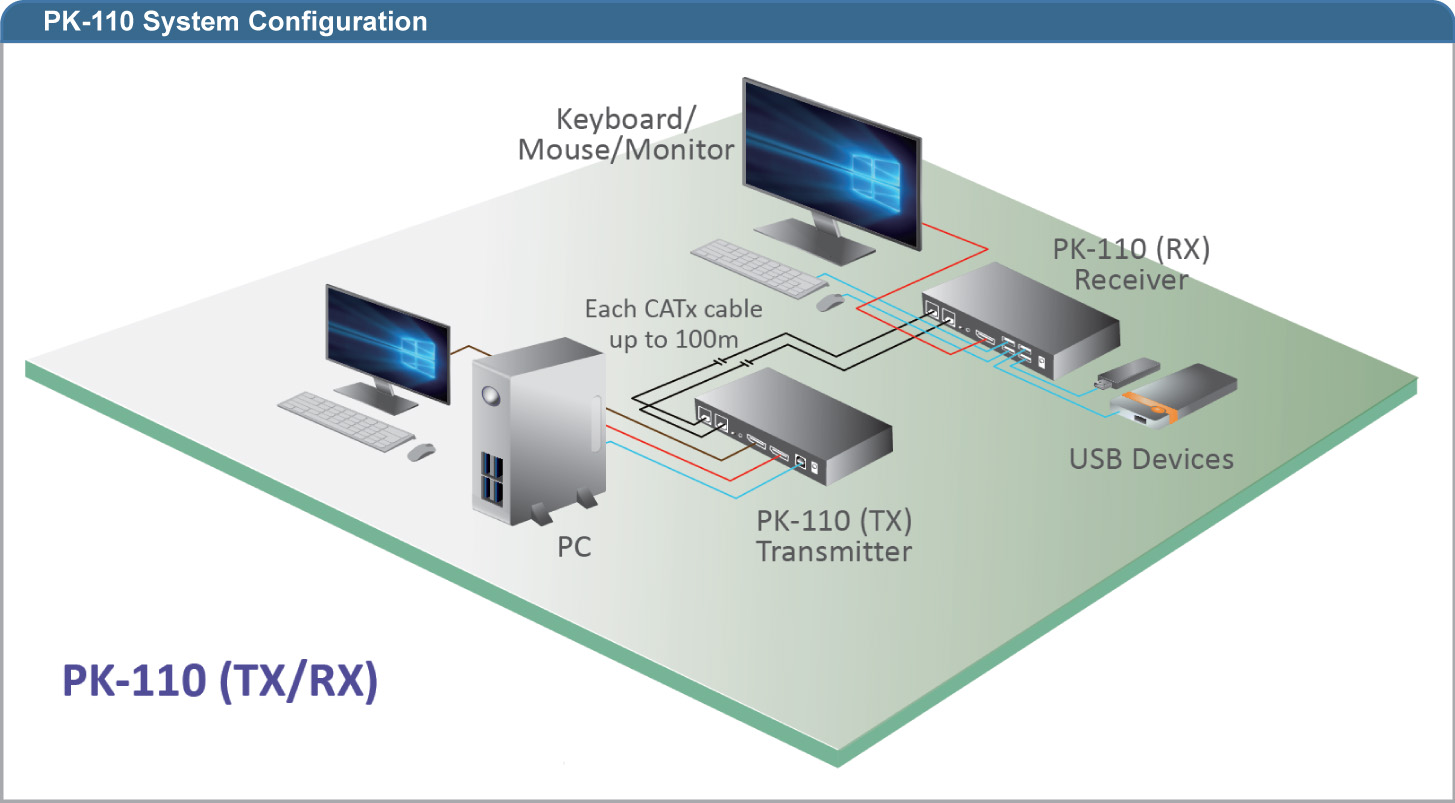

- Uncompressed full HD digital video/audio over standard CATx cables with RJ-45 connectors
- Ultra High Resolution supports up to 3840 x 2160 over two CATx cables
- Up to DP 1.2 4K@60Hz 4:4:4 Video Input and HDCP2.2 is supported
- 2160p resolution can be extended up to 100 meters (328 feet)
- USB 2.0 pass-thru over CATx cable
- Compatibility with full speed USB devices: webcams, USB flash drives, keyboard & mouse
- Supports HDCP 2.2 and Digital Audio Formats
- Supports 7.1 ch Audio or more (LPCM/DTS/Dolby/Dolby ATMOS)
- DP 1.2 digital audio pass-thru over CATx cable
- Identical video interfaces (DP 1.2) for Transmitter Input and Receiver Output
- USB 2.0/USB1.1 specification compliant
- Support Windows XP/7/10, Linux and Mac OS
- Multi-platform support for PC and Macintosh
- Status LED display for easy port status monitoring
- Metal enclosure for best shielding and protection
Description
- Description

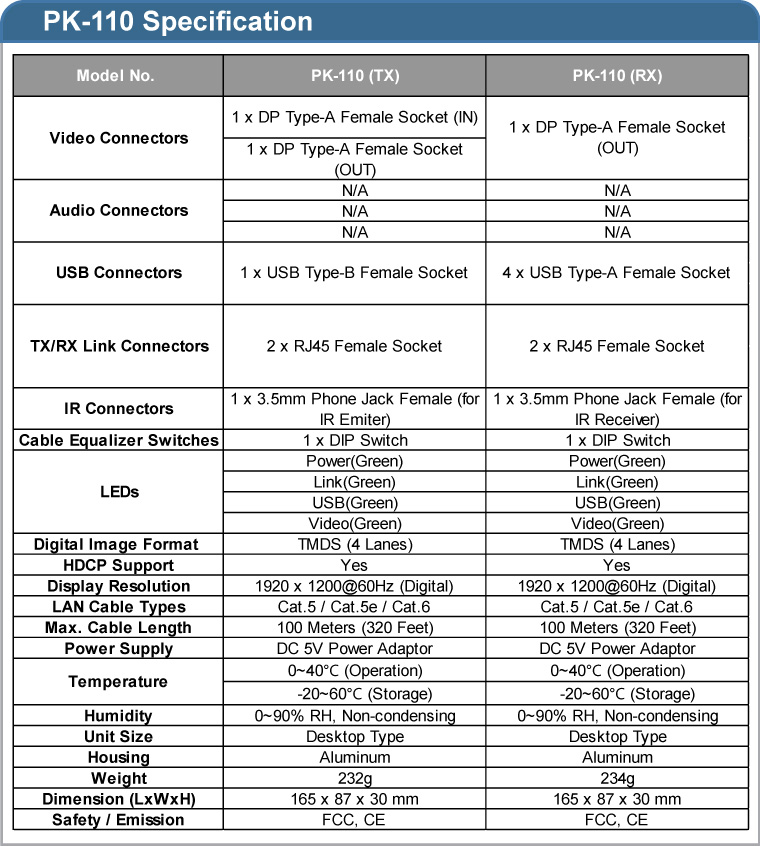

- Specification
- Download
PK-110 DATASHEET
(2024/12/05 11:58:30)
Cat5 Extender Comparison Table
(2024/12/05 11:58:30)
