HF-210

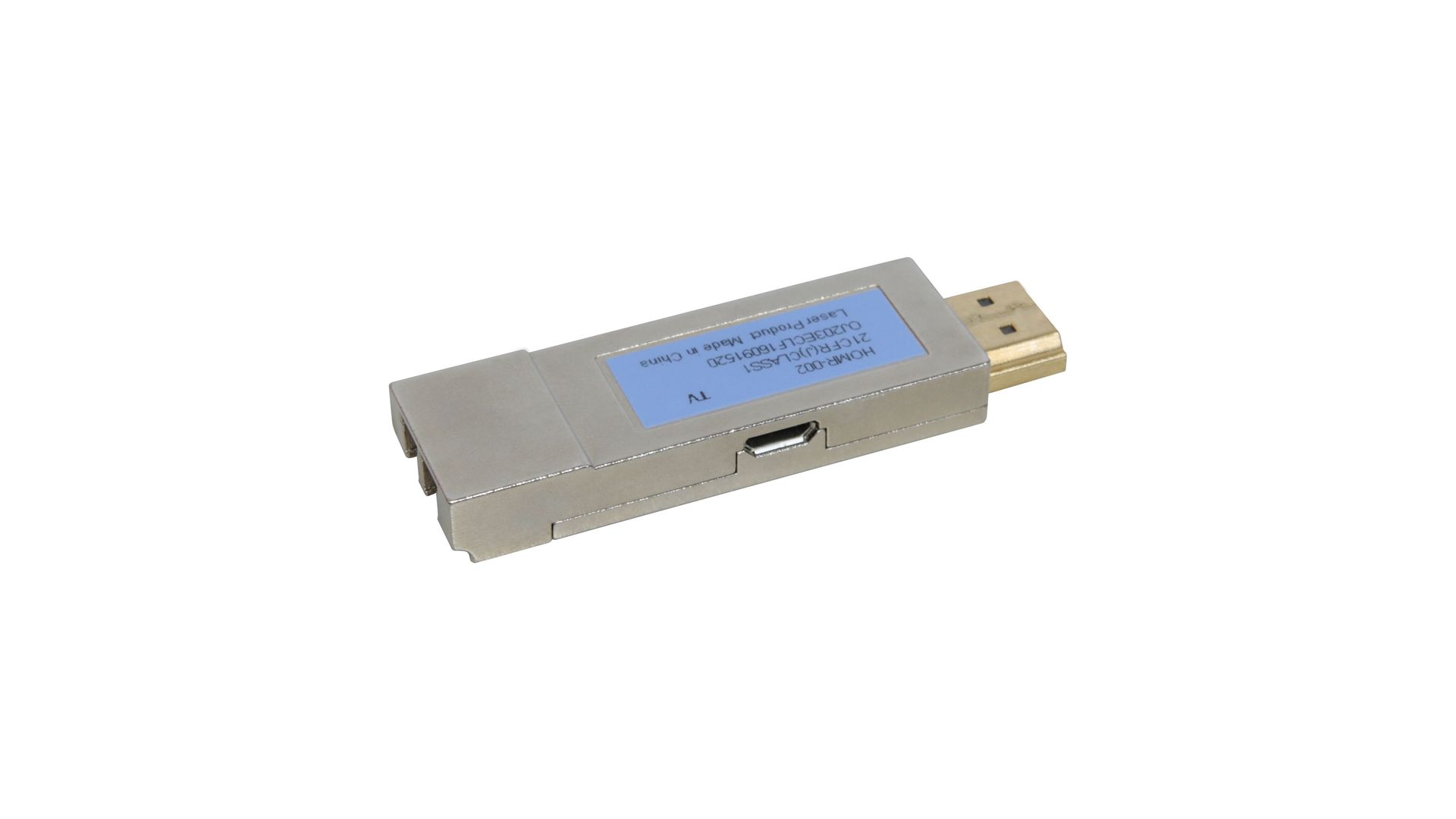

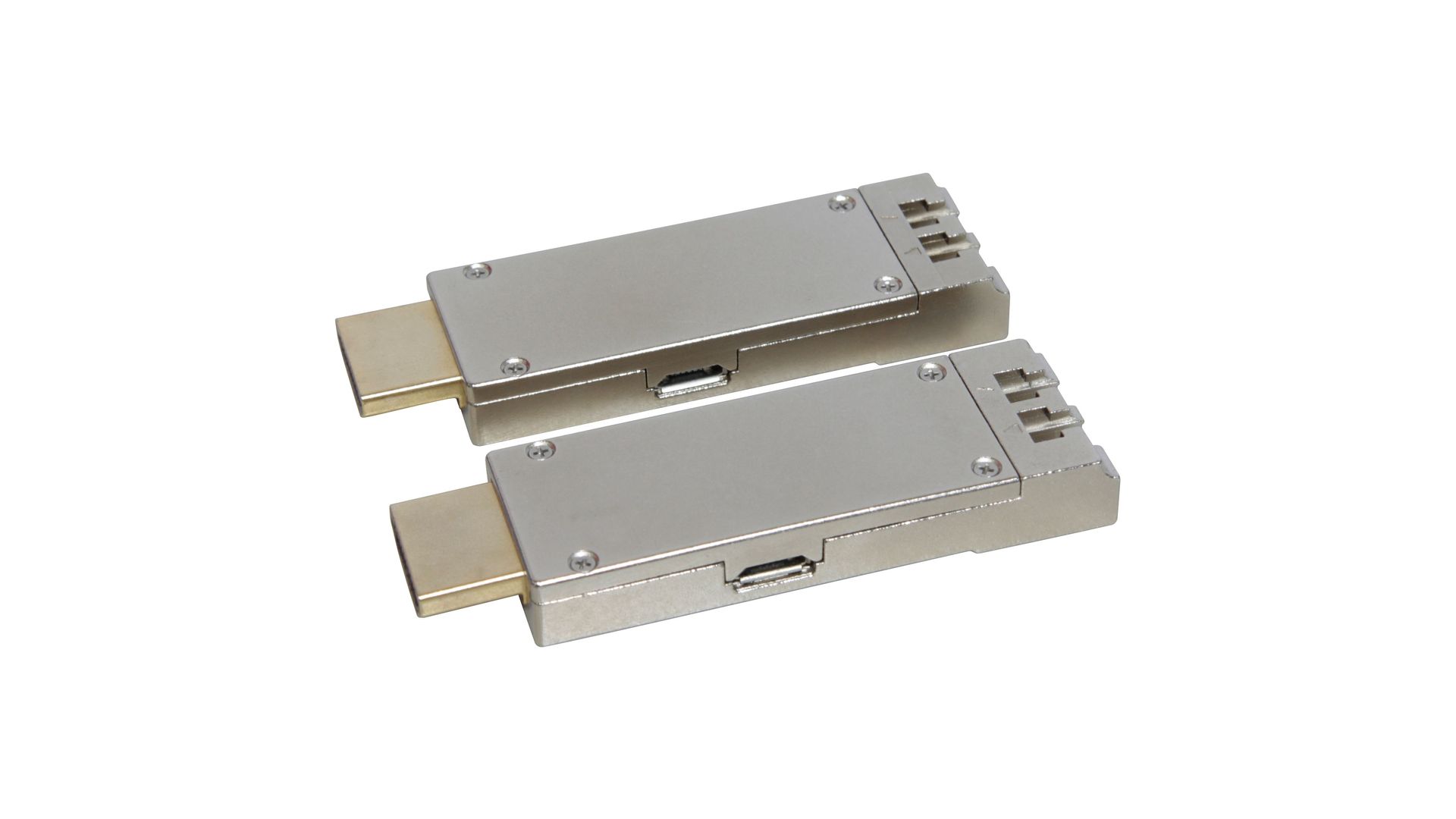

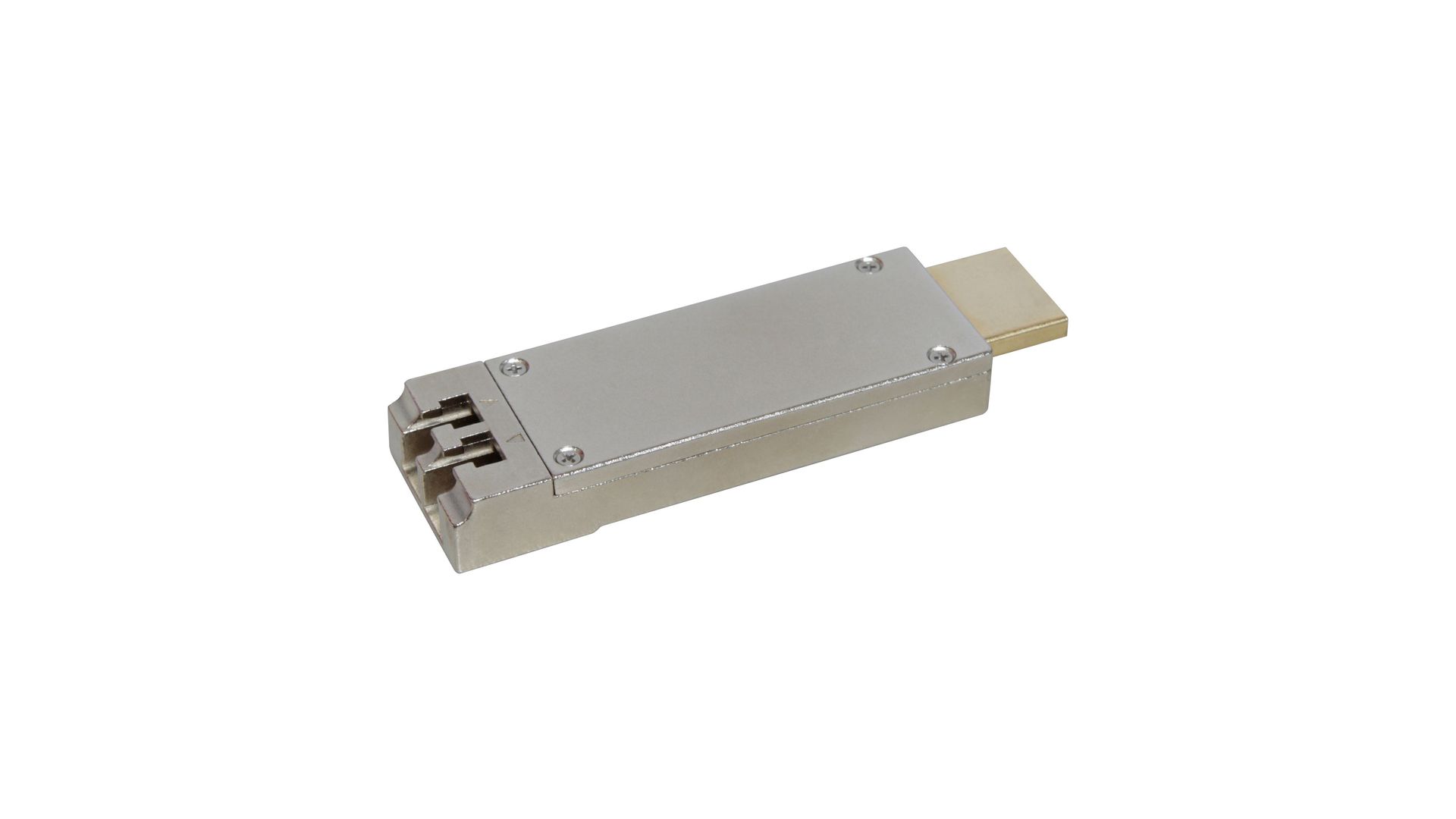

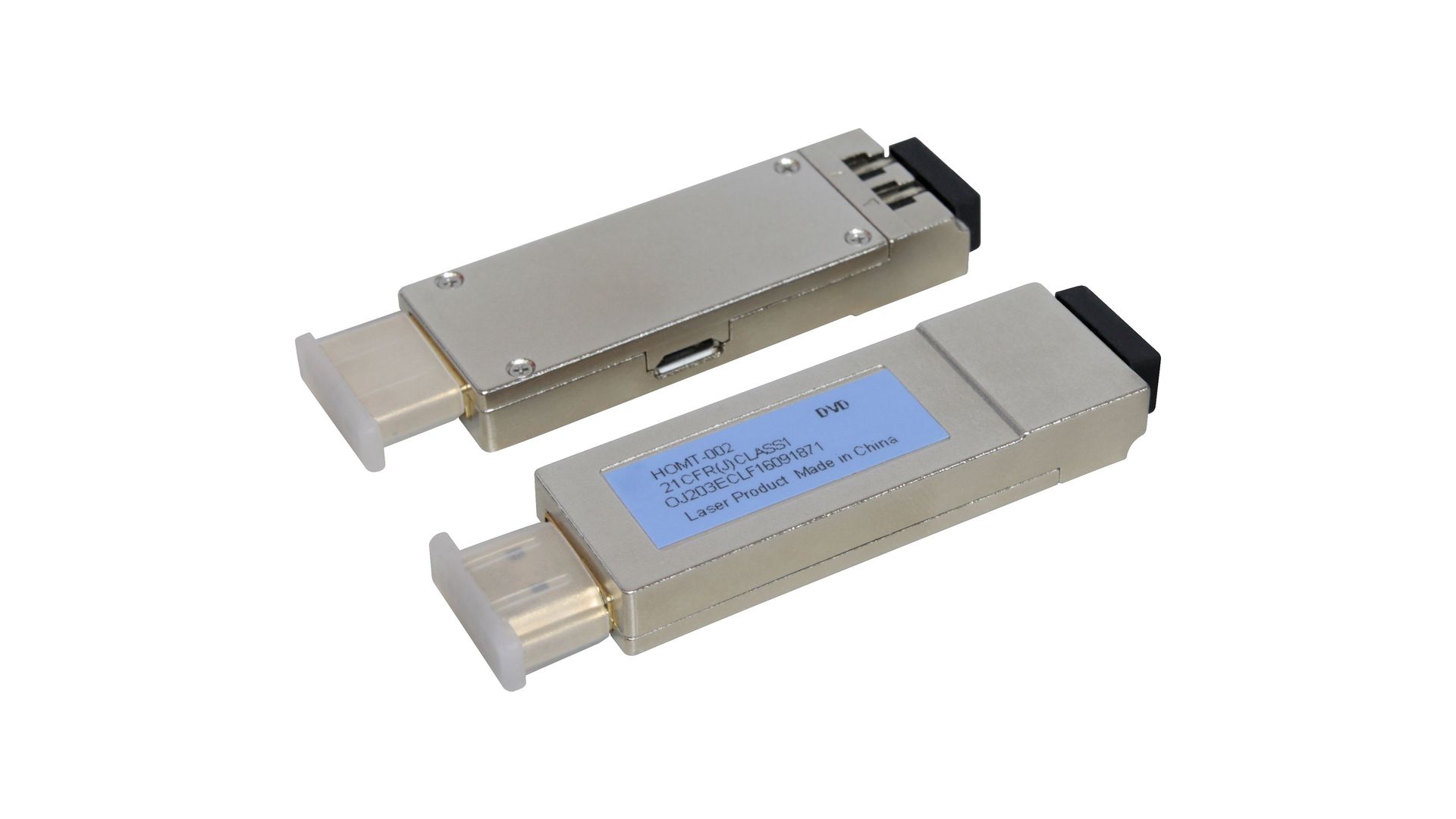

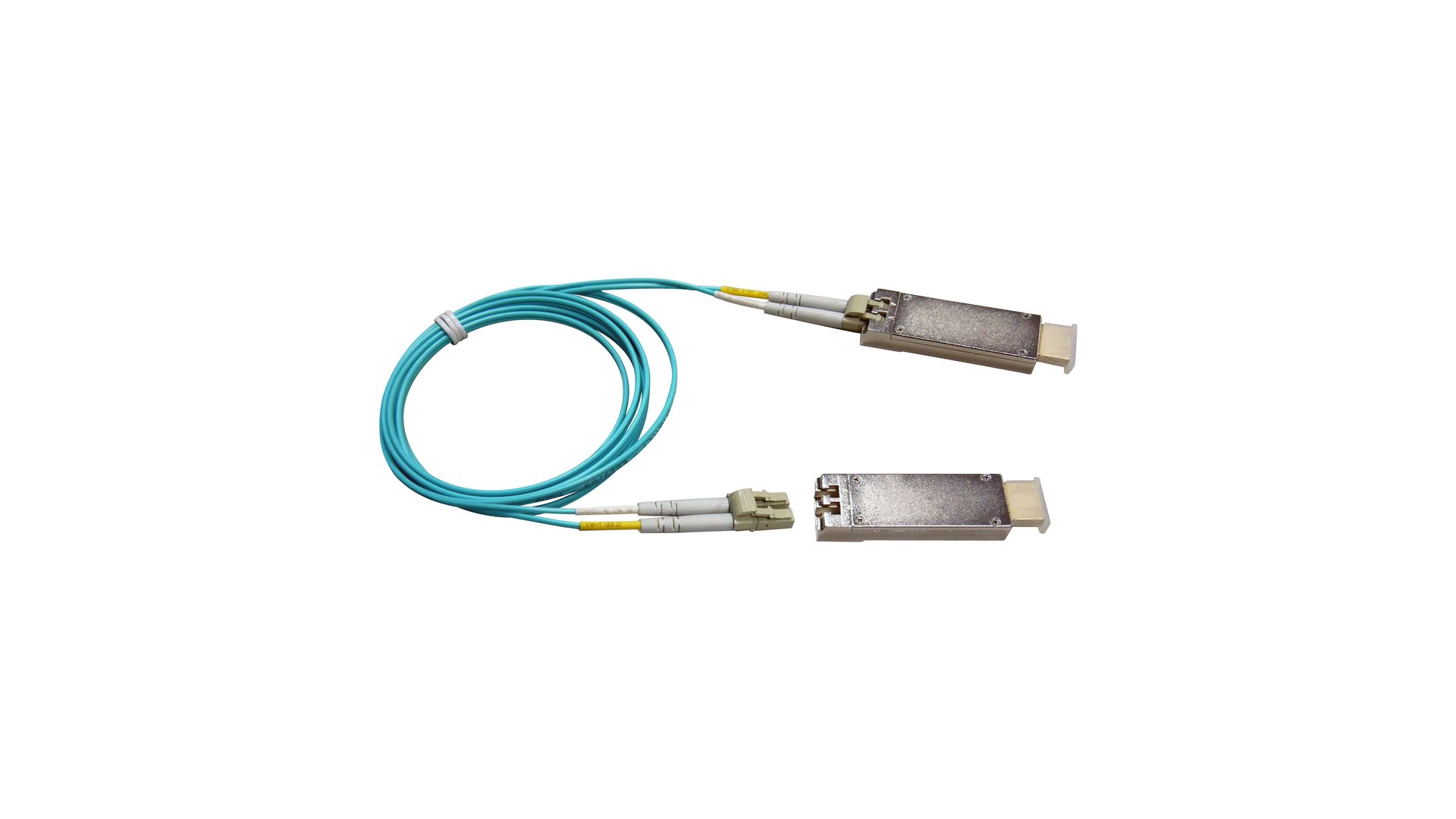

HDMI1.4a 4K @30Hz Fiber (AV) Extender 150m
HDMI1.4a 4K @30Hz Fiber (AV) Extender 150m
- HDMI 1.4a support
- HDCP support
- DDC CEC HPD signal support
- Supports the distance up to 150m
- Supports up to 10.3Gbps with OM3 multimode Fiber
- Supports all modes up to 4K x 2K x 30 resolution
- Standard HDMI connector
- Integrated USB connector for power
- Double power supply (HDMI 5V &USB)
- Hot-Pluggable
- EMI/RFI Resistant
- 850nm VCSEL and PIN Photodetector
- Duplex LC interface
- Typical power dissipation 1420mW (source), 1220mW(Sink)
- Ambient operating temperature 0~55°C
* Note: If the HDMI source and sink can provide the enough current through the HDMI 5V pin, the
USB cable is not needed.
Description
- Description
- Specification
- Download
HF-210 DATASHEET
(2023/06/21 12:01:24)
Fiber Extender Comparison
(2023/06/21 12:01:24)
