4-Port HDMI 2.0 KVM Switch w/ Audio, Mic. and USB 2.0 Hub
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
- 4-port HDMI 2.0 KVM switch with audio, microphone, USB 2.0 hub switching
- Source to End HDMI video interface
- HDMI 2.0/1.4 Specification compliant
- Unique HDMI/Audio/Mic./USB-Hub interface for multilmedia needs
- USB 2.0/USB1.1 Specification compliant
- HDCP specifications complaint
- Support digital video resolution up to 3840 x 2160@60Hz
- Support multi-platforms including Windows 7/10/11, Linux and MacOS
- Two USB 2.0 device ports for sharing high-speed USB devices
- Independent/simultaneous PC port/USB-hub/Audio&Mic. Switching
- Firmware upgradable with local distributor's technical support
- HDMI 2.0 technology supports Ultra High Definition Digital Video Quality
- Four LED Indicators for easy PC port status monitoring
- Buzzer sound for port switching confirmation
- Metal enclosure for best shielding and protection
- Description

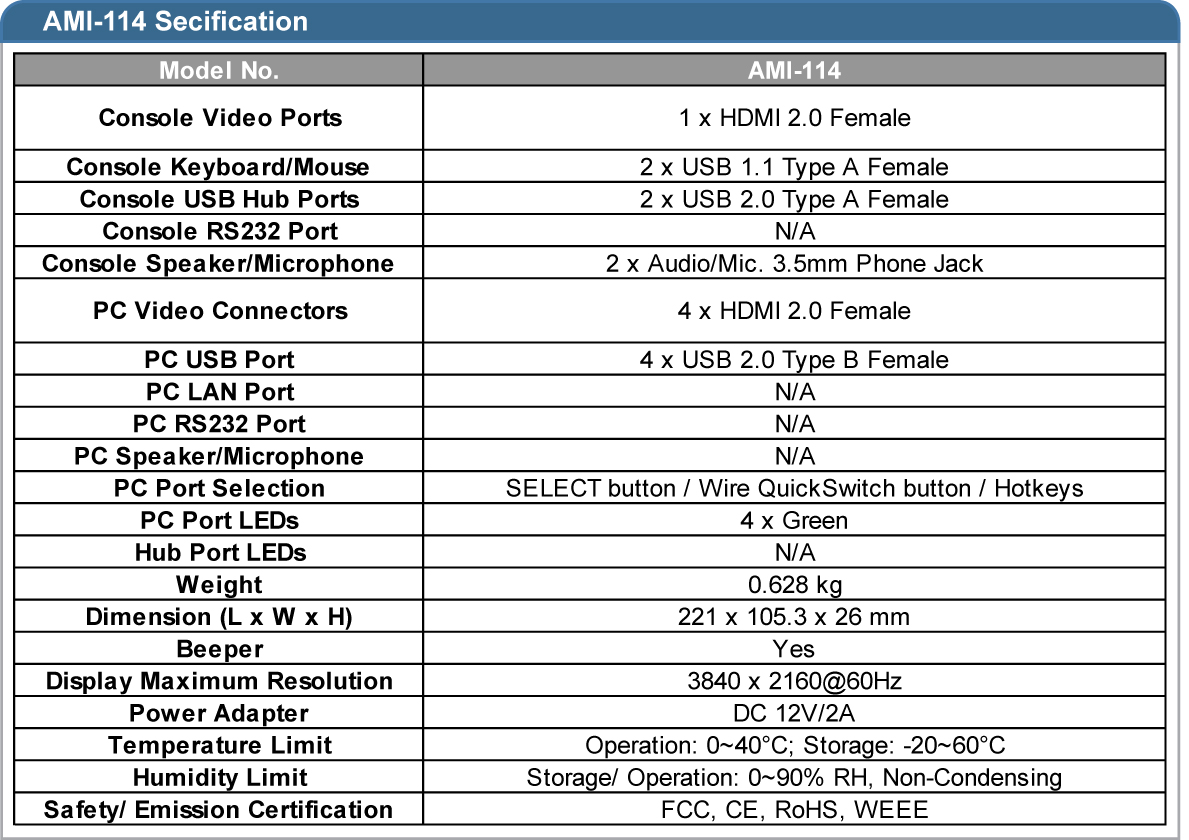

- Specification
- Download

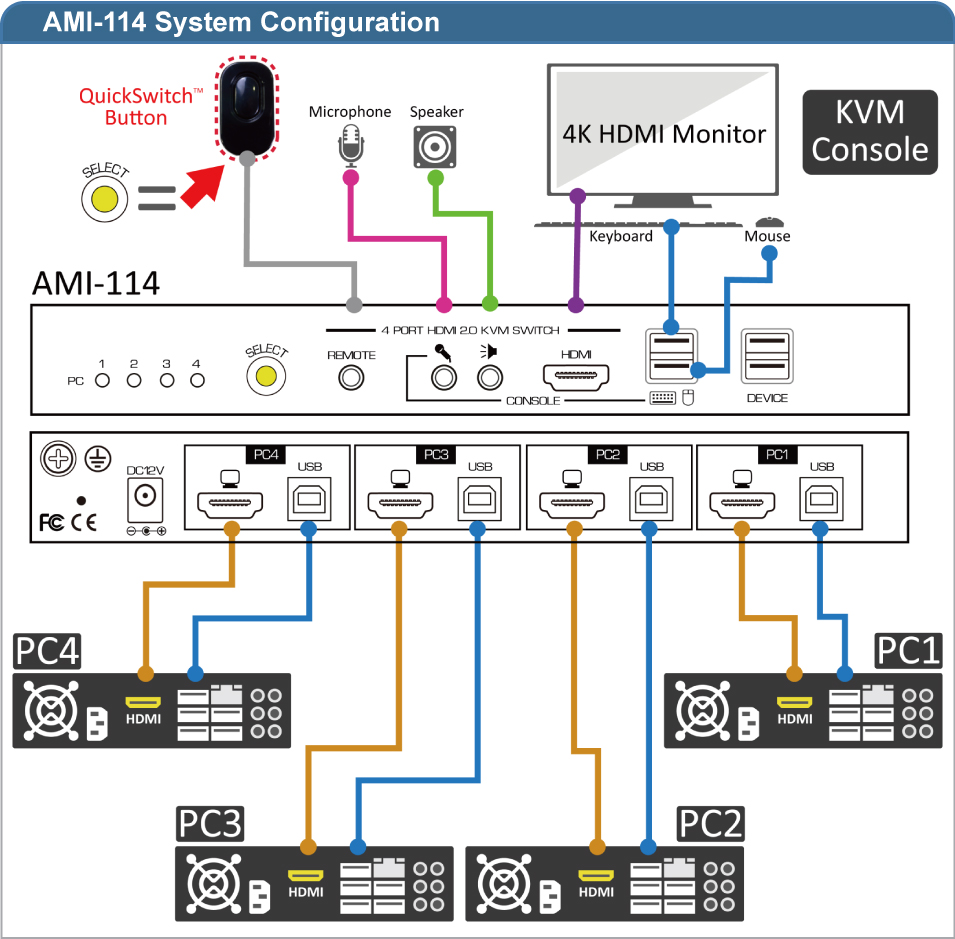

The AMI-114 HDMI 2.0 KVM Switch is specifically designed to control four multimedia computers from a single HDMI console. Users can access any of the four computers using just one keyboard, one mouse, one monitor, one microphone, and one set of speakers or headphones.

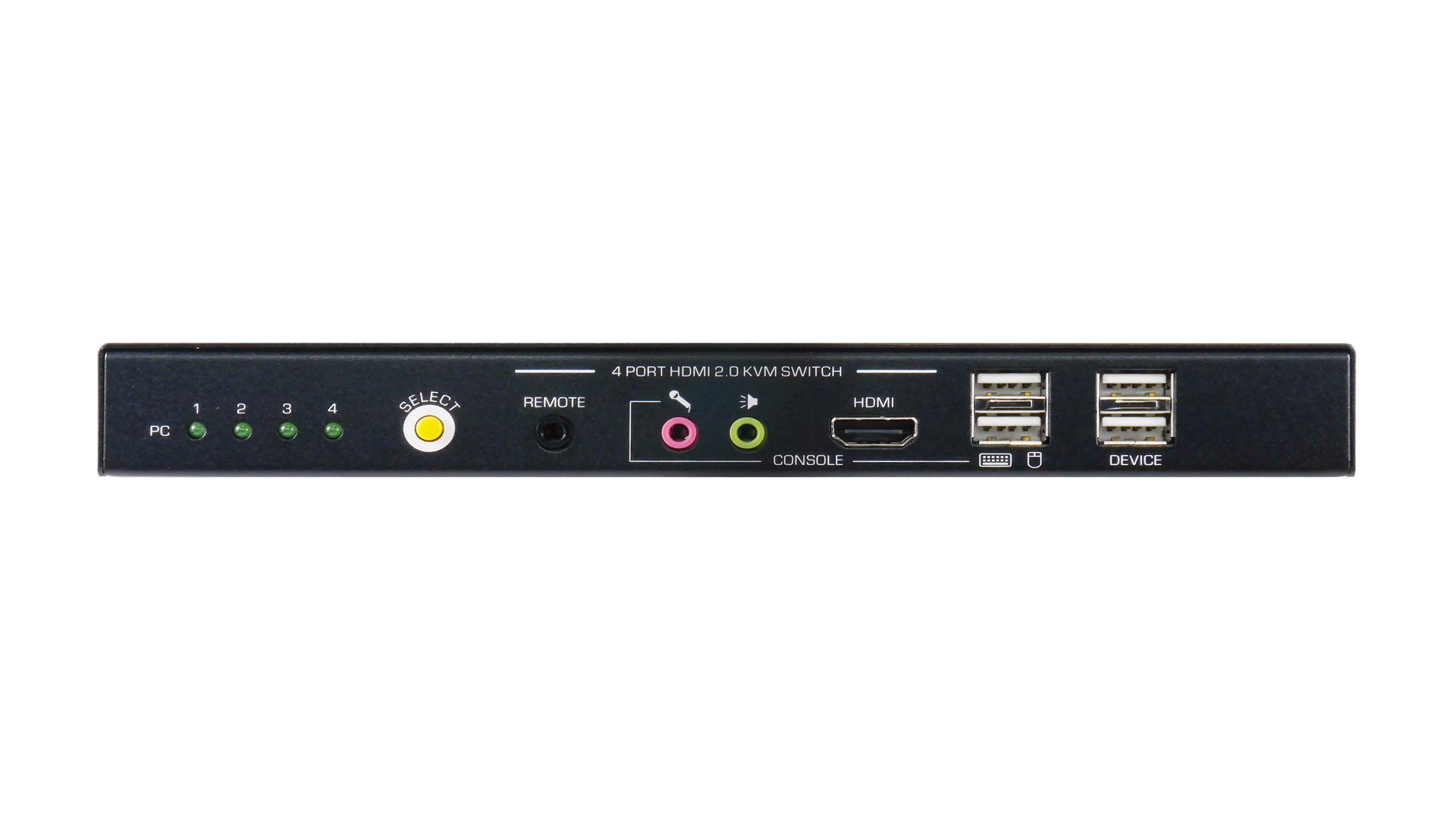

With its independent audio and microphone switching functionality, users can enjoy an uninterrupted multimedia experience while performing KVM switching. The AMI-114 supports multiple computer platforms, including Windows, Linux, and MacOS. For added convenience, it includes two USB 2.0 ports on the front panel for high-speed USB 2.0 devices.
In addition to using the panel button for PC port switching, users can perform switching via hotkeys. Furthermore, the device offers five alternative keys for free configuration, allowing users to choose a different hotkey preceding key instead of the default key.
