ACE-302M

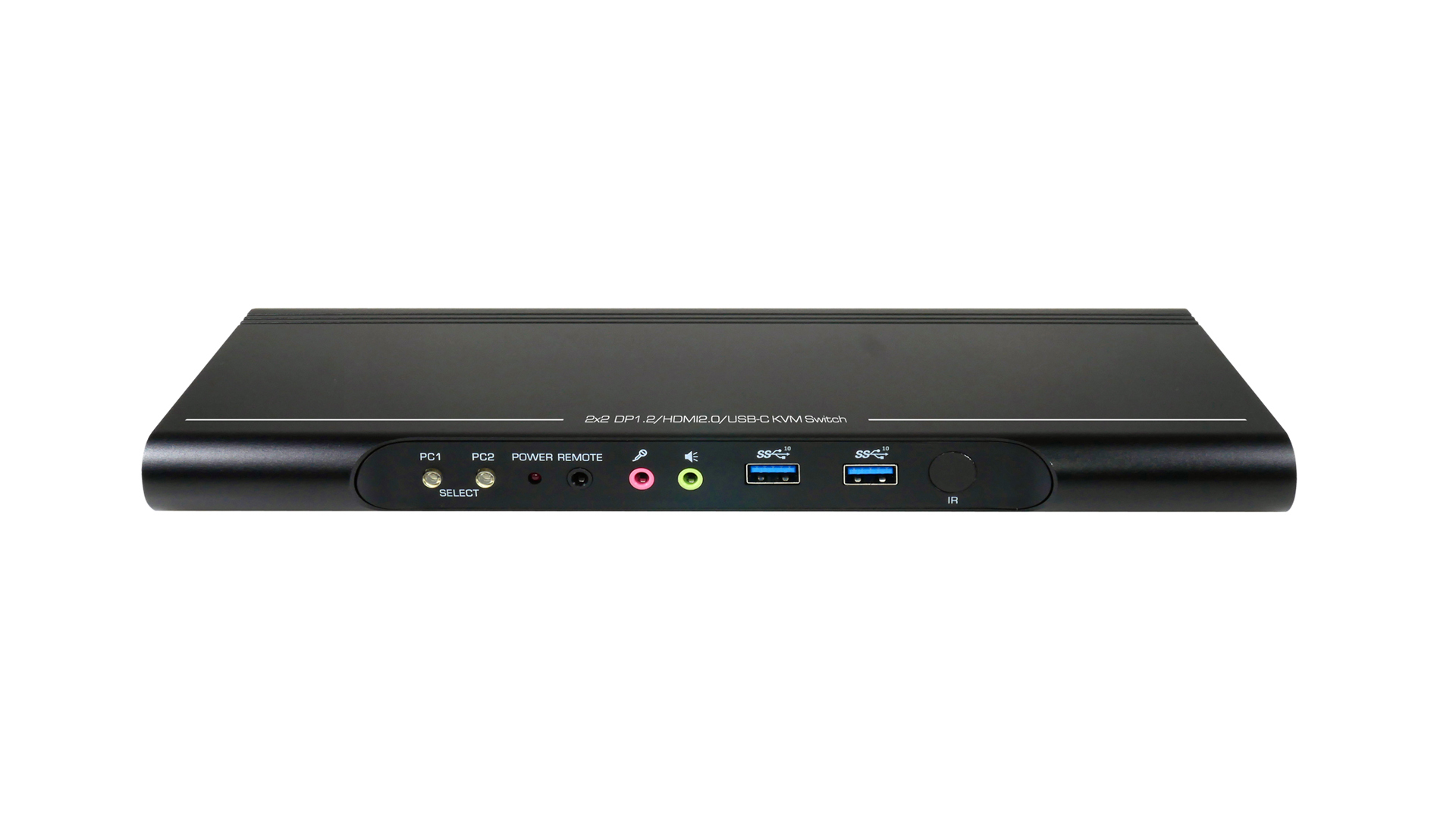

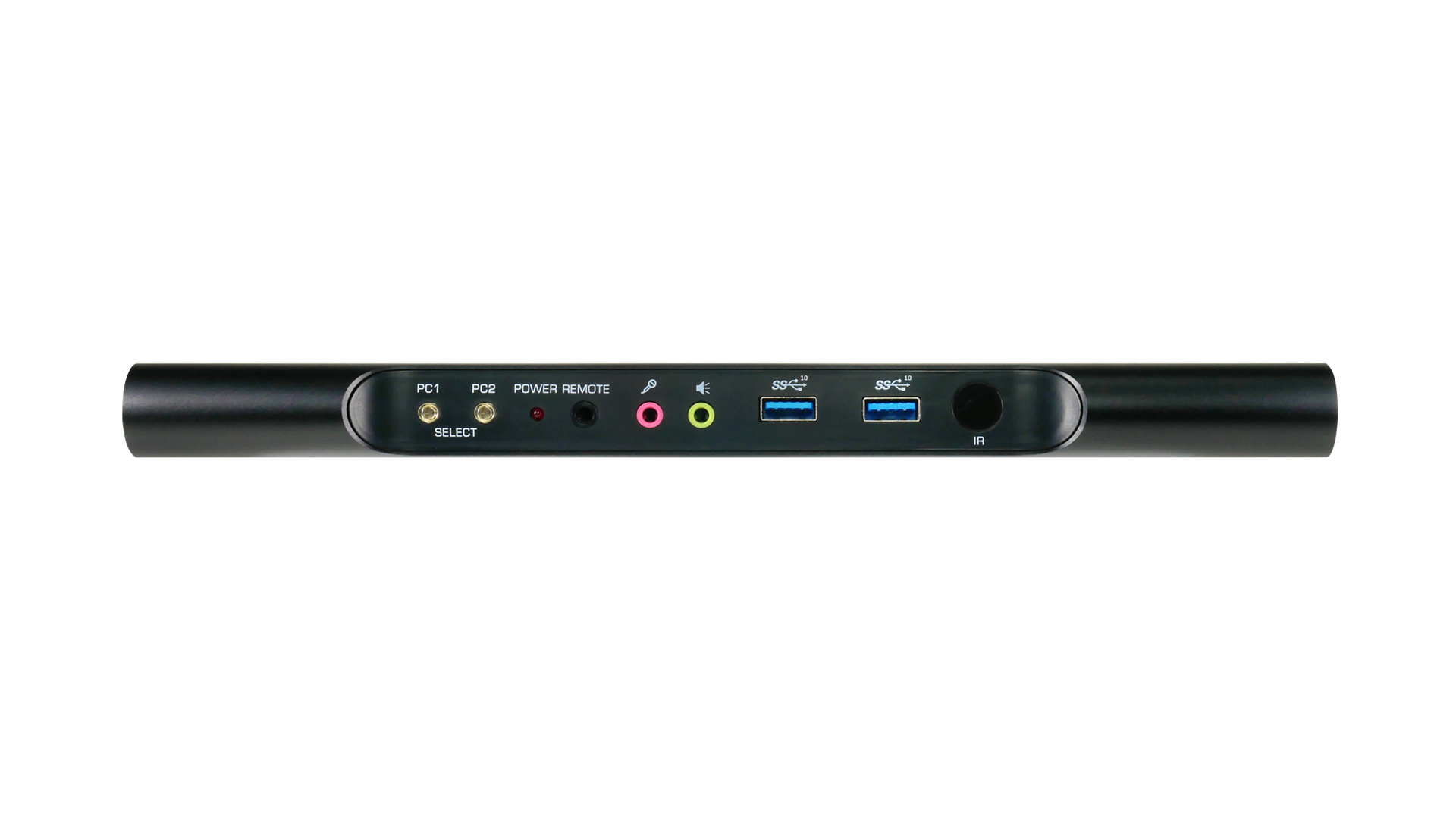

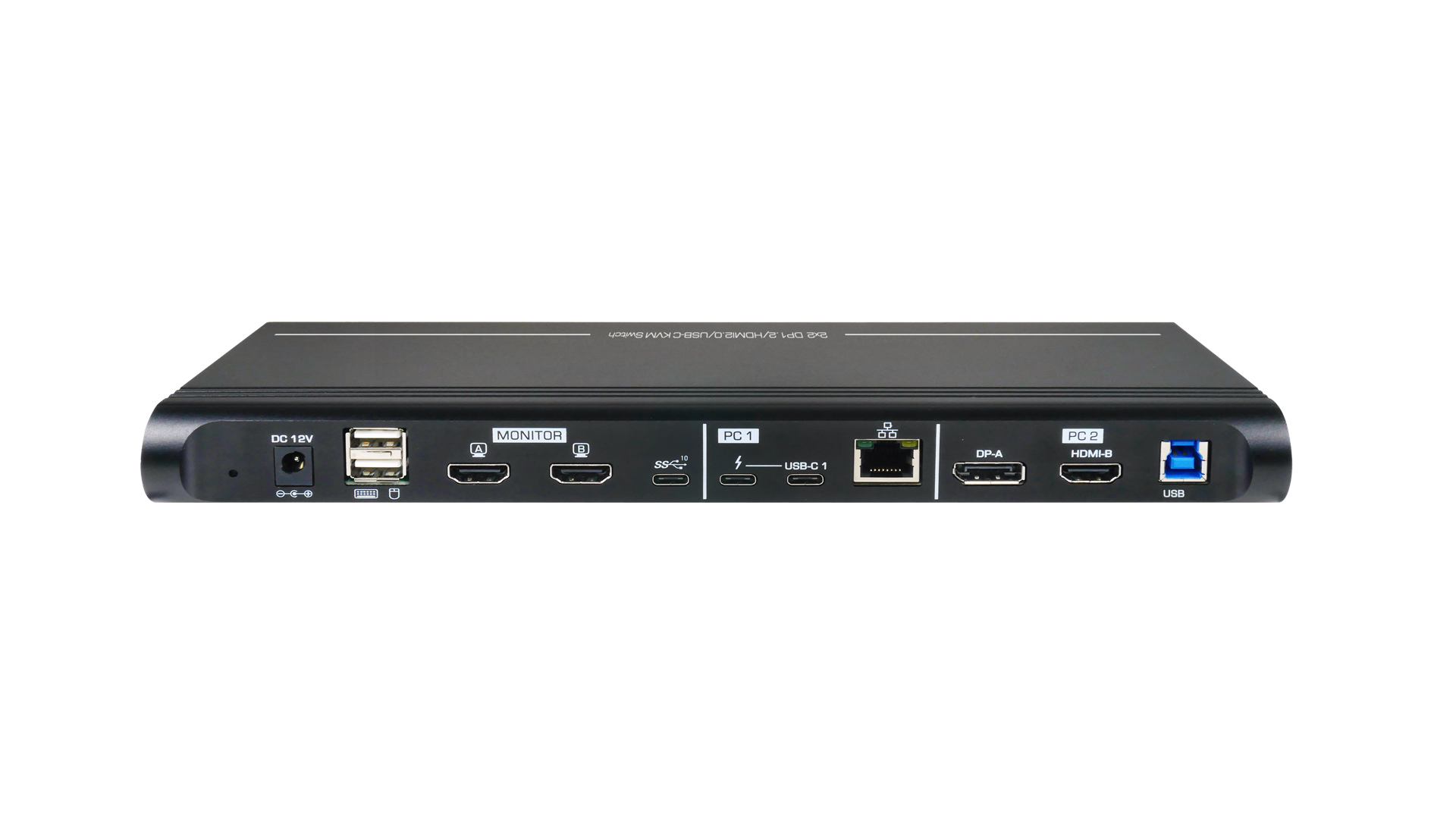

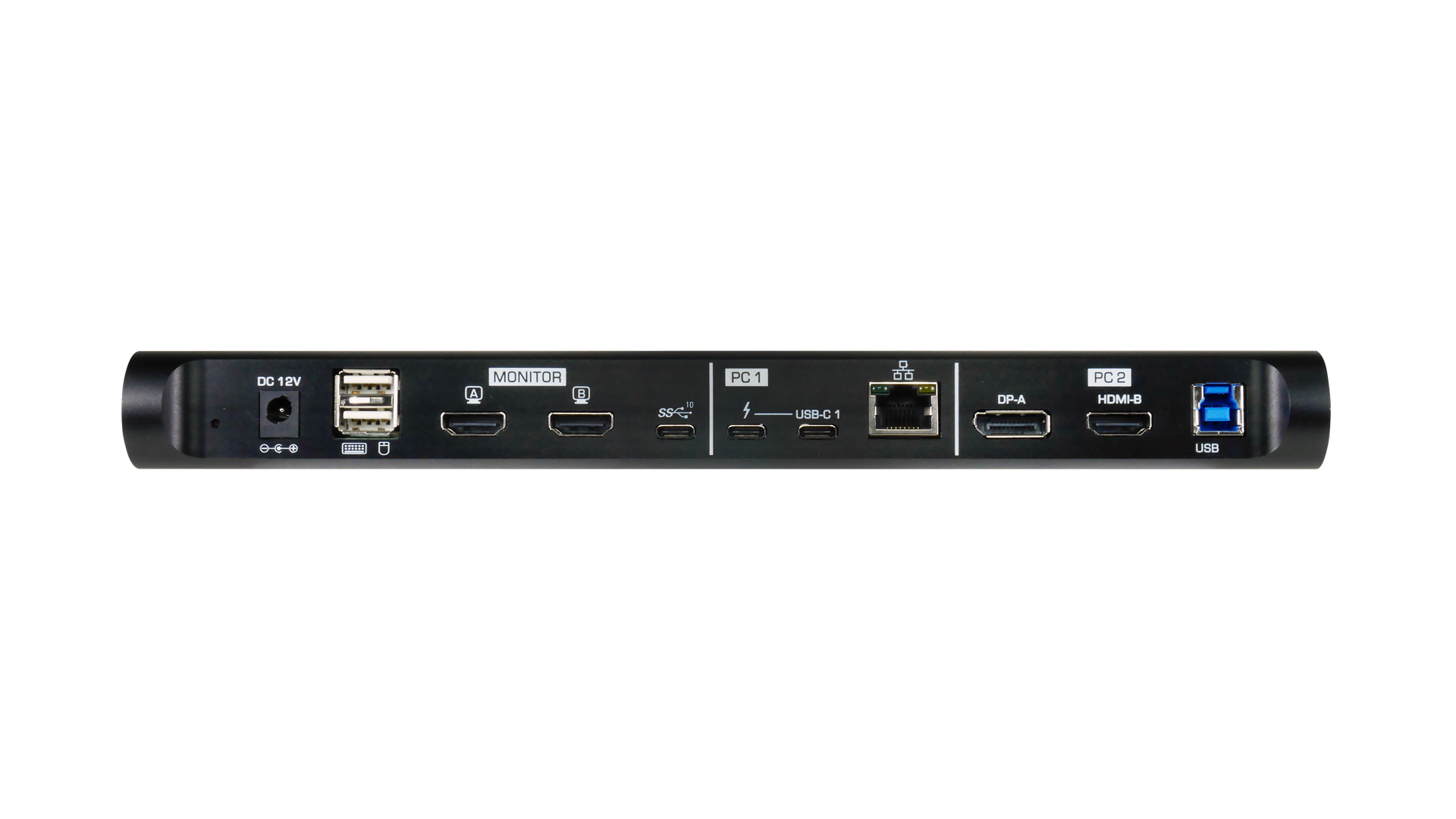

2x2 DP1.2/HDMI2.0/USB-C KVM Switch
2x2 DP1.2/HDMI2.0/USB-C KVM Switch
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
- 2-port dual-monitor DP1.2/HDMI2.0/USB-C KVM switch with 10Gbps USB 3.2 Gen 2/ Audio/Mic. Switching
- EDID Emulation ensures no hot-plug detection during some PC-port switching (*only applicable for States 1, 2, 5, and 6)
- Supports two sets of Secondary-video Focus Operations to manage two PC resources
- Thunderbolt® -enabled USB-C port of PC Port 1 supports DisplayPort MST feature
- Front panel PC1/PC2 pushbuttons or wired QuickSwitchTM button for instant PC-port switching on your fingertips (*only applicable for States 1 and 2)
- Supports Ultra High Definition Video Resolution up to 3840 x 2160@60Hz
- Compatible with DP1.2/HDMI2.0 and HDCP 2.3 Specifications
- Two dedicated USB Ports for the Console Keyboard and Mouse
- Keyboard hotkeys for various operation modes
- Supports various operating system, like Windows 7/10/11, Mac OS, and Linux
- Three USB 3.2 Gen 2 ports (2 Type-A and 1 Type-C connectors) for the Console
- Firmware upgradable via the USB Connector of the PC port 2
- Streamlined, sleek, and stylish design desktop KVM switch
Description
- Description

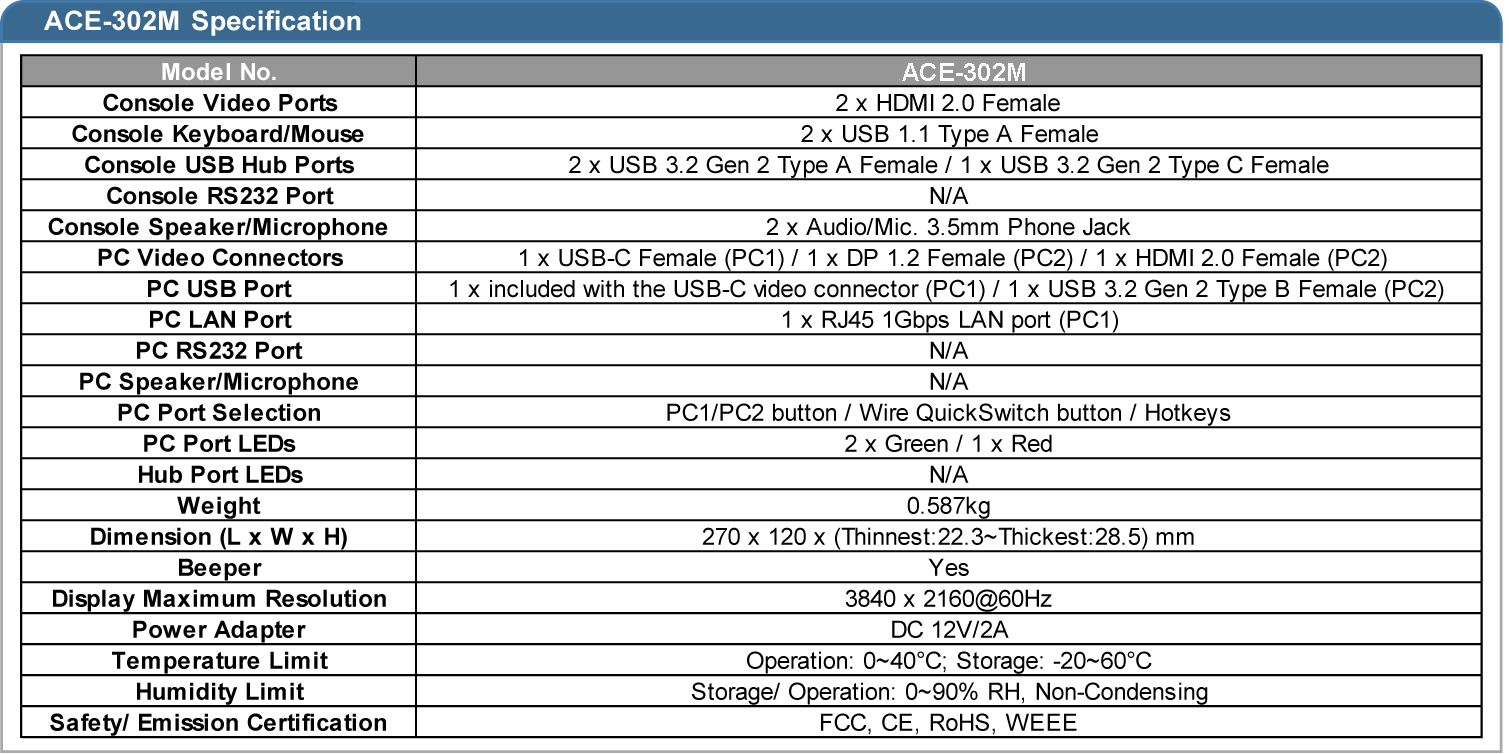

- Specification
- Download
ACE-302M DATASHEET
(2025/02/27 15:47:42)
Desktop KVM Comparison
(2025/02/27 15:47:42)
