UWH-009

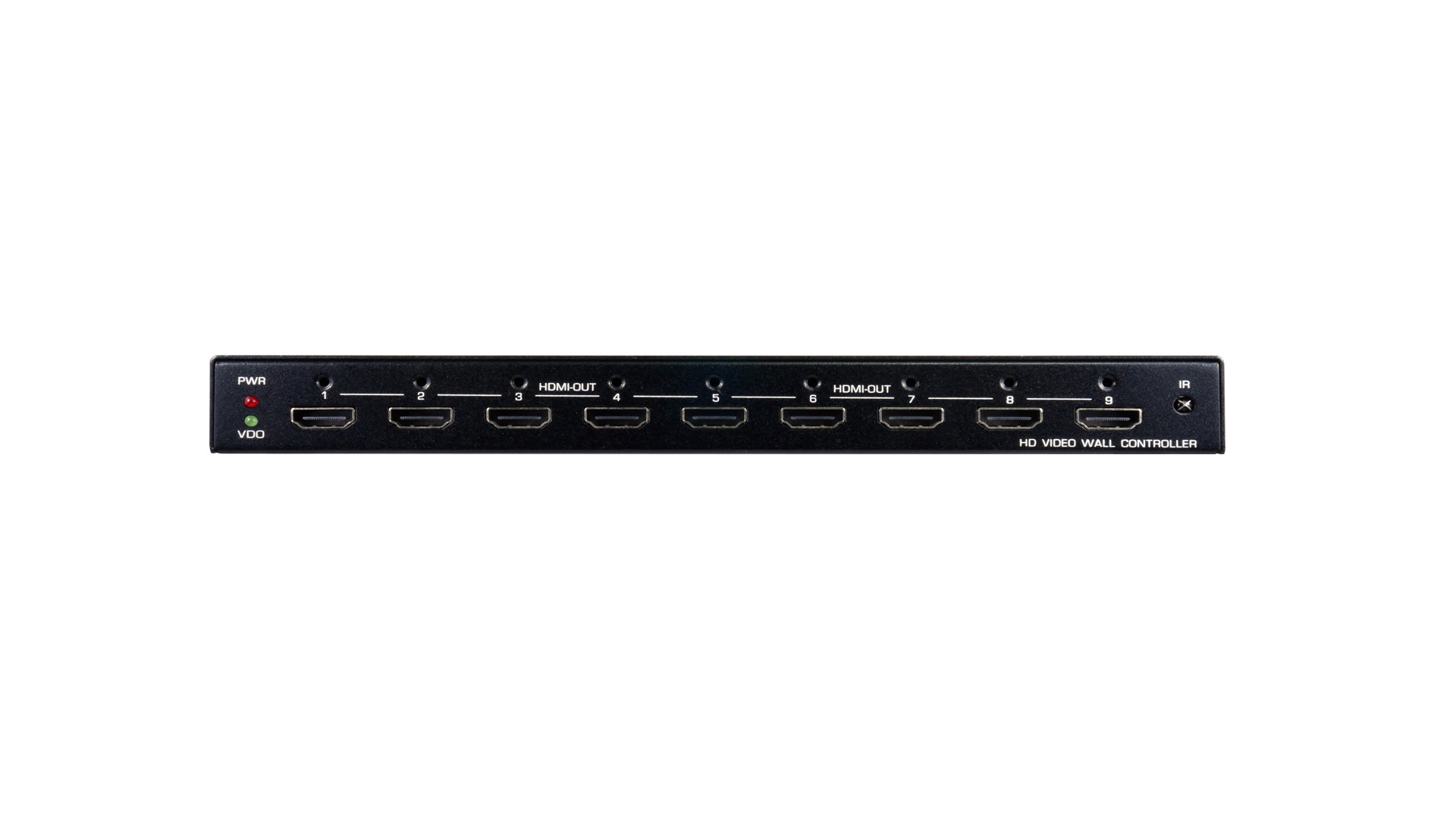

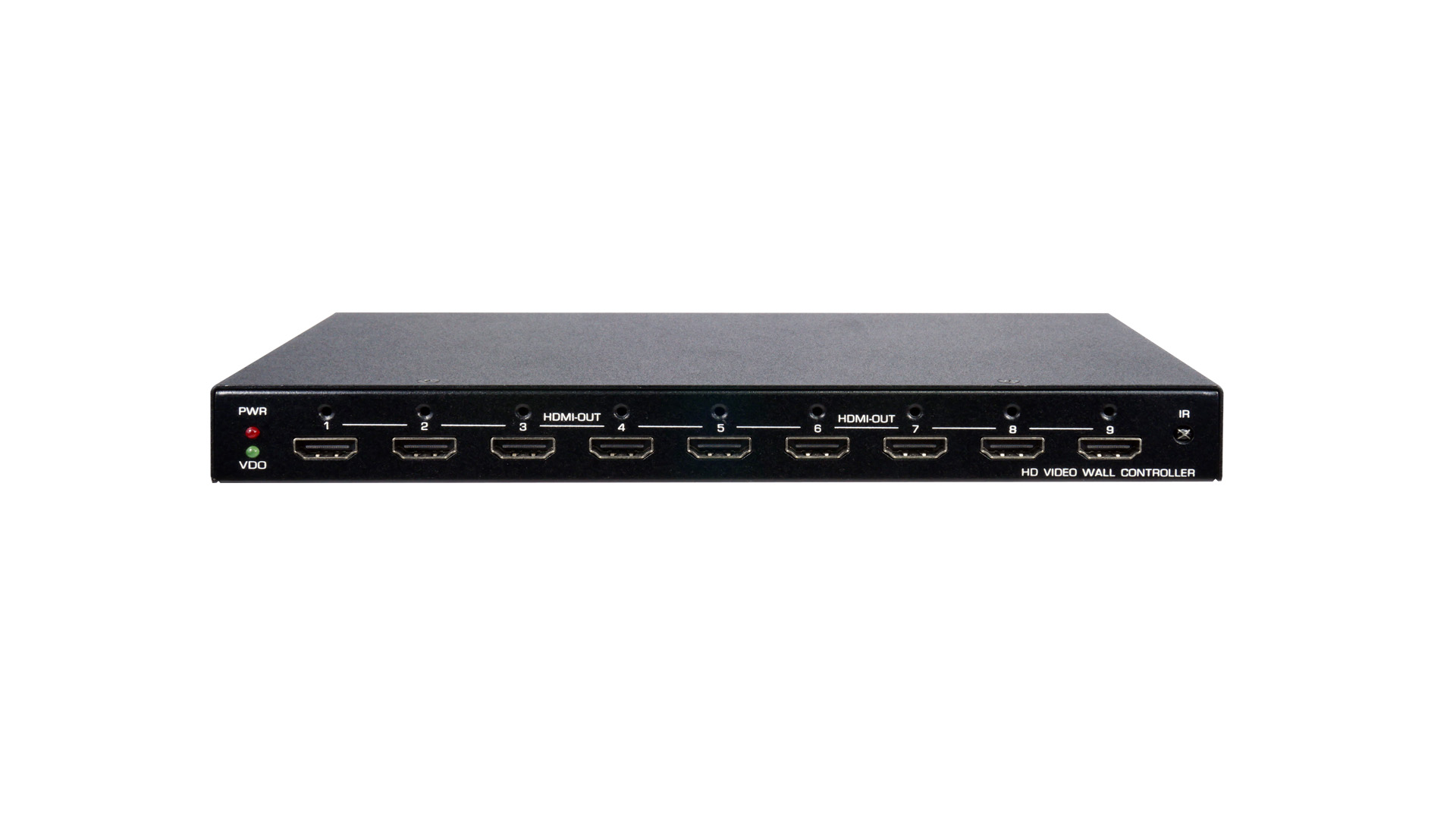

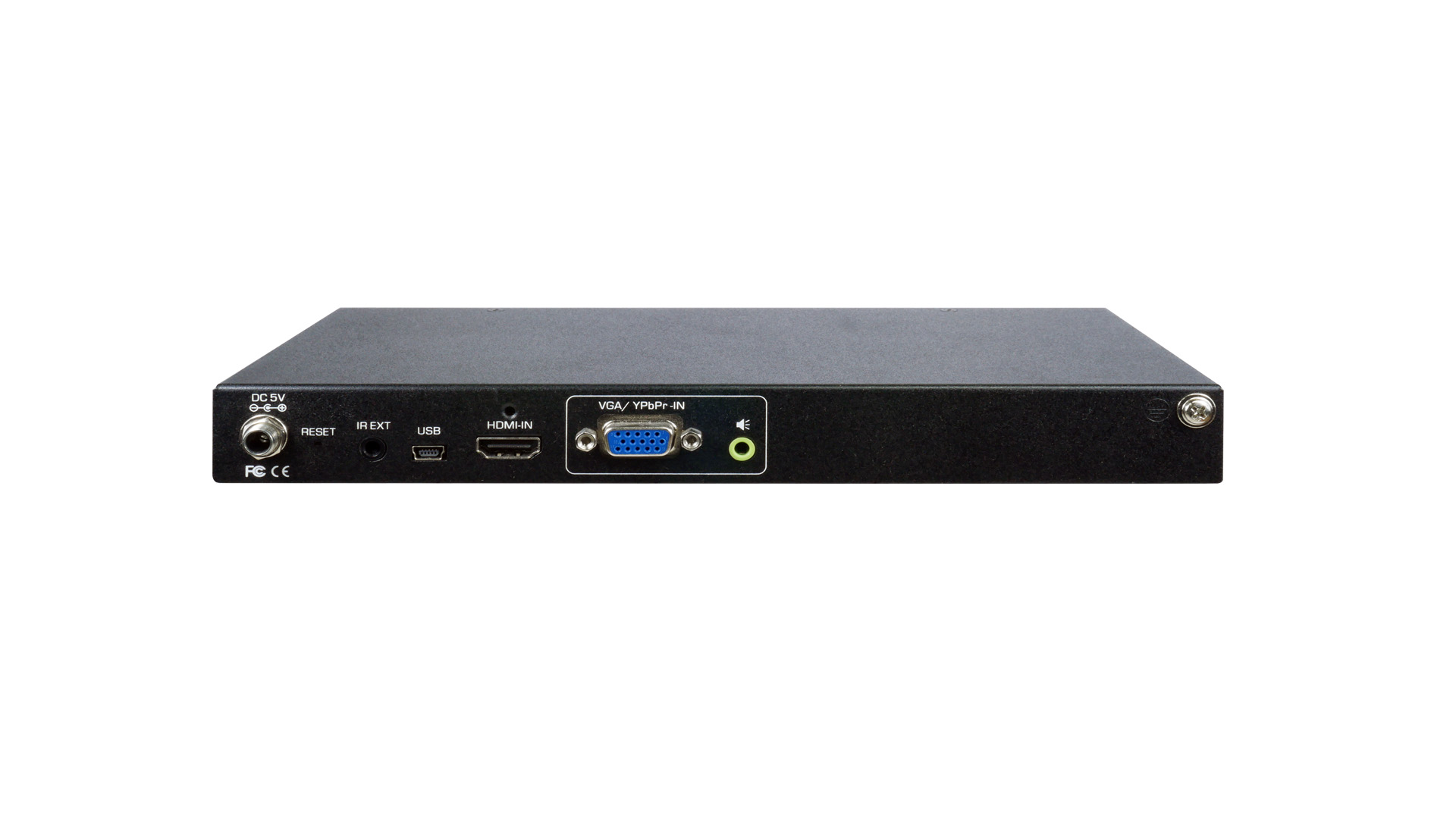

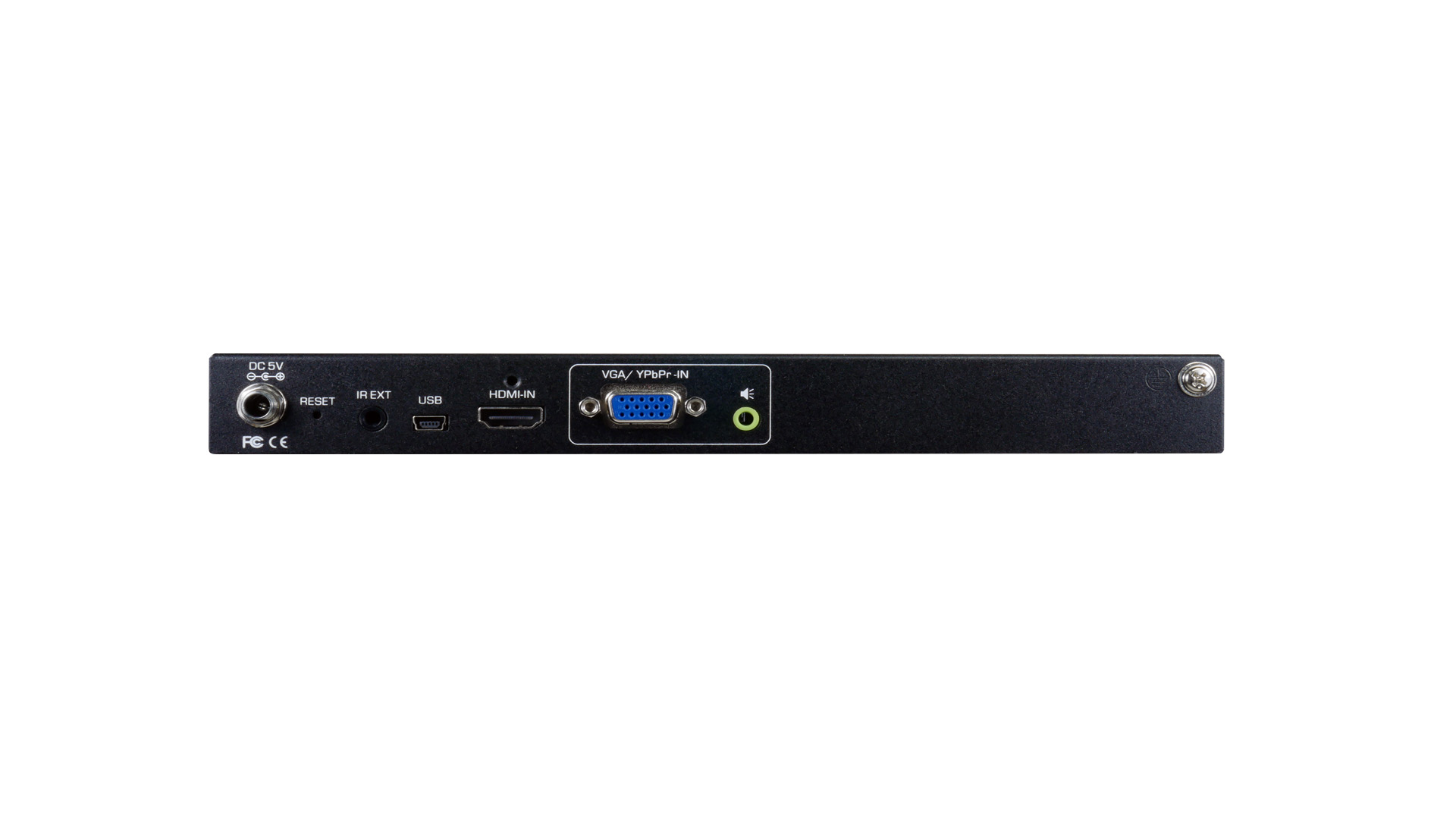

3x3 Video Wall Controller HDMI/VGA to 9 HDMI
3x3 Video Wall Controller HDMI/VGA to 9 HDMI
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

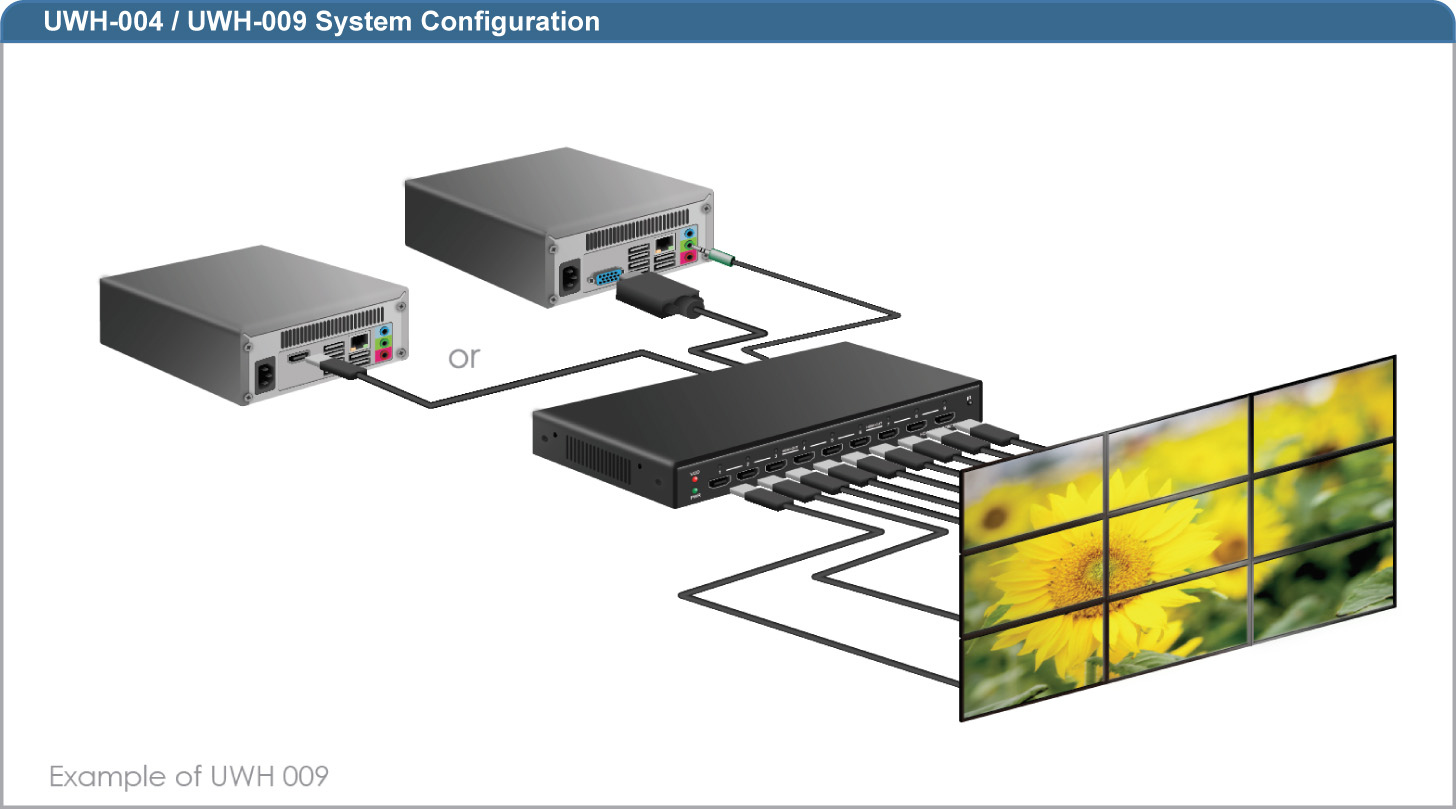

- Create a 2x2 or 1x4 / 3x3 video wall from any Hi-Def source, using four/nine HDTV displays
- Split and scale a single Hi-Def source to four/nine displays
- Input and Output resolutions up to 1080p Full HD and 1920x1200 (WUXGA) with HDCP compliant
- Advanced Bezel Compensation feature provides compatibility with virtually any screen frame width, and allows for accurate display of the image
- Easy to use on-screen Graphical User Interface (GUI)
- Advanced web server interface using an external computer
- Handheld IR remote control
- Field-upgradeable firmware via USB interface
- USB port for upgrade (reserved for future product enhancements)
- Locking power supply connector
- Wall-mountable enclosure, mount ears included
Description
- Description

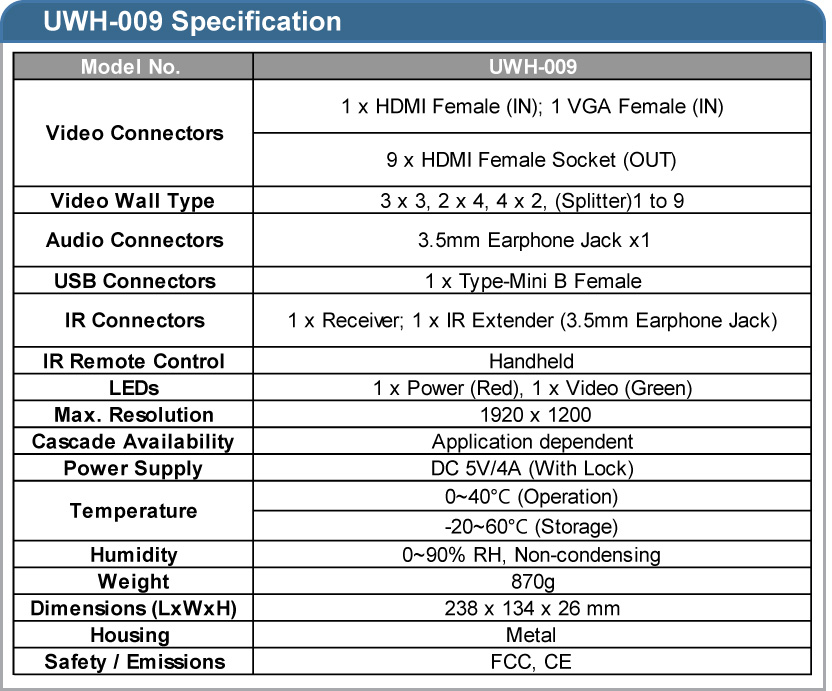

- Specification
- Download
UWH-009 DATASHEET
(2024/06/12 16:35:32)
VW Controller Comparison
(2024/06/12 16:35:32)
