AMP-302M
2x2 DP 1.2 KVM Switch
2x2 DP 1.2 KVM Switch
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

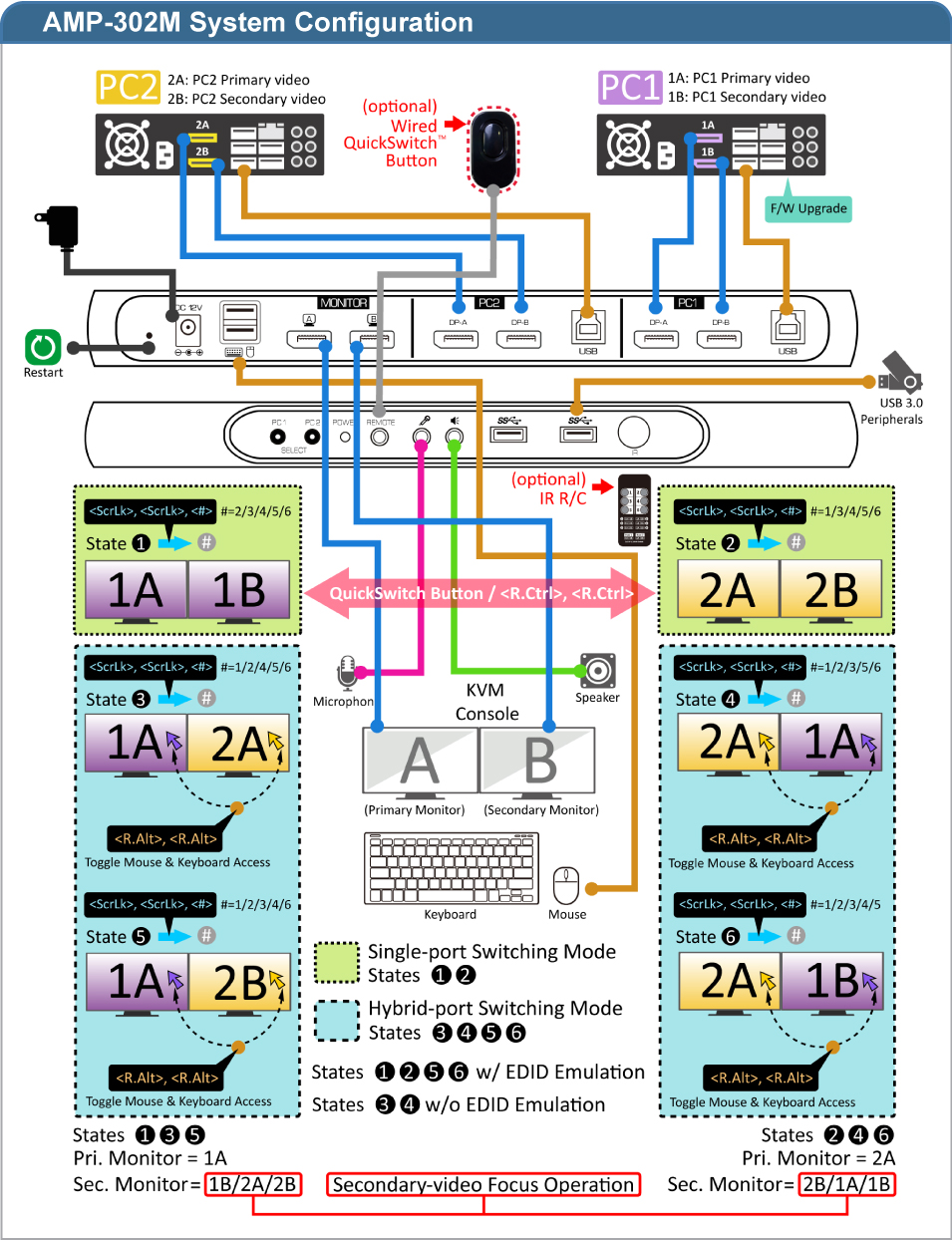

- 2-port Dual-monitor DP 1.2 KVM Switch with USB 3.0/Audio/Mic. Switching
- EDID Emulation ensures no hot-plug detection during some PC-port switching (*only applicable for States 1, 2, 5, and 6)
- Supports two sets of Secondary-video Focus Operations to manage two PC resources

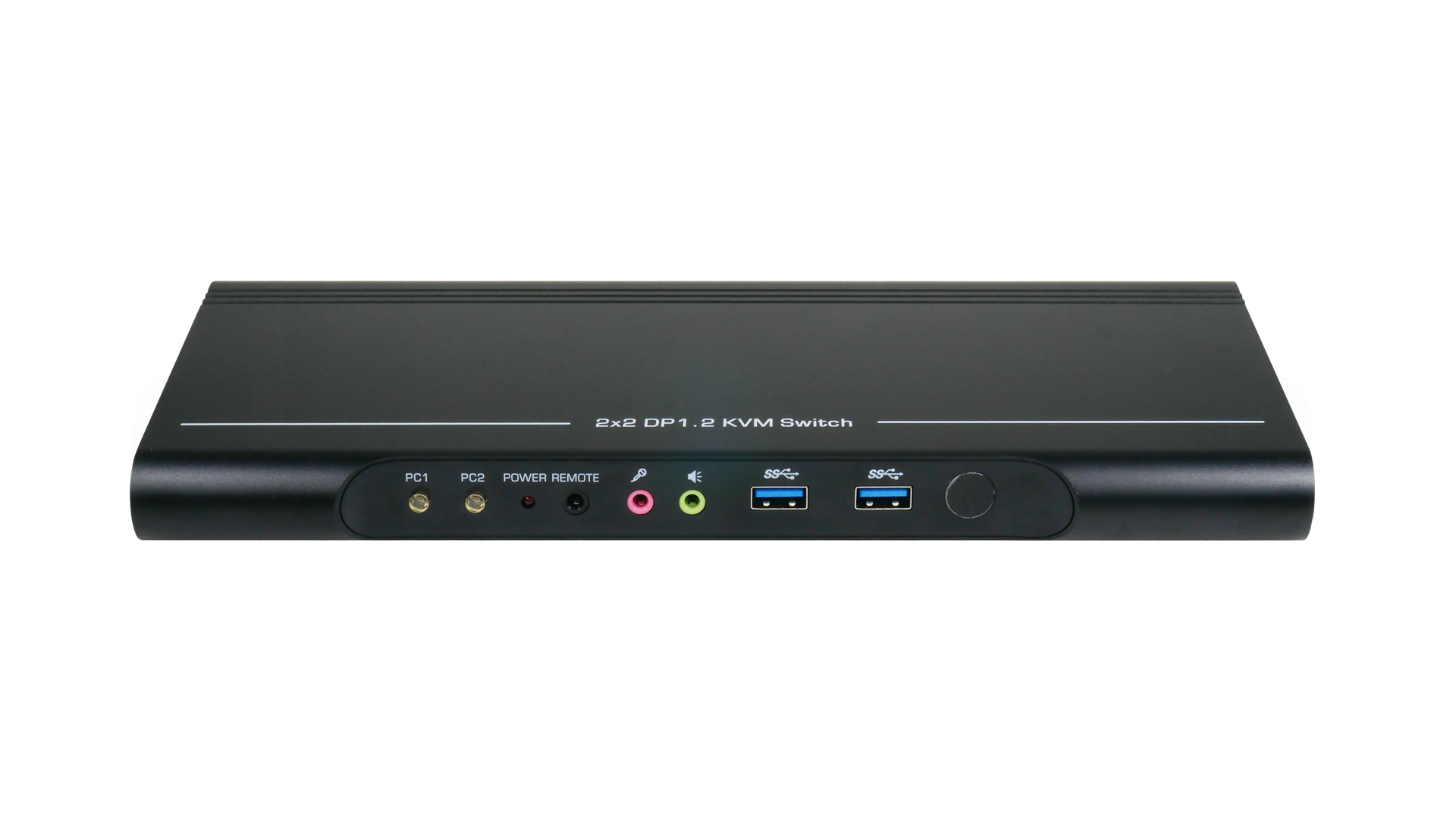

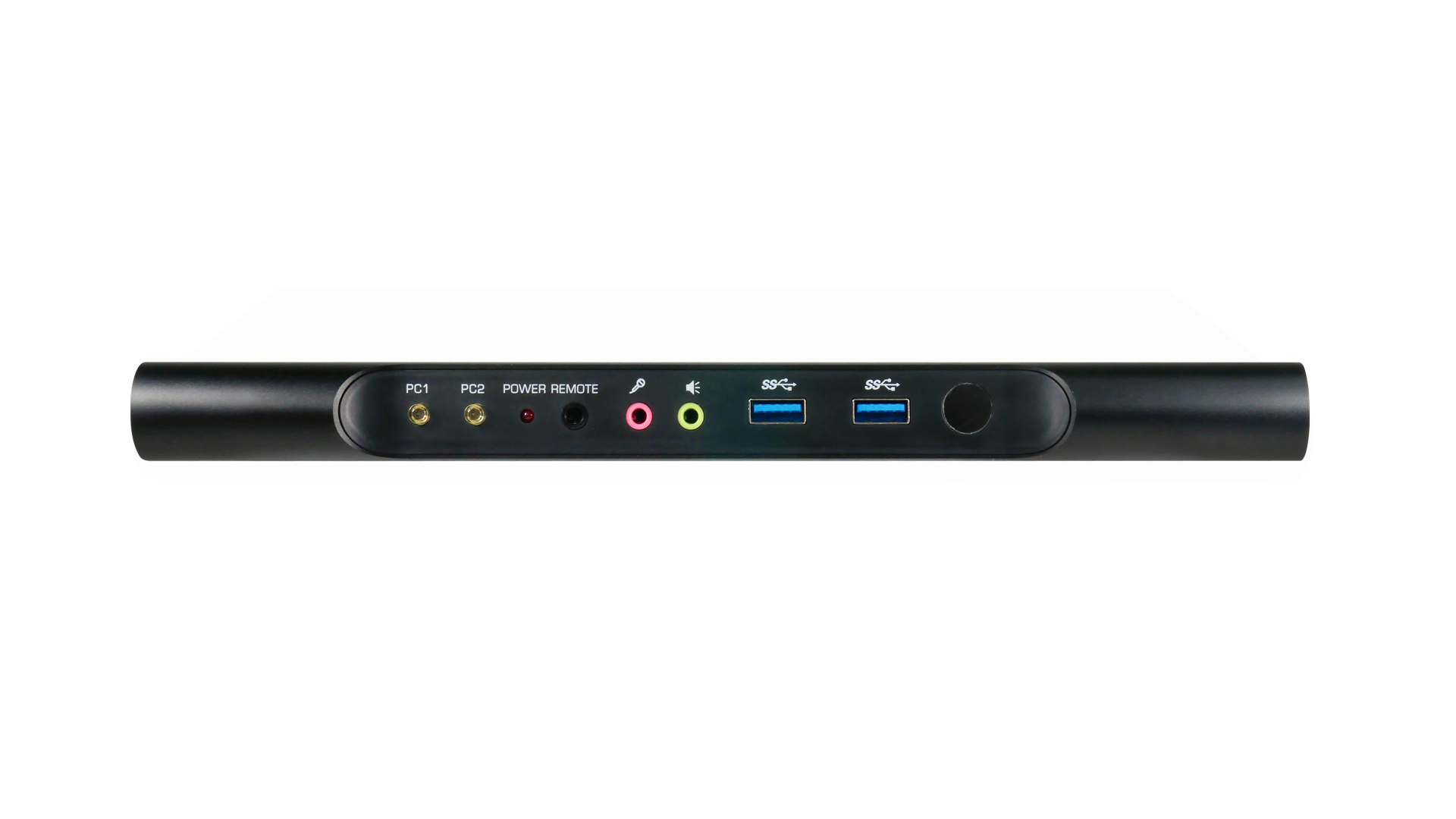

- Front panel PC1/PC2 pushbuttons or optional wired QuickSwitchTM button for instant PC-port switching on your fingertips (*only applicable for States 1 and 2)
- Supports Ultra High Definition Video Resolution up to 3840 x 2160@60Hz
- Compatible with DP 1.2 and HDCP 2.3 Specifications
- Two dedicated USB Ports for Keyboard and Mouse
- Keyboard hotkeys for various operation modes
- Supports various operating system, like Windows 7/10/11, Mac OS, and Linux
- Two USB 3.0 ports supporting High-speed USB peripherals
- Firmware upgradable via the USB Connector of the PC port 1
- LED Indicators for Easy KVM PC-port Status Monitoring
Description
- Description
- Specification
- Download
AMP-302M DATASHEET
(2025/02/19 15:09:18)
Desktop KVM Switch Comparison
(2025/02/19 15:09:18)
