2x2 HDMI 2.0 KVM Switch
.jpg)
.jpg)
.jpg)
.jpg)
- 2-port Dual-monitor HDMI 2.0 KVM Switch with USB 3.0/Audio/Mic. Switching
- EDID Emulation ensures no hot-plug detection during some PC-port switching (*only applicable for States 1, 2, 5, and 6)
- Supports two sets of Secondary-video Focus Operations to manage two PC resources

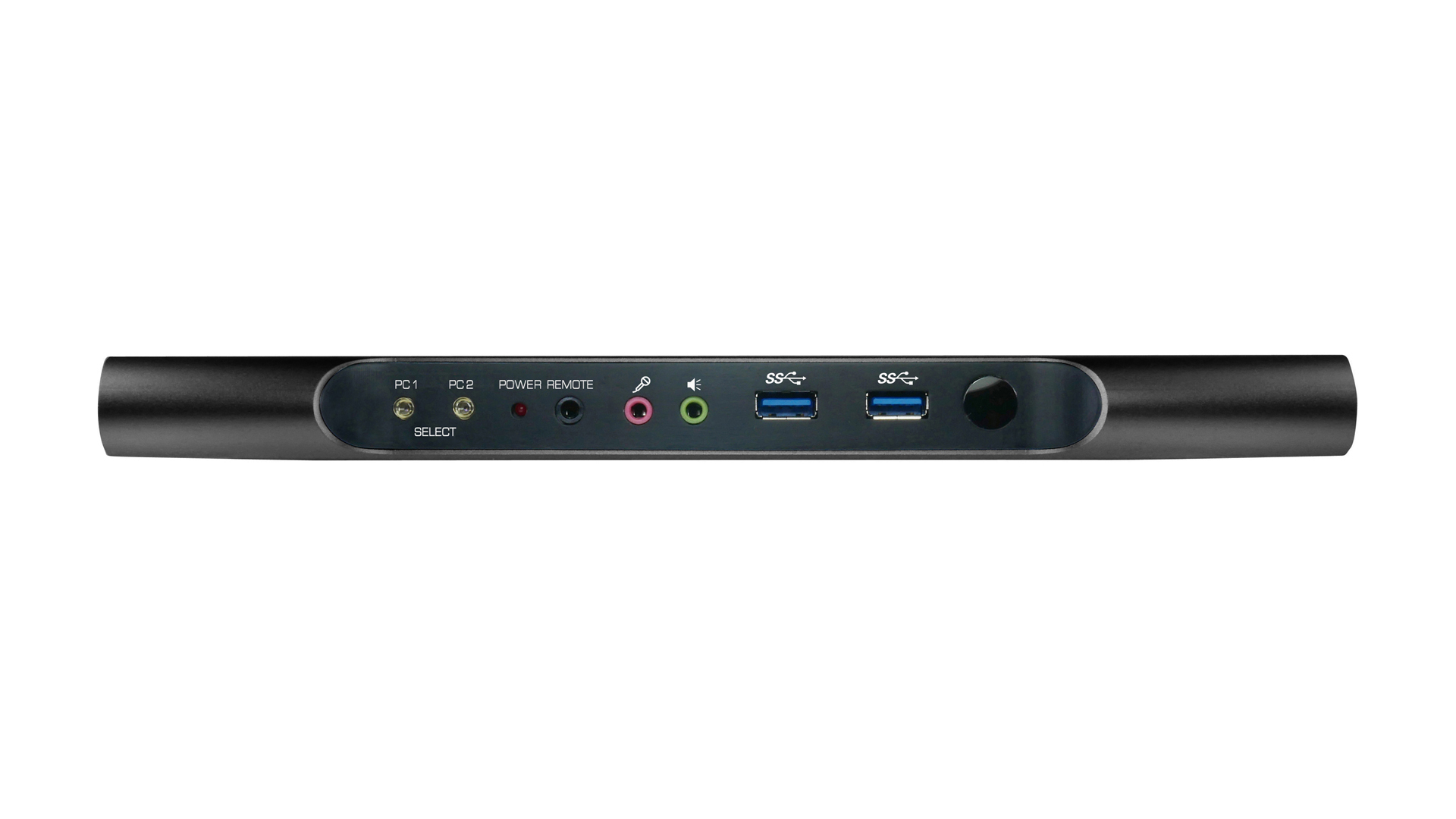

- Front panel PC1/PC2 pushbuttons or optional wired QuickSwitchTM button for instant PC-port switching on your fingertips (*only applicable for States 1 and 2)
- Supports Ultra High Definition Video Resolution up to 3840 x 2160@60Hz
- Compatible with HDMI 2.0 and HDCP 2.3 Specifications
- Two dedicated USB Ports for Keyboard and Mouse
- Keyboard hotkeys for various operation modes
- Supports various operating system, like Windows 7/10/11, Mac OS, and Linux
- Two USB 3.0 ports supporting High-speed USB peripherals
- Firmware upgradable via the USB Connector of the PC port 1
- LED Indicators for Easy KVM PC-port Status Monitoring
- Description

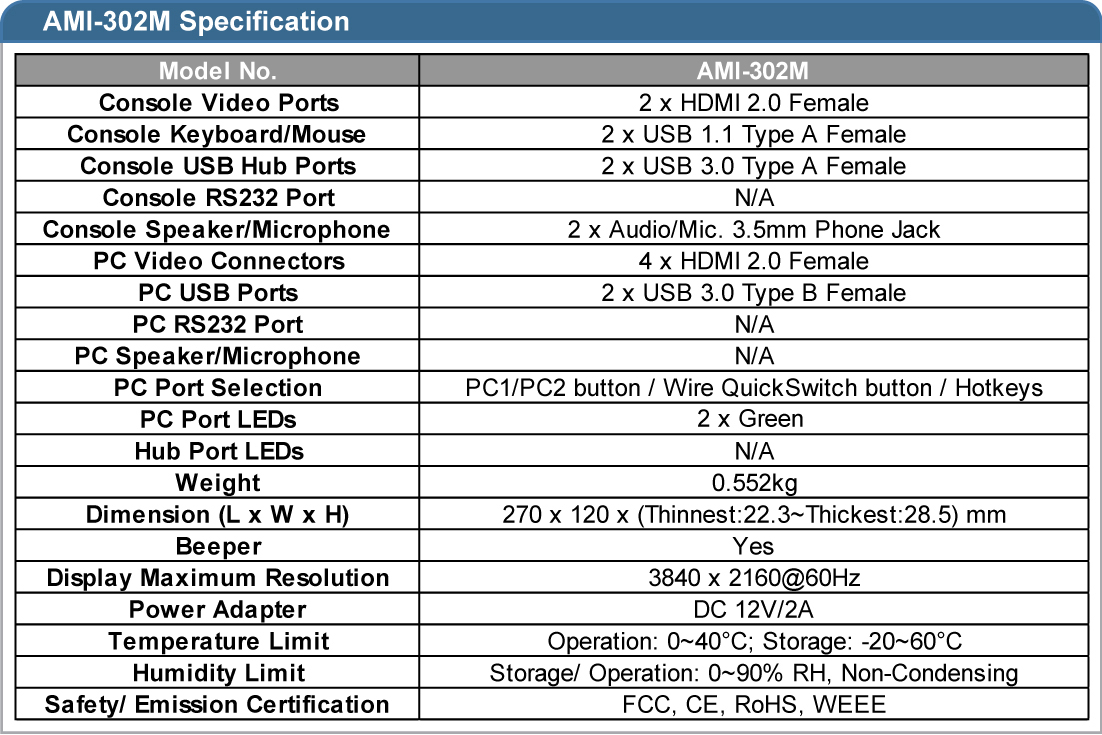

- Specification
- Download

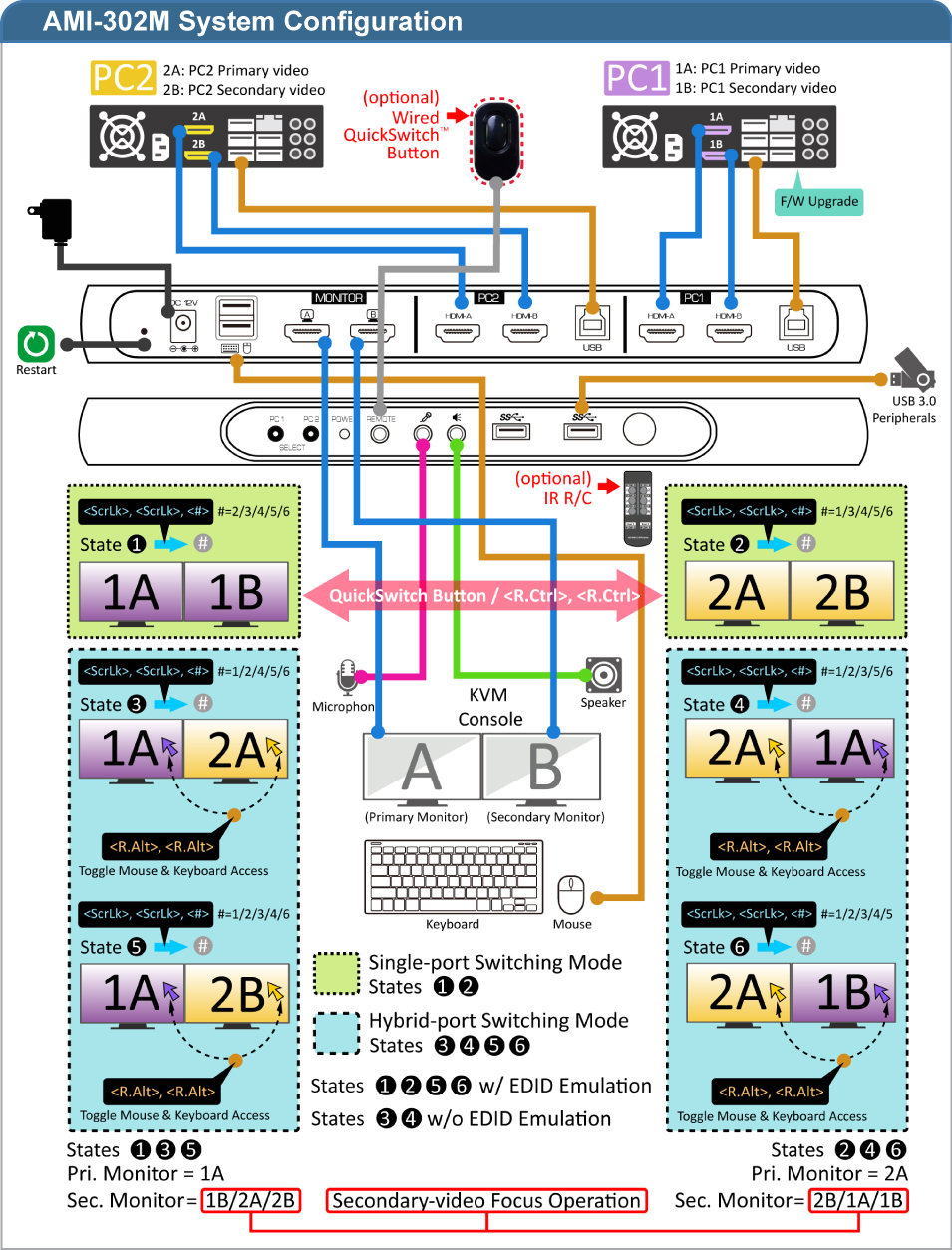

The AMI-302M is a 2-port Dual-monitor HDMI 2.0 KVM Switch, offering USB 3.0/Dual-HDMI video/Audio&Mic. console connectors. Users can effortlessly access two
HDMI-enabled computers using either of the PC1/PC2 pushbuttons on its front panel or an optional wired QuickSwitchTM button connected to its REMOTE connector. This
allows you to use a USB keyboard, a USB mouse, two 4K UHD monitors, a speaker set, and a microphone on a console for accessing either of the two HDMI-enabled
computers. For intuitive and fast switching between two computers, you can not only press the PC1/PC2 pushbuttons or the optional wired QuickSwitchTM button but also
input their corresponding keyboard hotkeys. This dual-monitor HDMI 2.0 KVM switch supports a video resolution of 3840 x 2160@60Hz, ensuring optimal display quality to
meet your specific requirements.
