1 DP 1.4 input/1 DP 1.2 & 1 HDMI 2.0 Output Splitter
.jpg)
.jpg)
.jpg)
▪ Support DisplayPort 1.2 MST mode
▪ Support main link rates up to 5.4GHz/per lane
▪ 1 DP 1.4 input to 1 DP 1.2 output and 1 HDMI 2.0 output Splitter

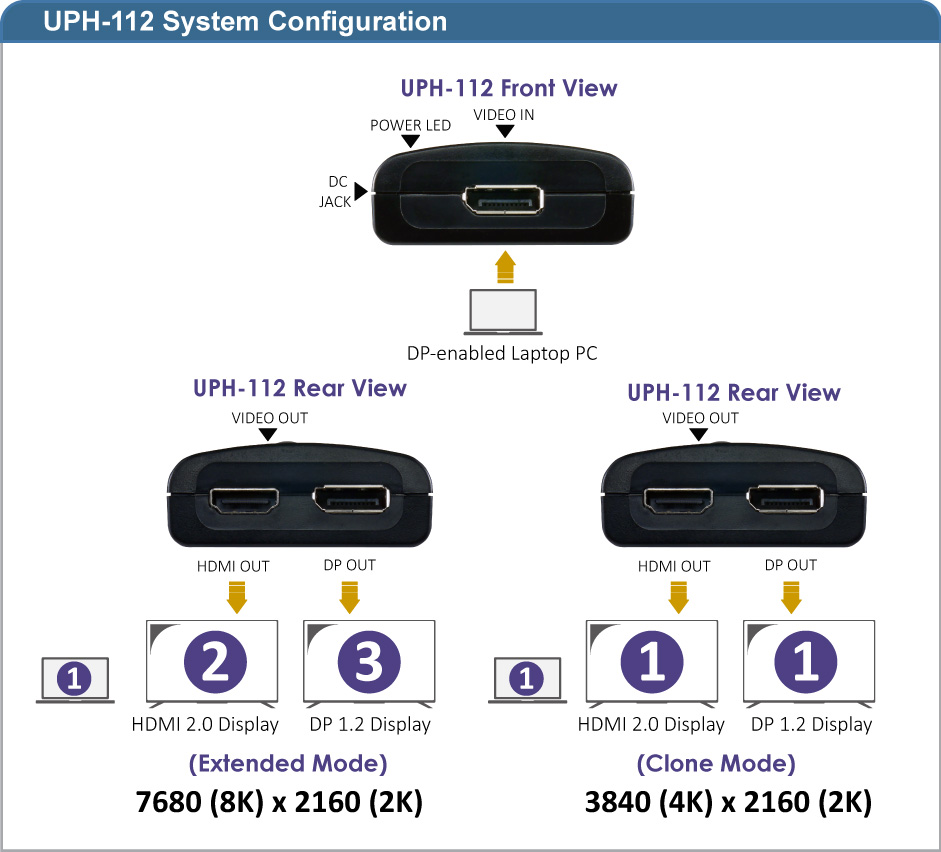

▪ Allows 2 displays to show cloned contents as the DisplayPort input source
▪ Support Extended Mode in up to 7680 x 2160 resolution
▪ Power LED indicator for power status monitoring
▪ Multi-platform support for PCs and Macintosh
▪ Plug-and-play, no extra software needed
- Description

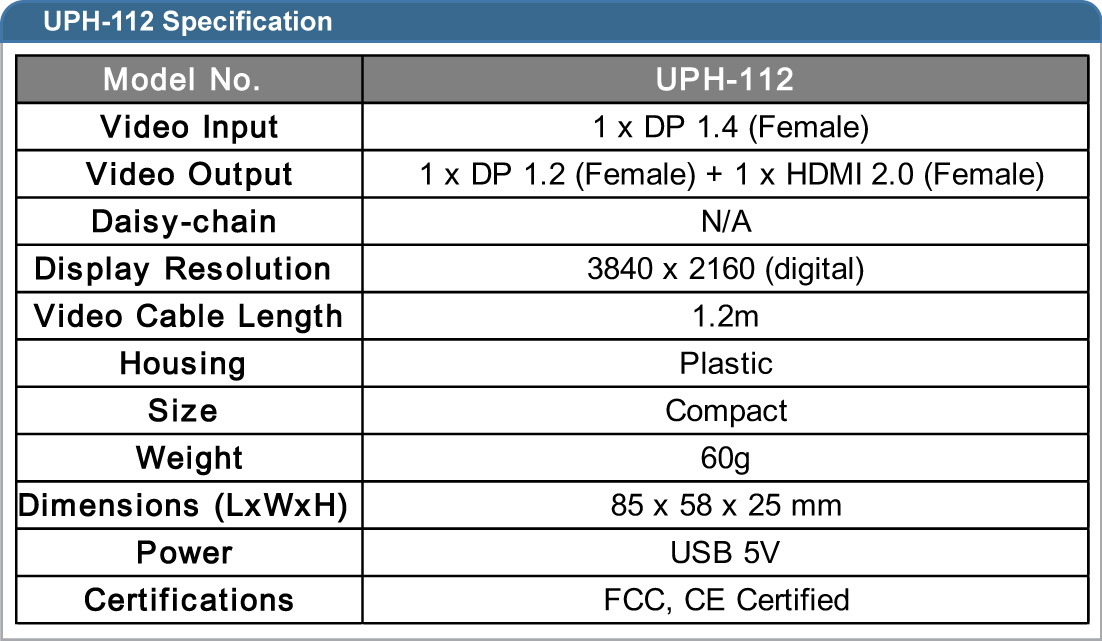

- Specification
- Download

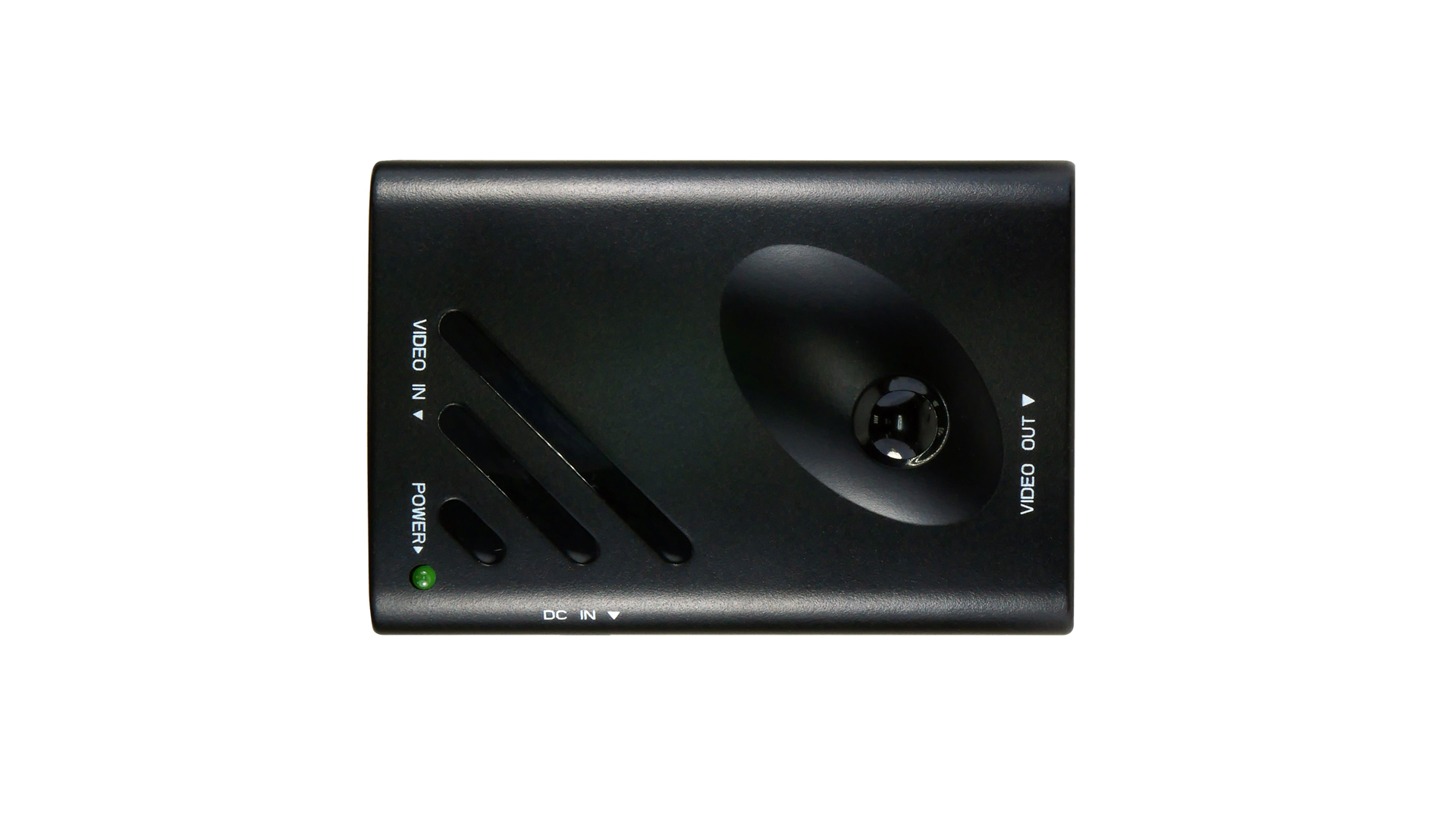

The UPH-112 is a compact splitter that distributes a signal from a DisplayPort input to two displays. With support for DP 1.2 MST (Multi-Stream Transport) mode, it allows you to stream independent video displays from a single desktop or laptop PC. The default setting of this splitter is suitable for most systems. It is easy to set up; all you need to do is connect and configure the video cable connections for the splitter unit, monitors, and computer. With this simple configuration, you can immediately enjoy the video-sharing/extension functions on multiple monitors.
