8-port HDMI 2.0 AV Switch w/ IR Remote Control
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
- 8-Port HDMI 2.0 AV Switch

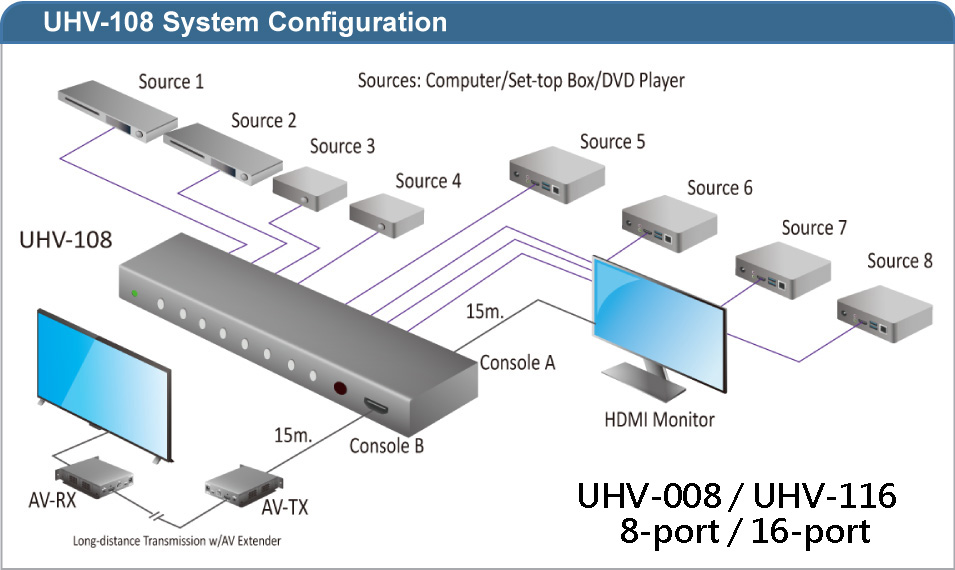

- Allows 2 UHD Displays to switch freely between 8 HDMI video sources, additionally enable one extended display output via a built-in splitter
- IR remote control for channel switching
- Supports multi-channel digital audio
- Source to end HDMI video interface
- Support digital video resolution up to 3840x2160@60Hz
- Video bandwidth up to 600MHz (18Gbps/3-channel)
- Channel switched by panel pushbuttons or IR remote control
- Supports transmission distances of up to 30m. (15m. Video IN, 15m. Video OUT)
- Support 1 additional console-port for AV long-distance extension applications
- Supports HDTV resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and 2160p
- HDMI™ 2.0/1.4/1.3b, HDCP 2.2/1.4 compliant
- Compliant with HDMI-enabled devices such as Set-top-Box, Computers, UHDTV, and Blueray DVD, etc.
- Simple Plug-and-play, desktop-type design and no software needed
- Description

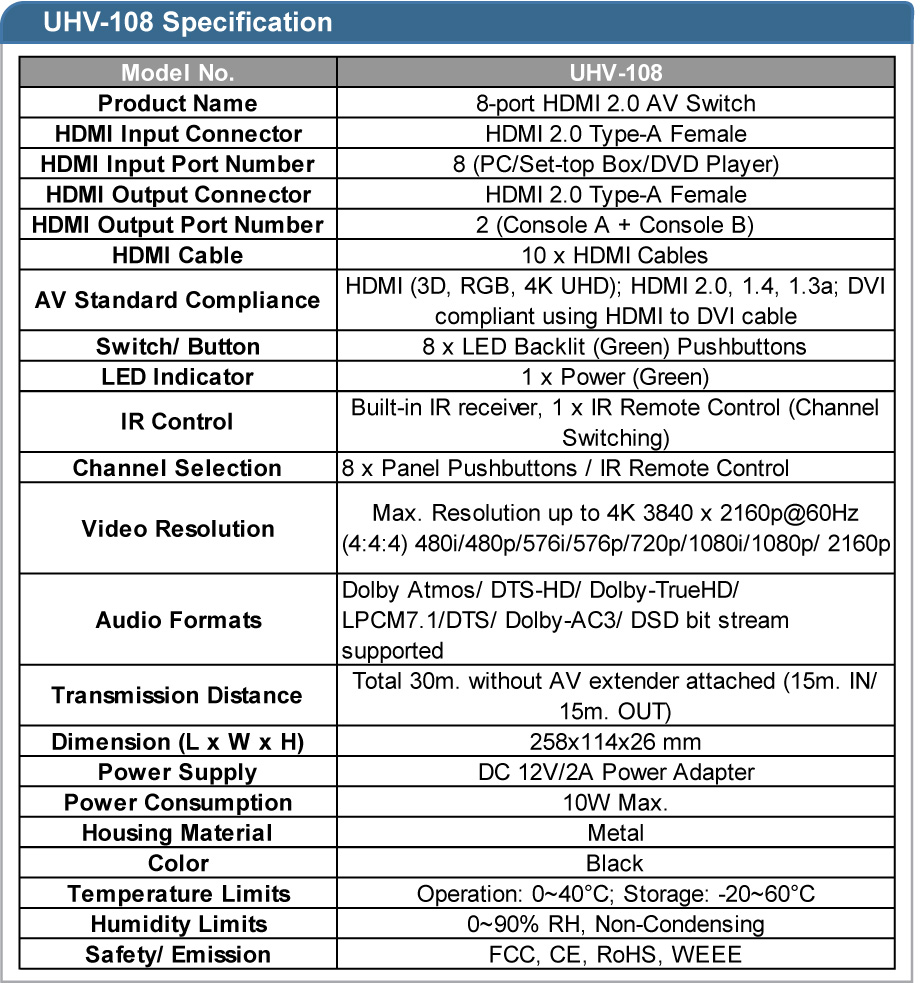

- Specification
- Download
The 8-port HDMI 2.0 AV Switch is a standalone device, having 8-port HDMI inputs & 2-port HDMI outputs, designed to share up to 8 video sources using a local video output connector and an additional splitted extension video output connector. It complies with the HDMI 2.0 connectivity standard capable of displaying resolutions at 4K@60Hz without any major lays or FPS loss. The 8-port HDMI 2.0 AV Switch offers a video bandwidth of up to 600MHz (18Gbps/3-channel), supporting a resolution of up to 2160p. It allows one HDMI-enabled UHD display to freely switch between 8 HDMI video sources simply by tapping on the unit panel pushbuttons or using the IR remote control. The high-definition image quality offered by HDMI 2.0 technology stays crisp and clear throughout. It is absolutely your ideal solution for Ultra-HD contents display for video presentation and enjoyment.
