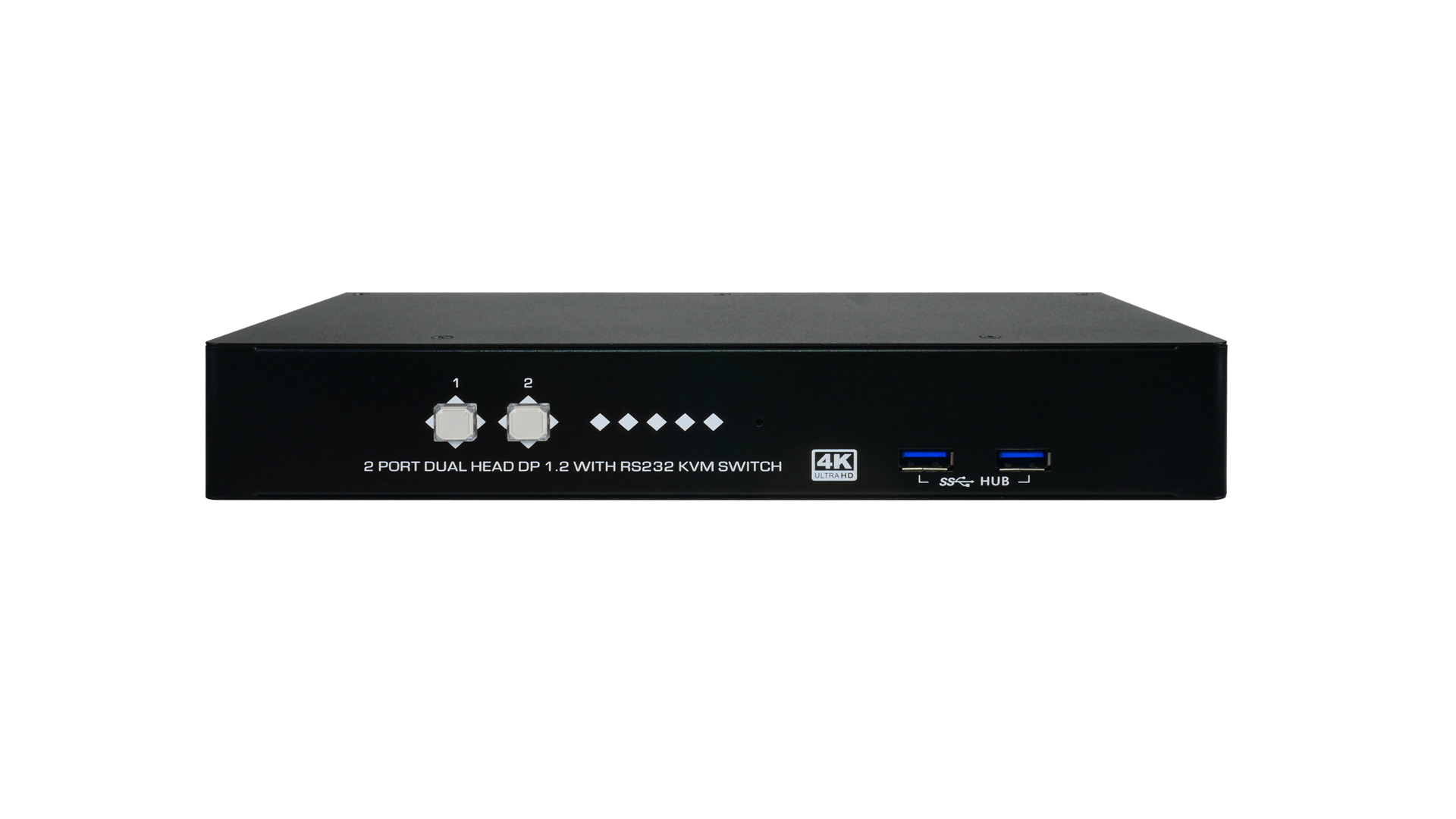

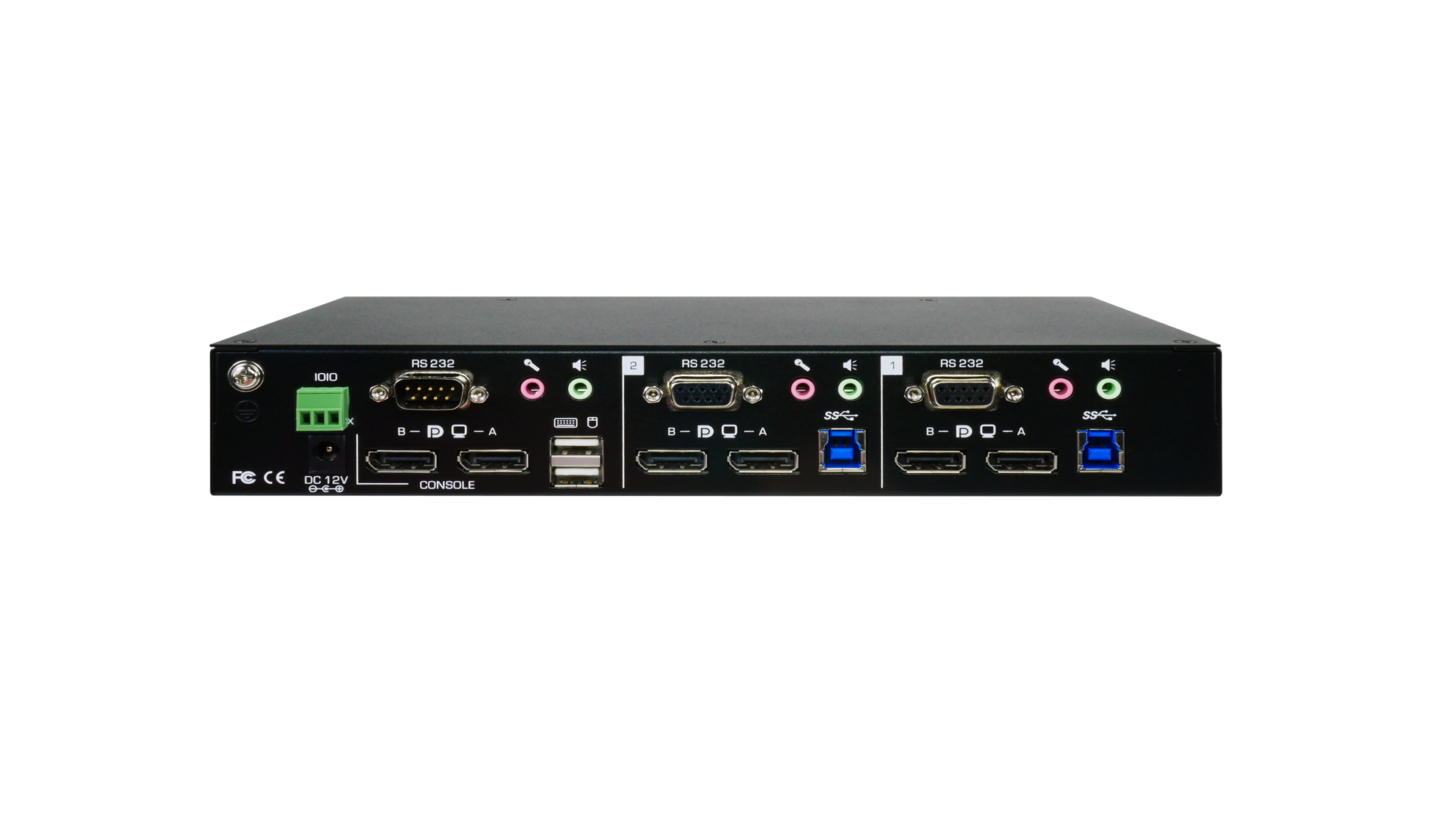

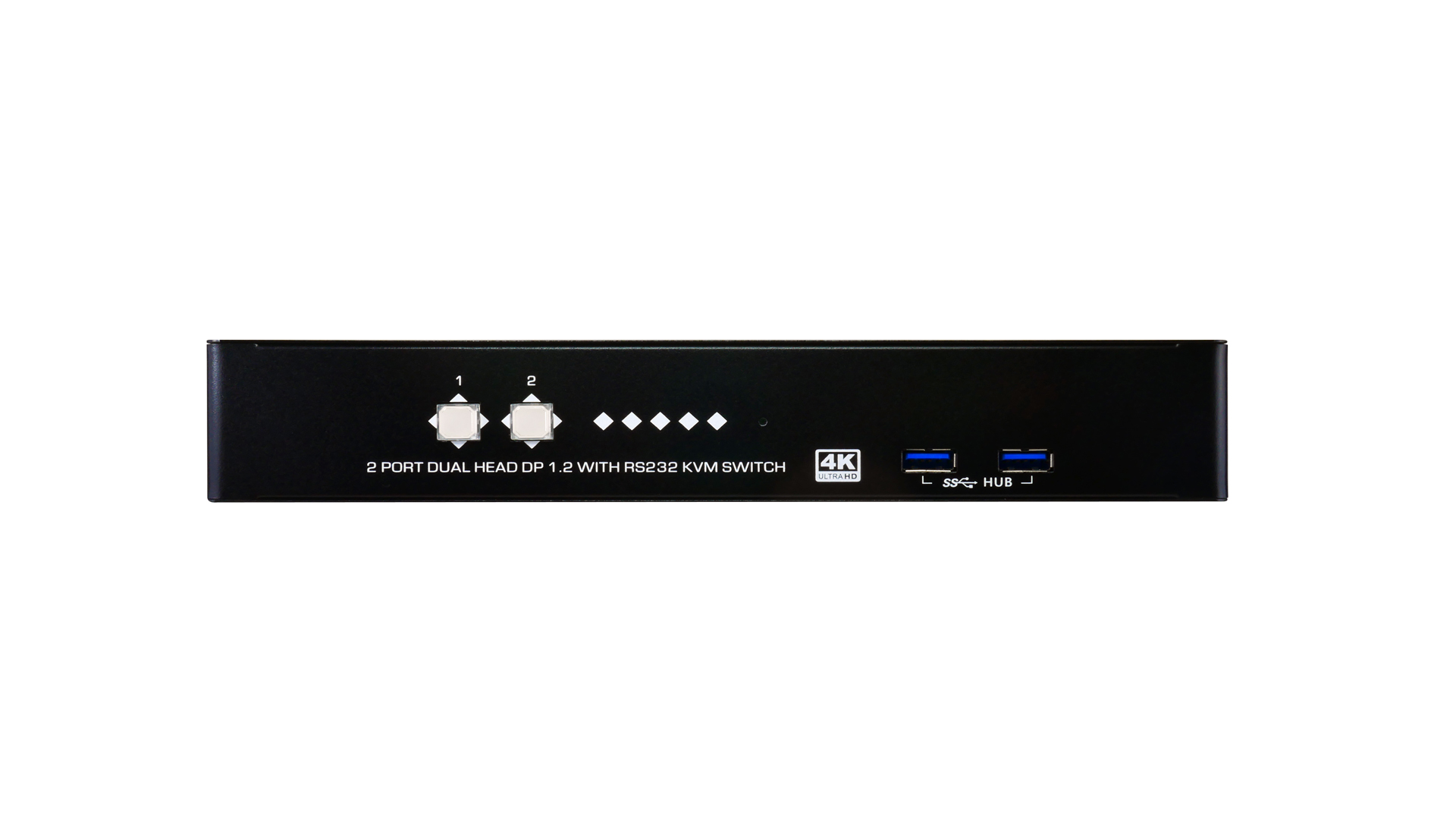

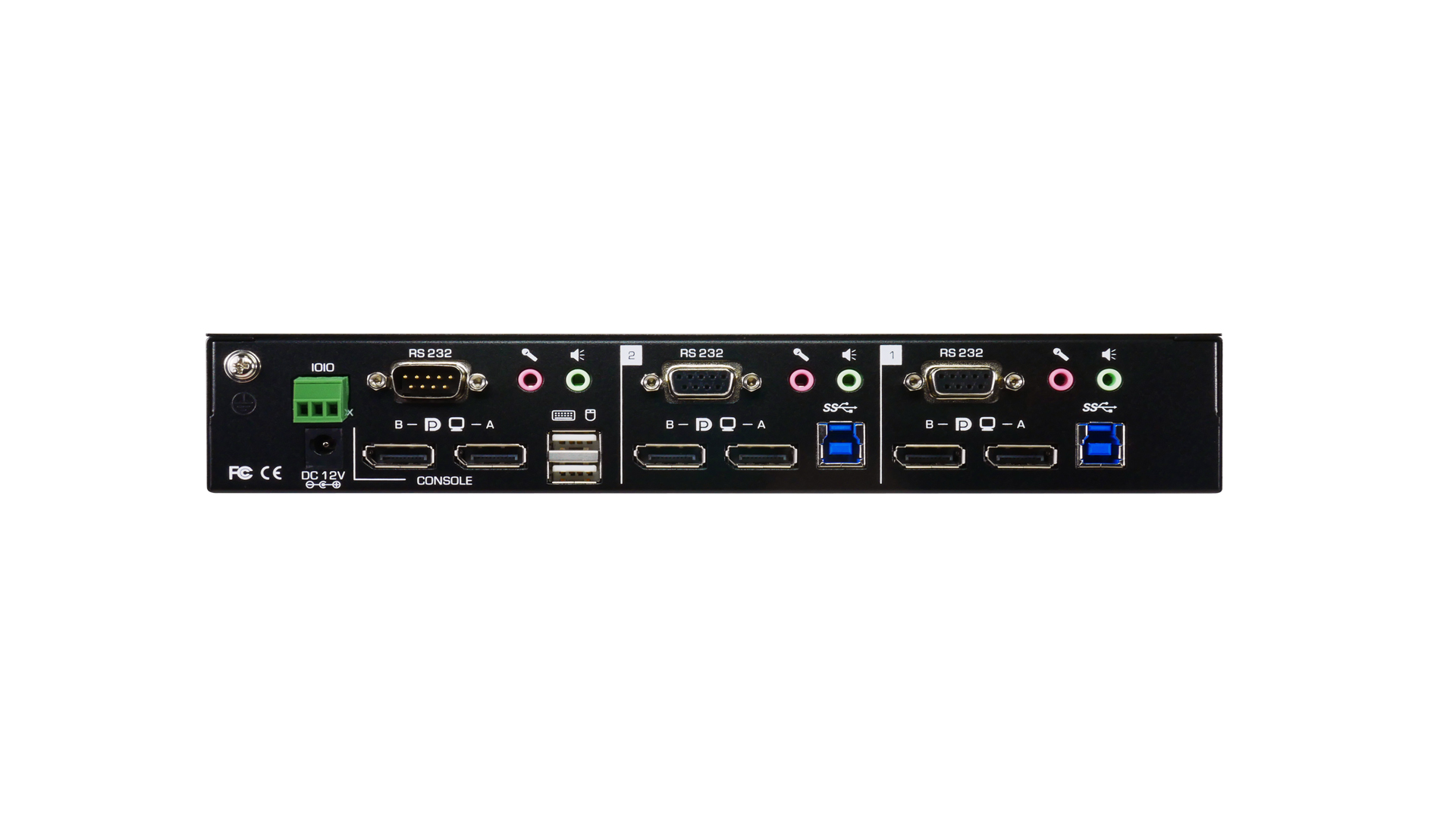

2-port Dual-display DP 1.2 Seamless KVM Switch w/ Audio, USB 3.2 Gen1 Hub and RS-232 Port
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
■ 2-port dual-display DP KVM switch with audio, USB 3.2 Gen1 hub and RS-232 port
■ Seamless KVM Switching
■ DisplayPort Full Video Emulation Ready
■ DisplayPort 1.2/1.1 specification compliant supports Ultra HD Displays
■ Independent/Simultaneous KVM/USB Hub/Audio switching operation
■ Supports Full-function KVM Control with RS-232 Commands
■ Comprehensive driver support for all types of USB keyboards and mice
■ USB 3.2 Gen1/2.0/1.1 specification compliant
■ Supports digital video resolution up to 3840 x 2160@60Hz
■ Supports Windows 7/10/11, Linux and Mac OS
■ Multi-platform supports PC and Macintosh
■ 2 USB 3.2 Gen1 hub ports for high-speed USB peripheral sharing
■ Proprietary Keyboard/Mouse Emulation ASIC
■ Firmware upgradable via USB port
- Description
- Specification
- Download

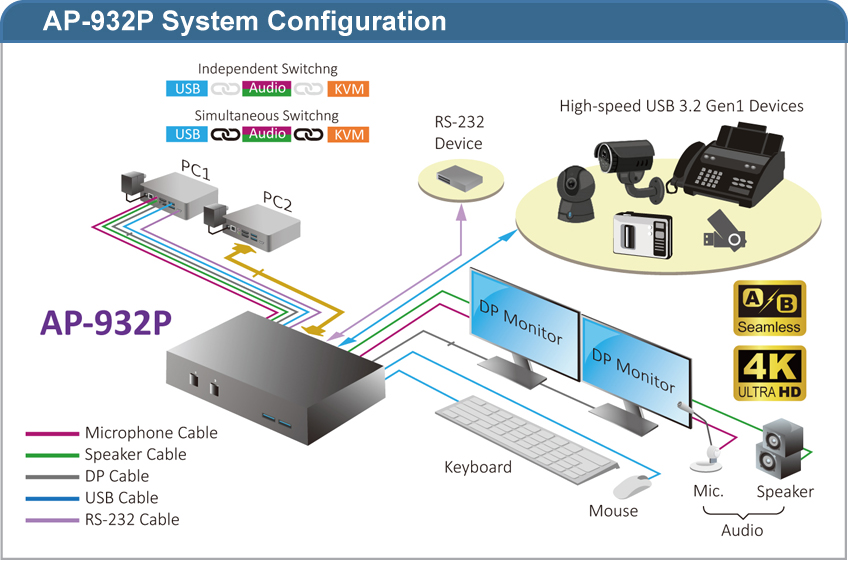

The AP-932P 2-port Dual-display DP 1.2 Seamless KVM Switch with Audio, USB 3.2 Gen1 Hub and RS-232 Port is designed specifically for sharing 2 DP monitors with 2 multimedia computers having dual-display DP outputs. With AP-932P, you can fully access those 2 multimedia computers using only one keyboard, one mouse and two DP monitors. This dual-display DP Seamless KVM Switch supports 3840x2160@60Hz resolution which maximizes your convenience in adapting any display requirements.
