2-port 4K DP 1.2 Splitter w/ EDID Emulation
.jpg)
.jpg)
.jpg)
.jpg)
- DP1.2 splitter with 1 DP input port and 2 DP output ports
- Allow 2 UHD displays to show simultaneously the same DP input source
- Compliant with DP-enabled media source
- Support DP true 4K 60Hz, ultra high definition (UHD) and HDCP
- Max. resolution up to 4K 2160p@60Hz
- Support HDCP2.2, DP1.2, 3D, RGB 4:4:4
- Supported video resolutions: 2160p/1080p/720p/480p and others
- Supported Audio Formats: DSD/Dolby TrueHD/DTS-HD master audio/Dolby Atmos/Dolby-AC3/LPCM7.1
- Simple Plug-and-play, compact design and no extra software needed
- Metal enclosure overcomes overheating problems with perfect heat dissipation
- Description

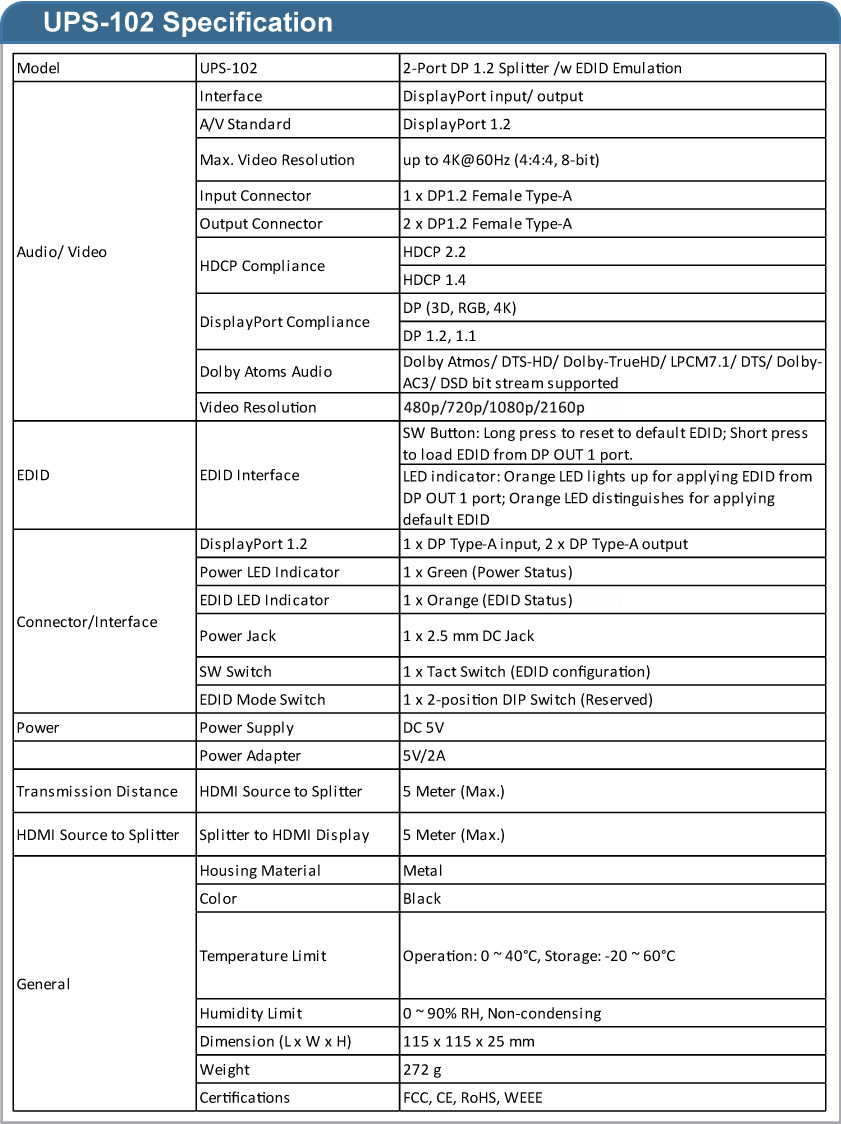

- Specification
- Download

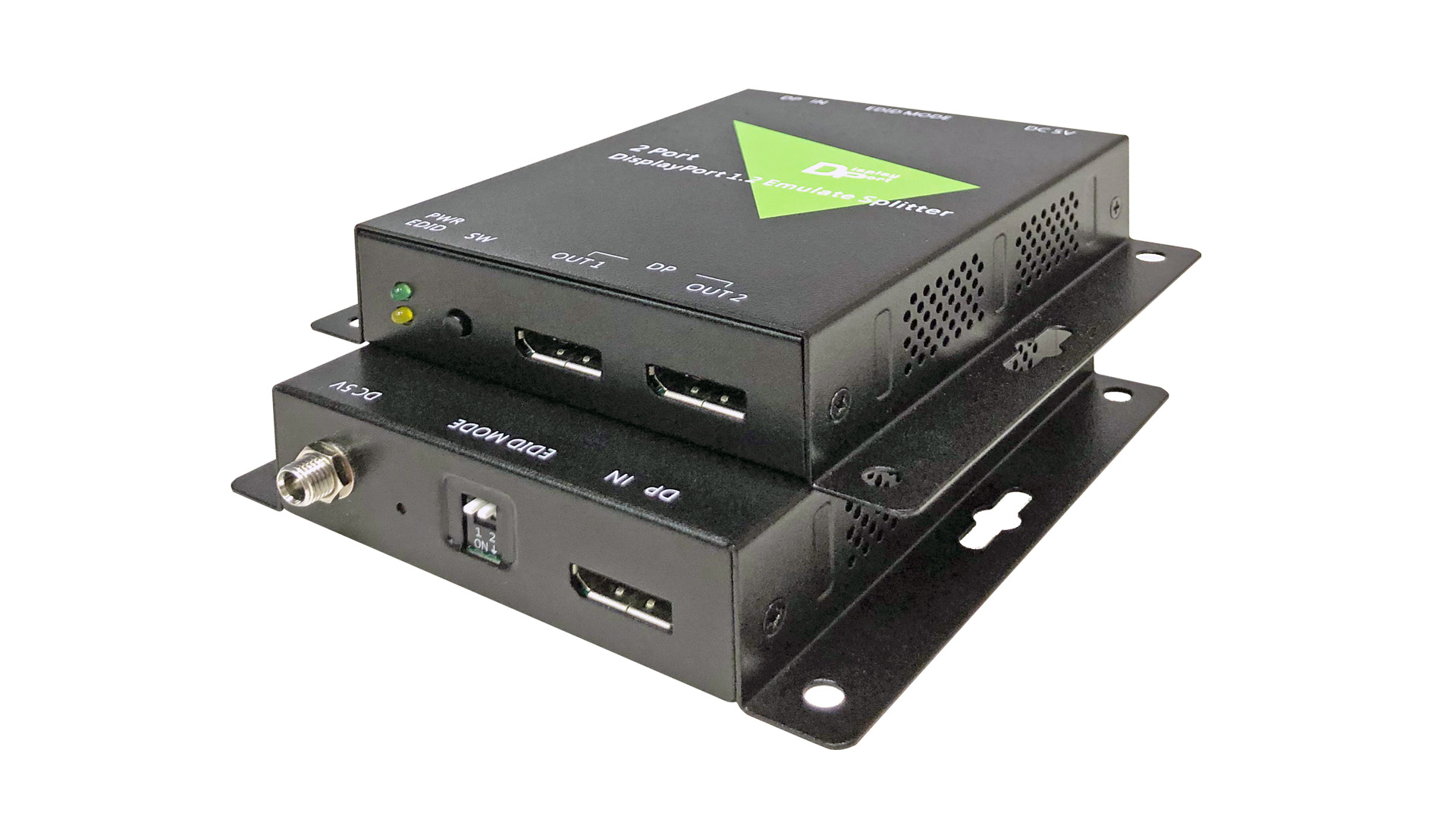

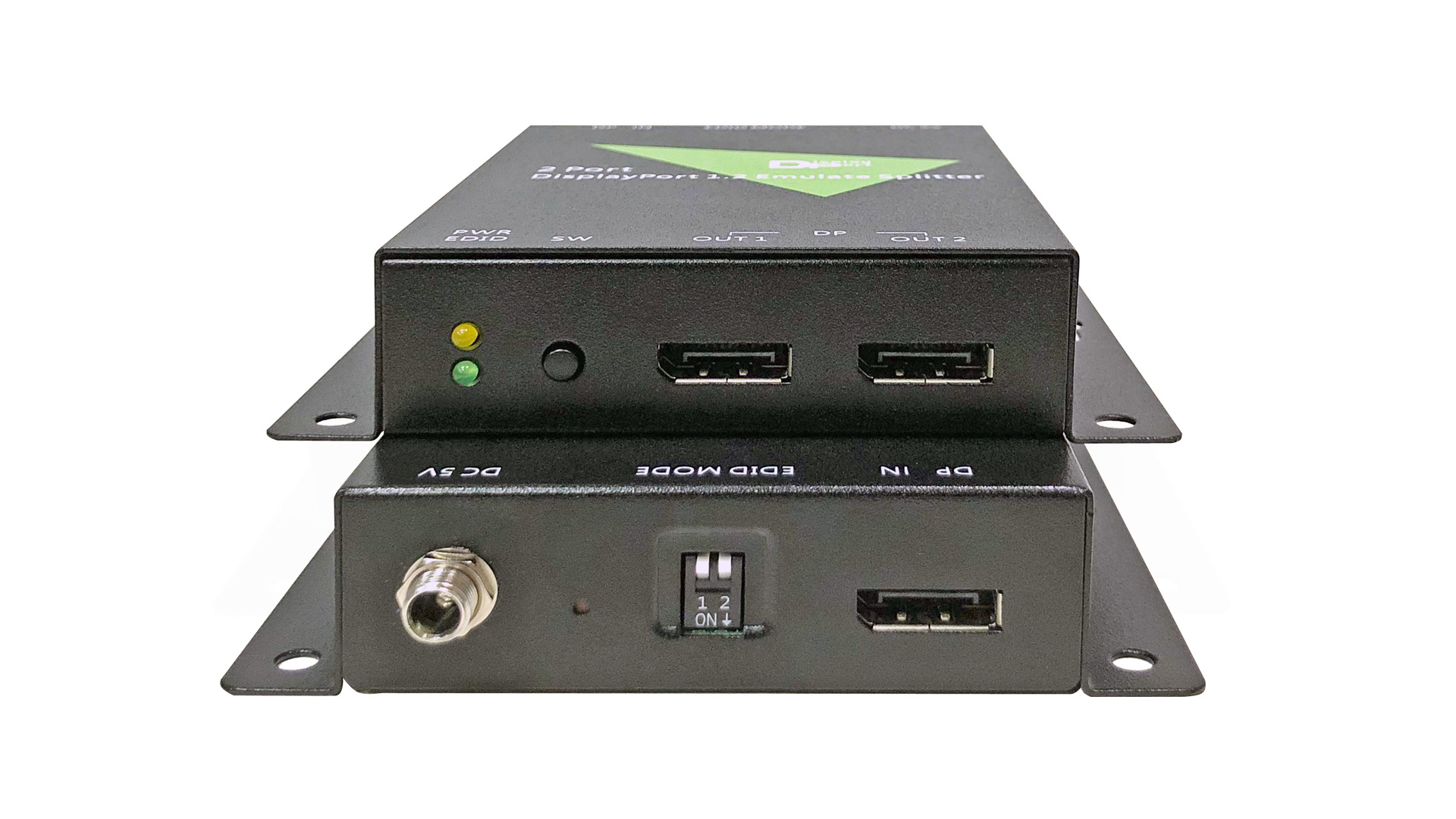

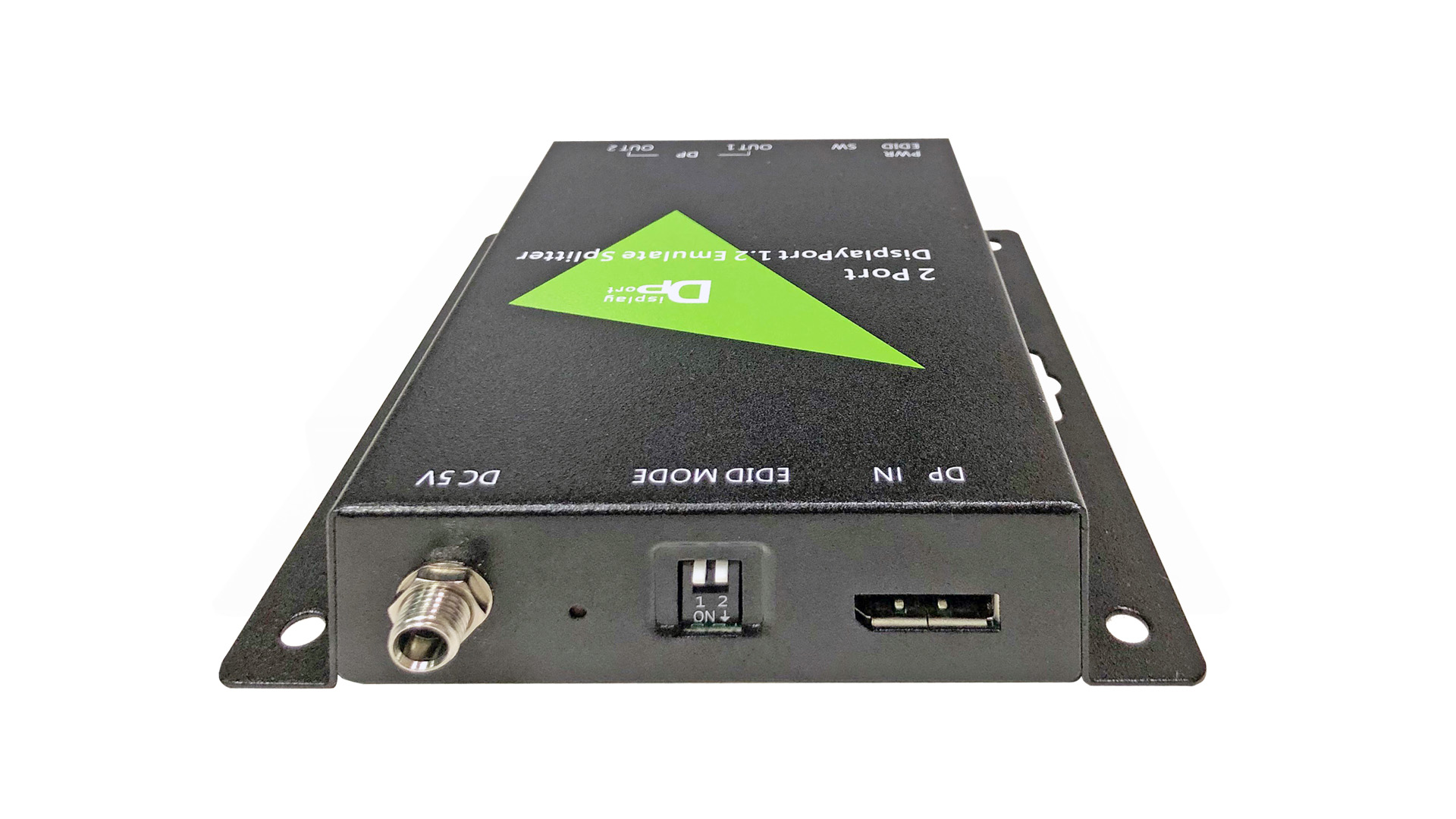

The UPS-102 is a 4K DisplayPort Splitter, having 1 DP input port and 2 DP output ports. It can distribute an DP media source to two DP displays, transmitting video and audio
simultaneously, with the DP1.2 connectivity standard which is capable of displaying 4K resolution at 60Hz without any major lays or FPS loss.

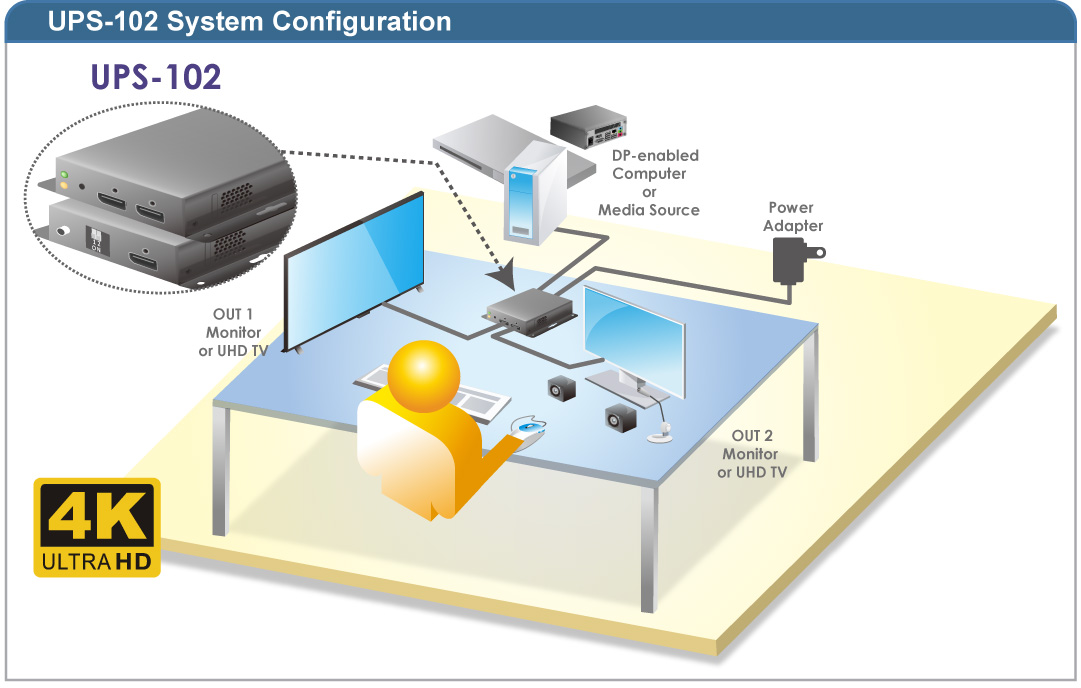

With UPS-102, you may connect the OUT 1 port with an UHD TV and OUT 2 port with another UHD TV to simultaneously enjoy incredibly immersive viewing and listening
experience at your living room and bedding room. The setup is as simple as connecting the DP media source, DP displays and its power adapter. UPS-102 is absolutely your
ideal solution for trade show, conference room, bedding room, living room, kitchen or even your backyard.
