UPH-104

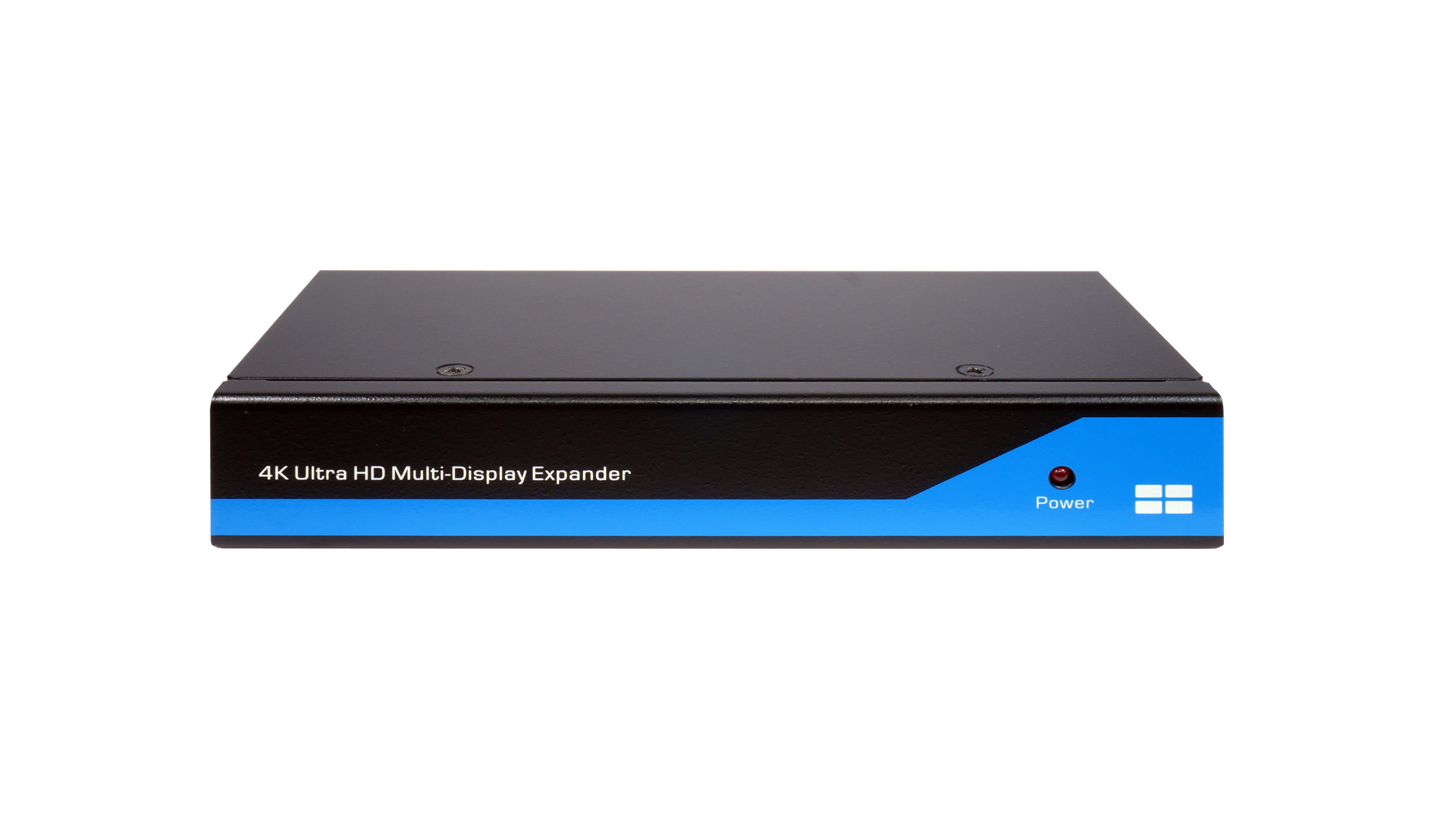

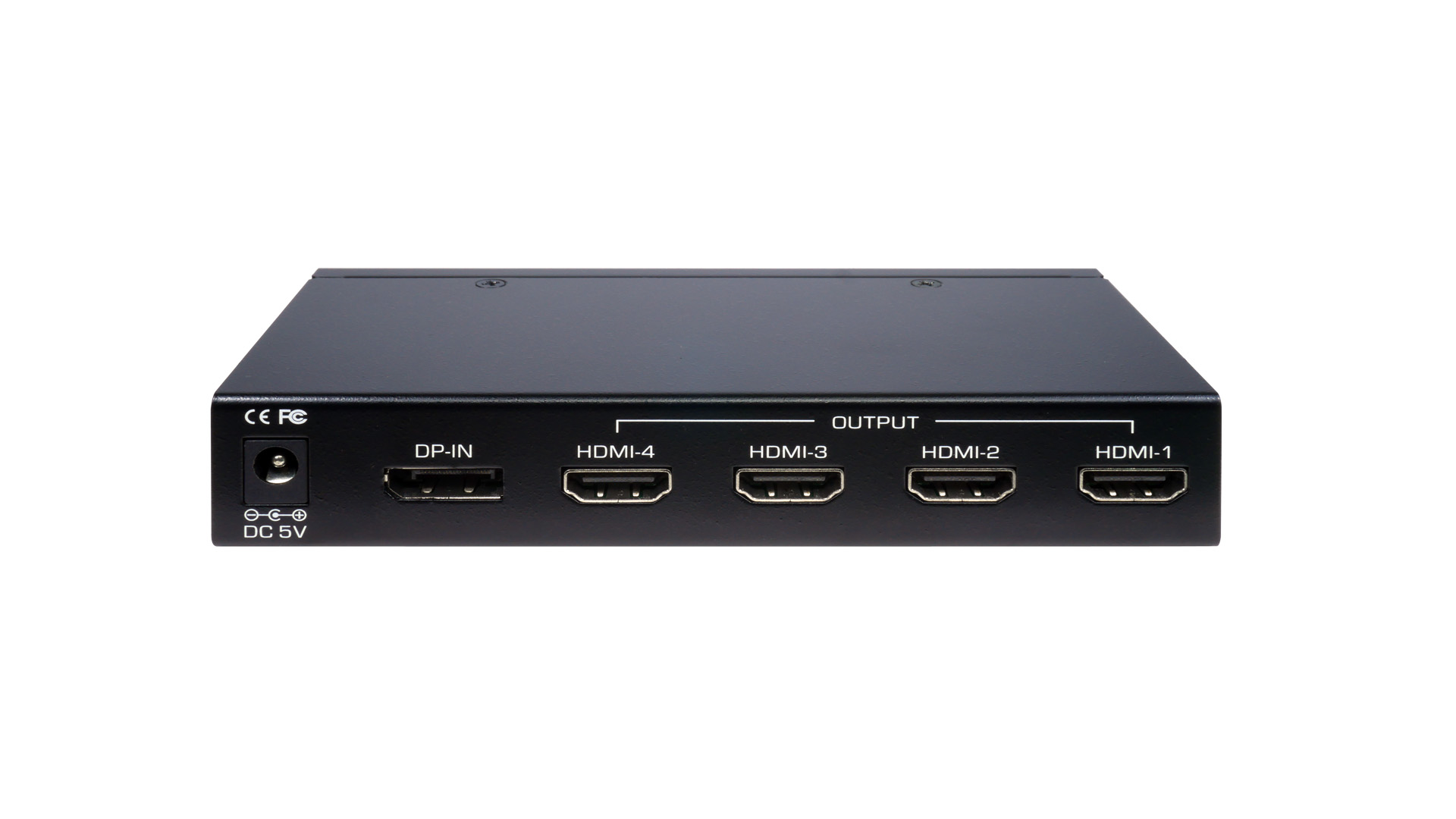

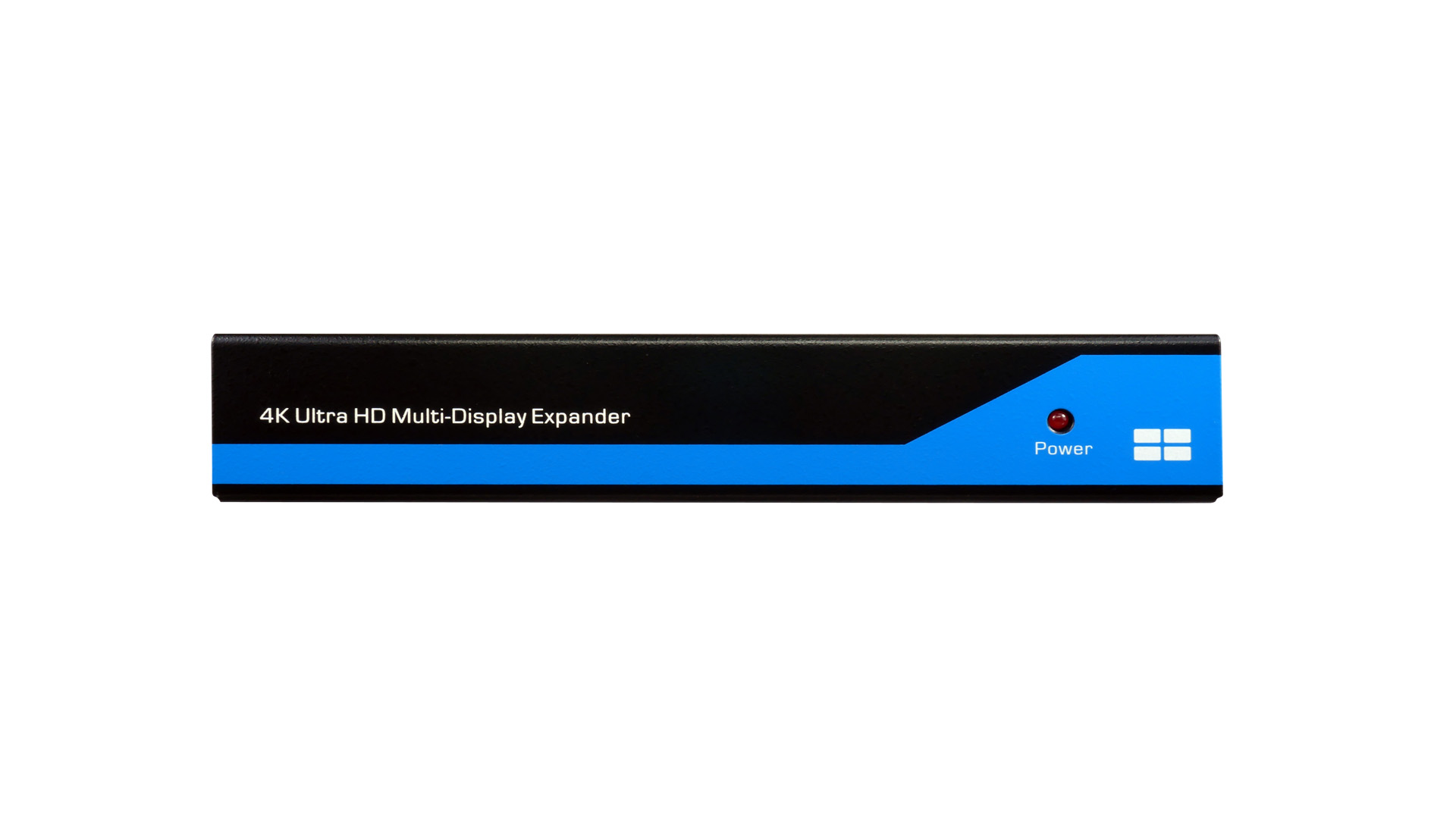

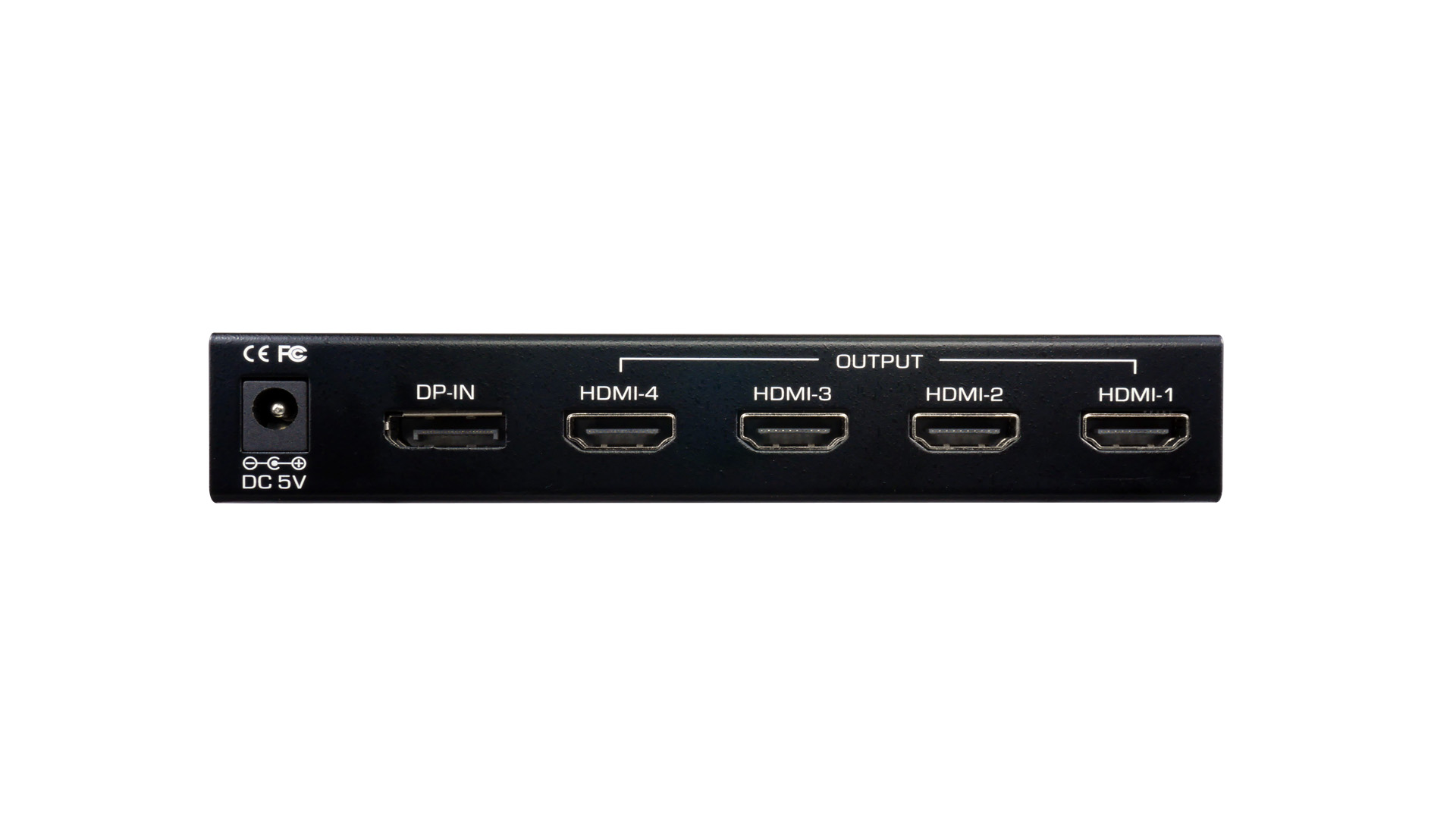

2x2 Video Wall DP to 4x HDMI
2x2 Video Wall DP to 4x HDMI
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
- DisplayPort Input, Output by HDMI
- Expandview or Clone Mode with multi-box option
- Support DisplayPort 1.2 MST and SST input
- Support extended display resolution up to 12K x 2K
- Auto-switching between Clone-view and Multiple-view depending on HDMI monitors threshold
- Video card independent, no extra software needed
Description
- Description

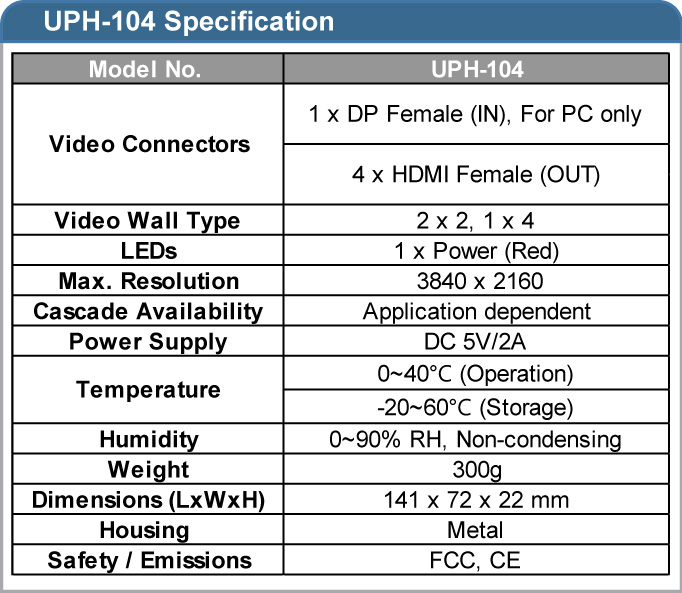

- Specification
- Download

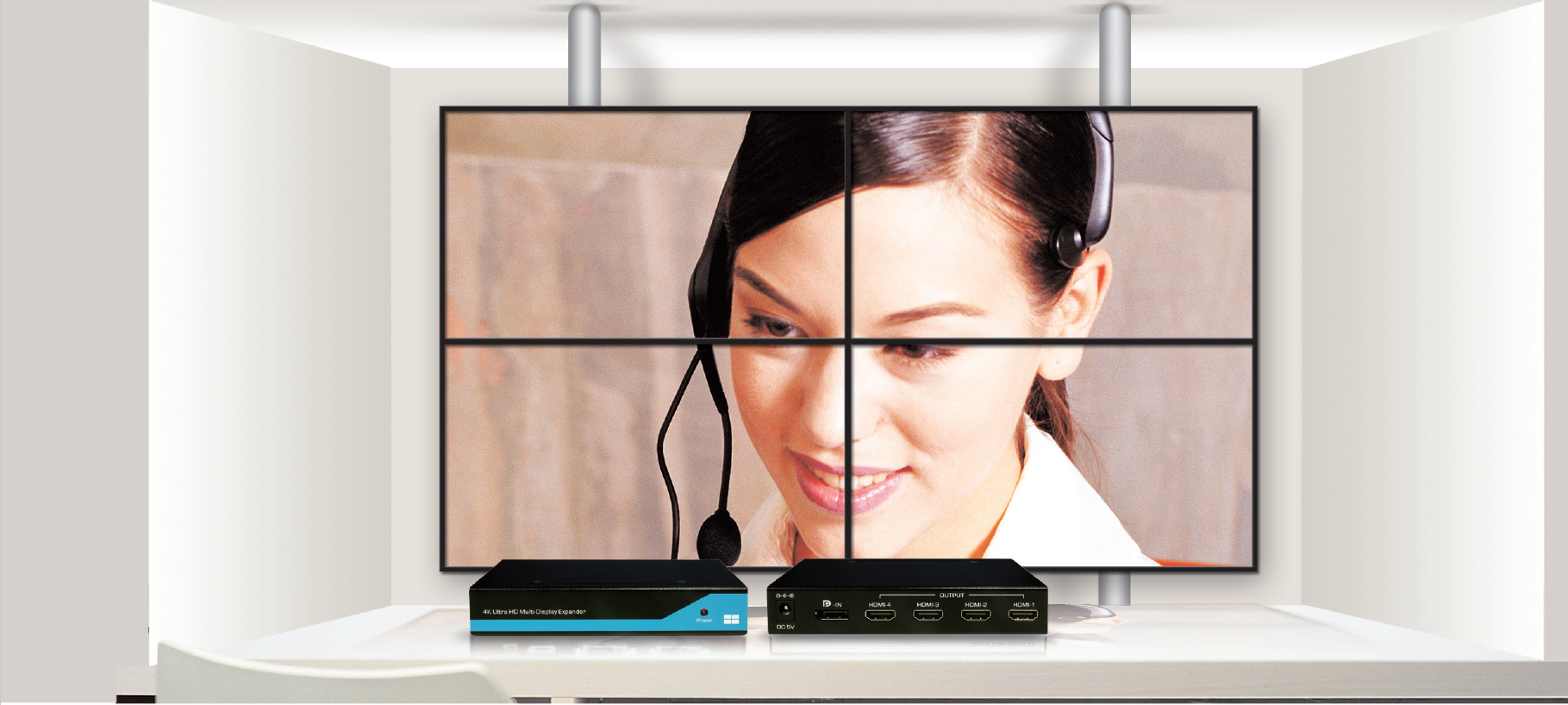

UPH104 optimizes the display outputs of DisplayPort, a future-ready solution for high performance interface. The effective bandwidth can be flexibly applied to meet video-audio display needs. The DisplayPort to 4-port HDMI Video Wall allows display of multi-functioning monitors using a single cable delivery.
Flexible Multi-monitors Display

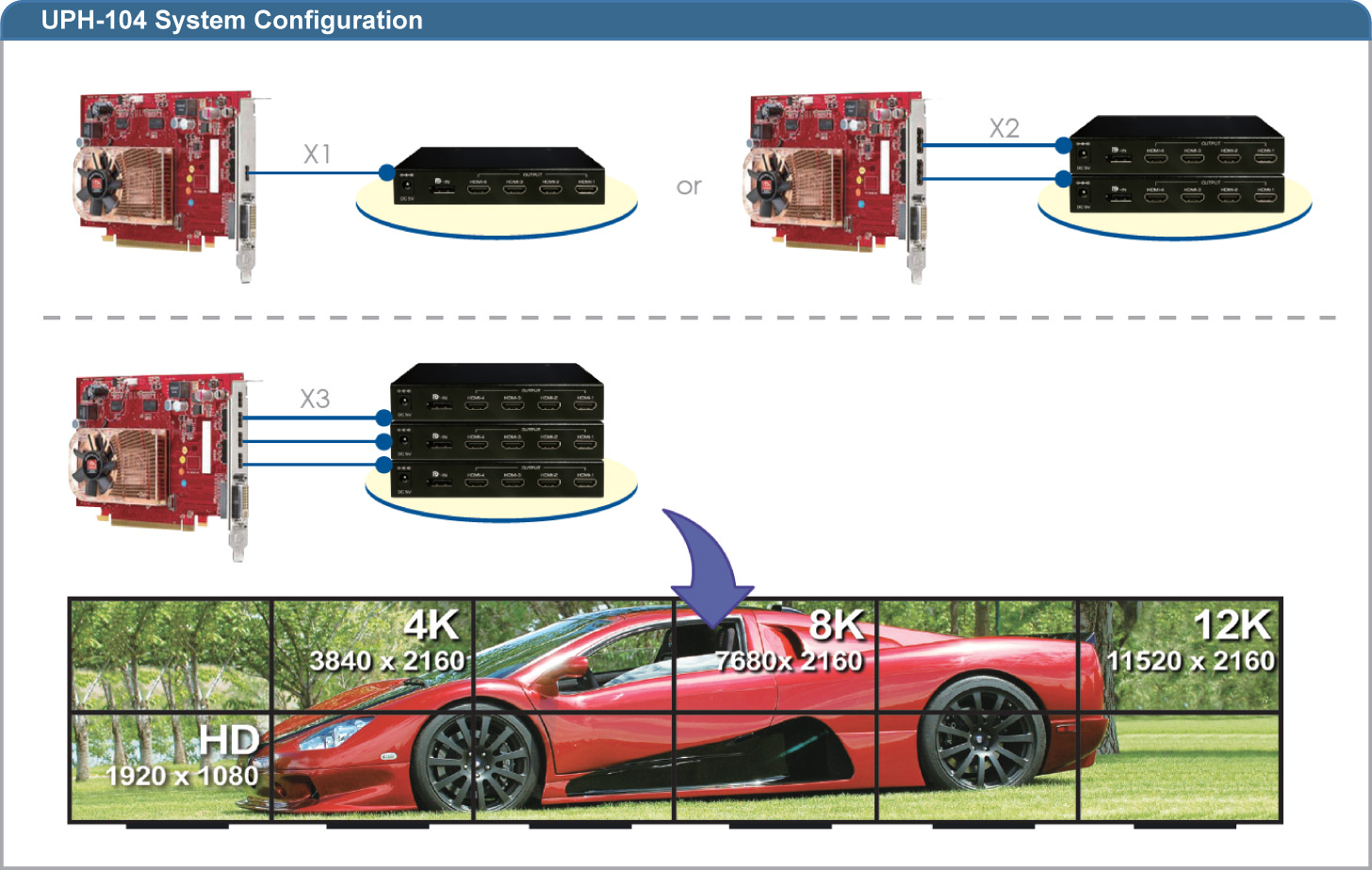

Each unit can control up to 4 monitors in any of the 4 display modes, and when combine in a multiple unit configuration, will allows a maximum of 24 gigantic display monitors video wall. Changing the screen configuration is easy on Windows 7 through software.
UPH-104 DATASHEET
(2023/07/05 11:52:24)
Video-wall Control Comparison
(2023/07/05 11:52:24)
