AP-934P

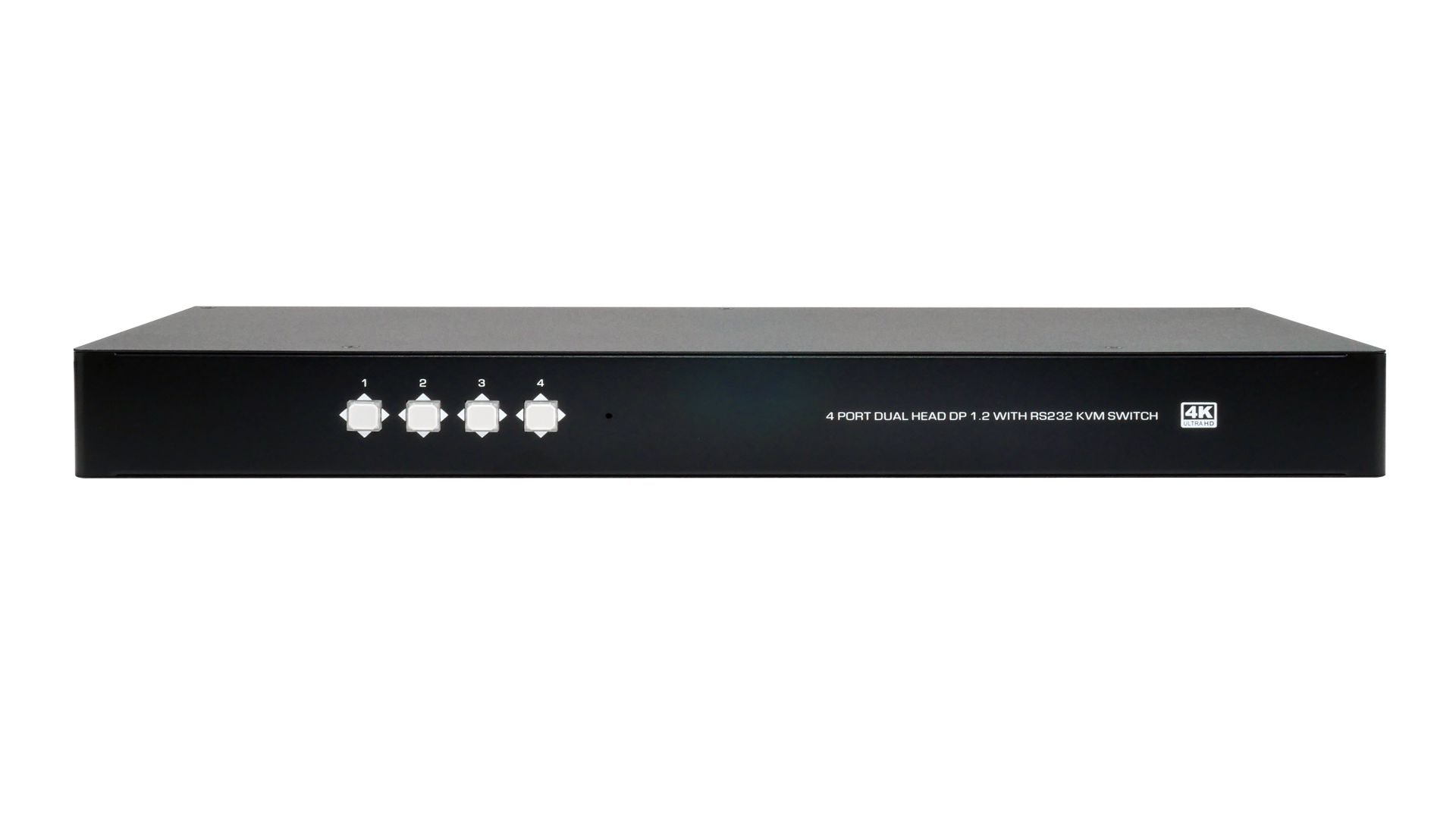

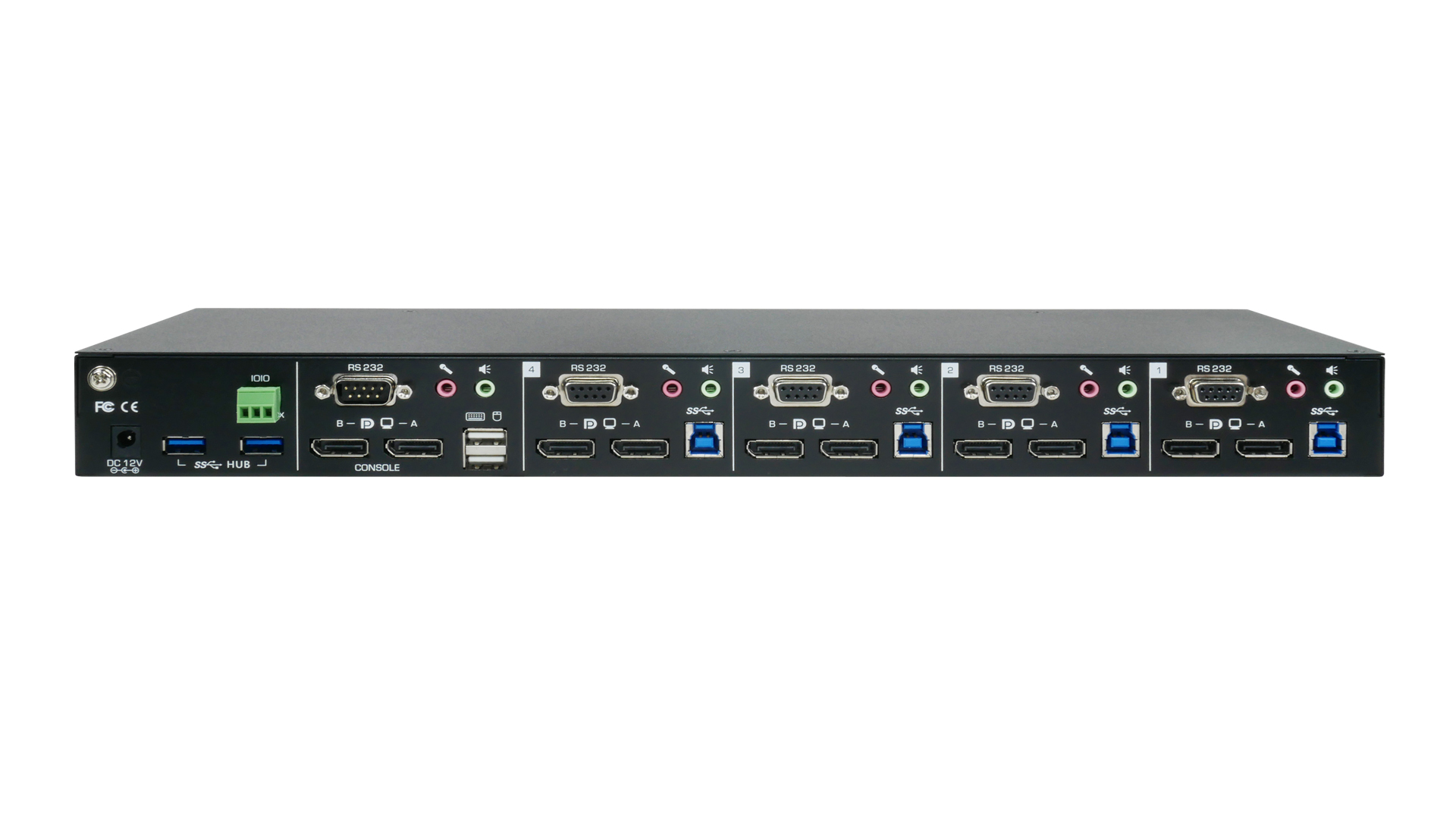

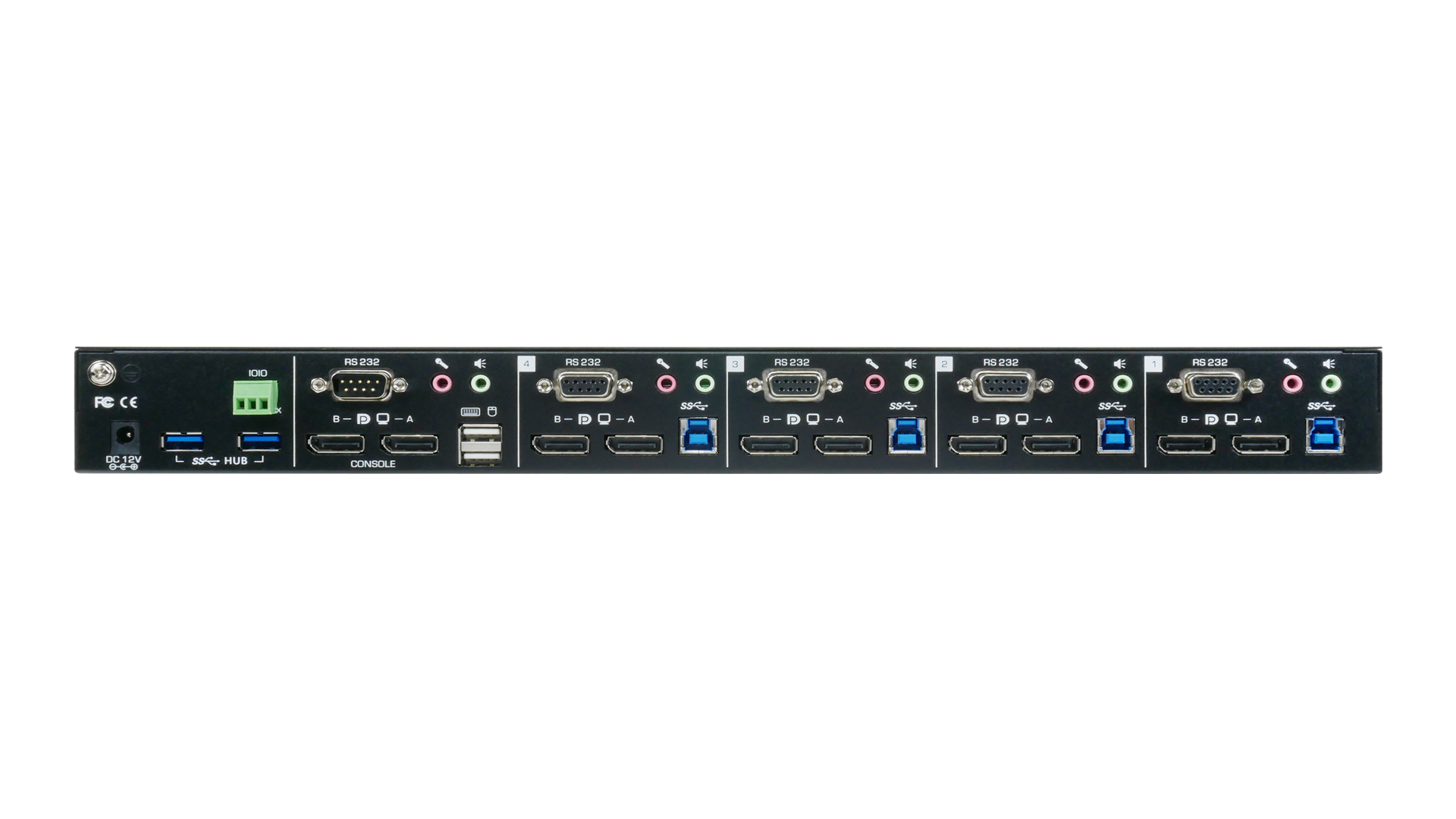

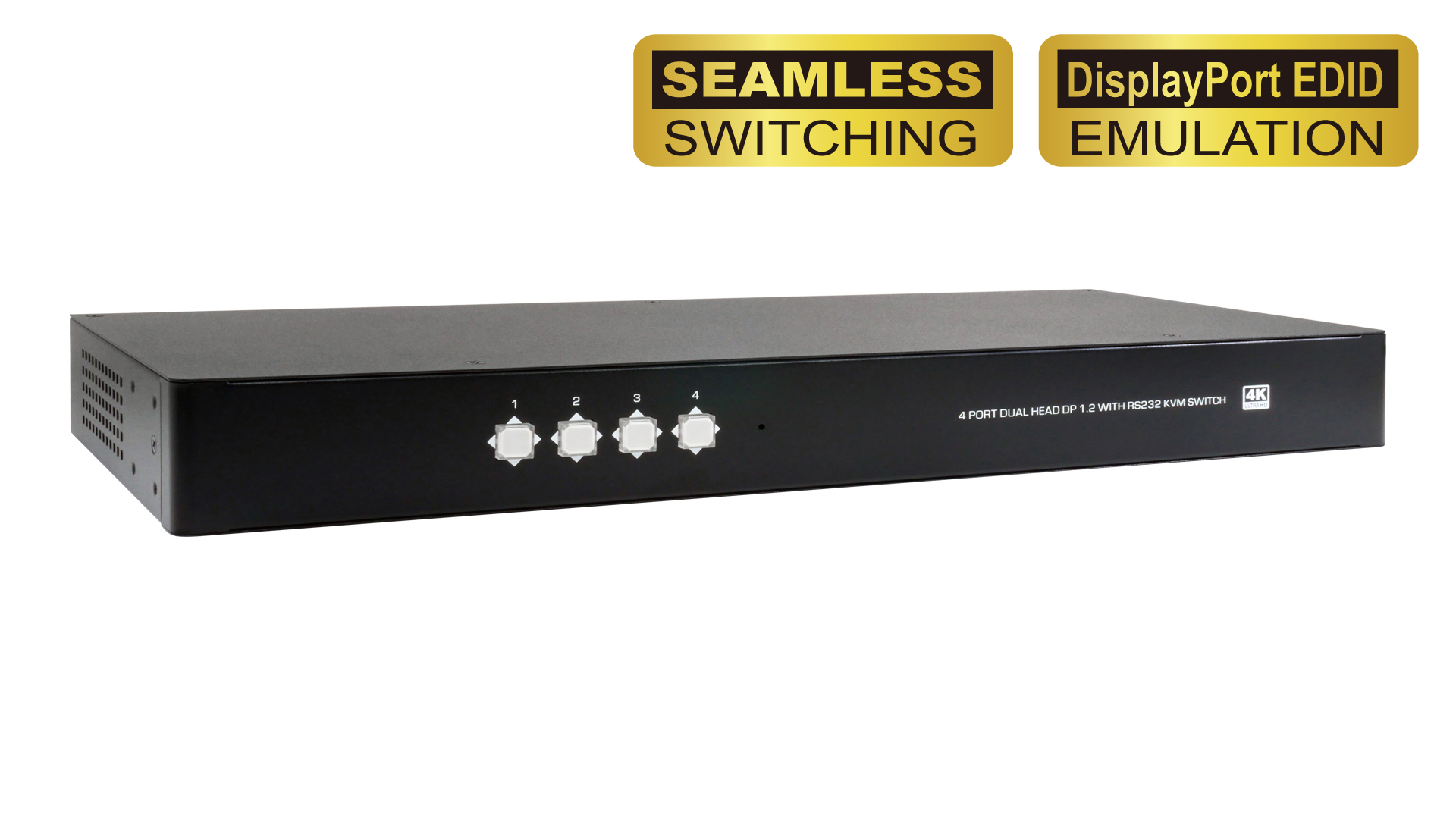

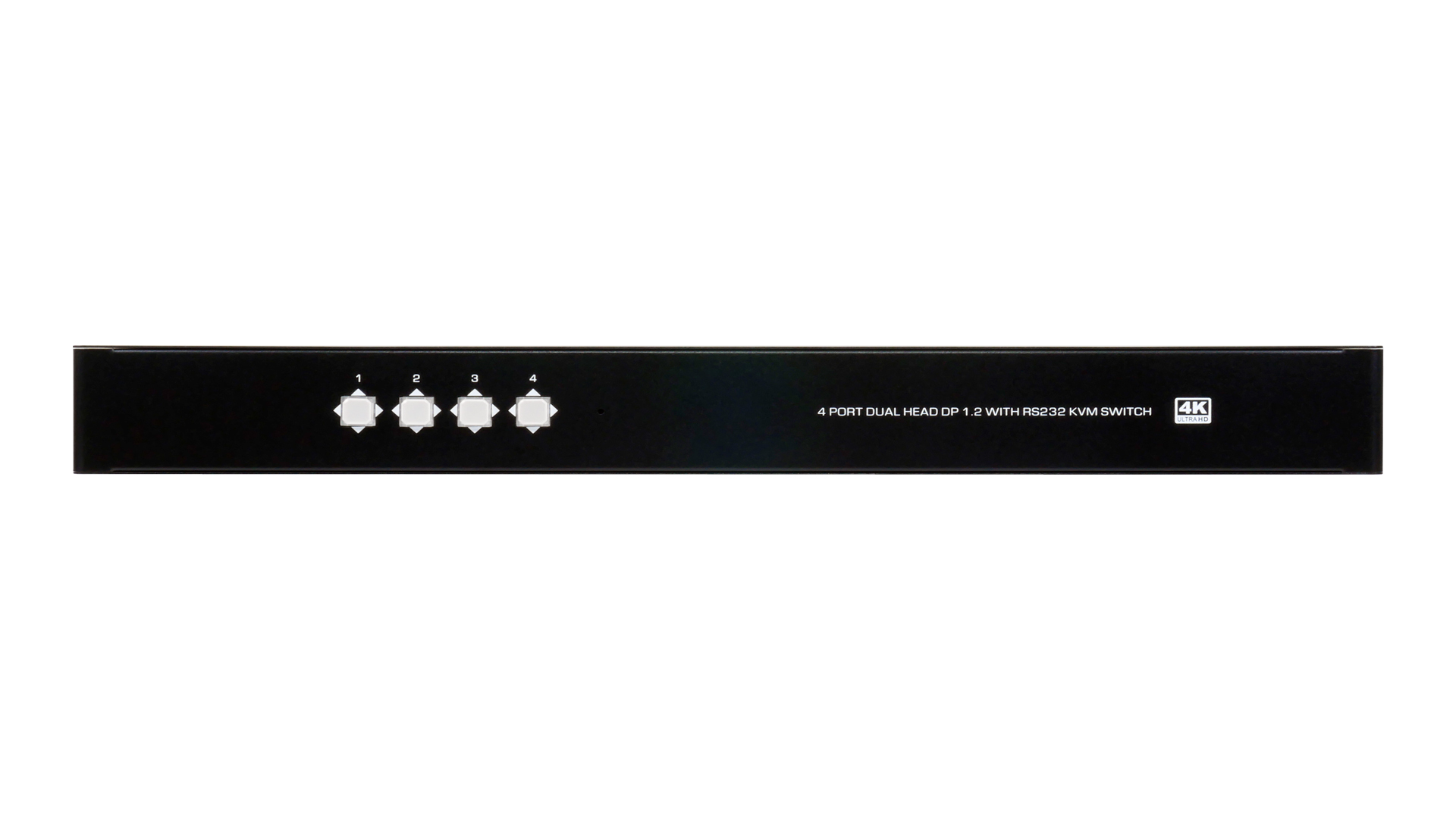

4-port Dual-display DP 1.2 Seamless KVM Switch w/ Audio, USB 3.2 Gen1 Hub and RS-232 Port
4-port Dual-display DP 1.2 Seamless KVM Switch w/ Audio, USB 3.2 Gen1 Hub and RS-232 Port
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
- 4-port dual-display DP KVM switch with audio, USB 3.2 Gen1 hub & RS-232 port
- Seamless KVM Switching
- DisplayPort Full Video Emulation Ready
- DisplayPort 1.2/1.1 specification compliant supports Ultra HD Displays
- Independent/Synchronous KVM/USB Hub/Audio switching operation
- Supports Full-function KVM Control with RS-232 Commands
- Comprehensive driver support for all types of USB keyboards and mice
- USB 3.2 Gen1/2.0/1.1 specification compliant
- Supports digital video resolution up to 3840 x 2160@60Hz
- Supports Windows 7/10/11, Linux and Mac OS
- Multi-platform supports PC and Macintosh
- 2 USB 3.2 Gen1 hub ports for high-speed USB peripheral sharing
- Proprietary HID Keyboard/Mouse Emulation ASIC
- Firmware upgradable via USB port
Description
- Description

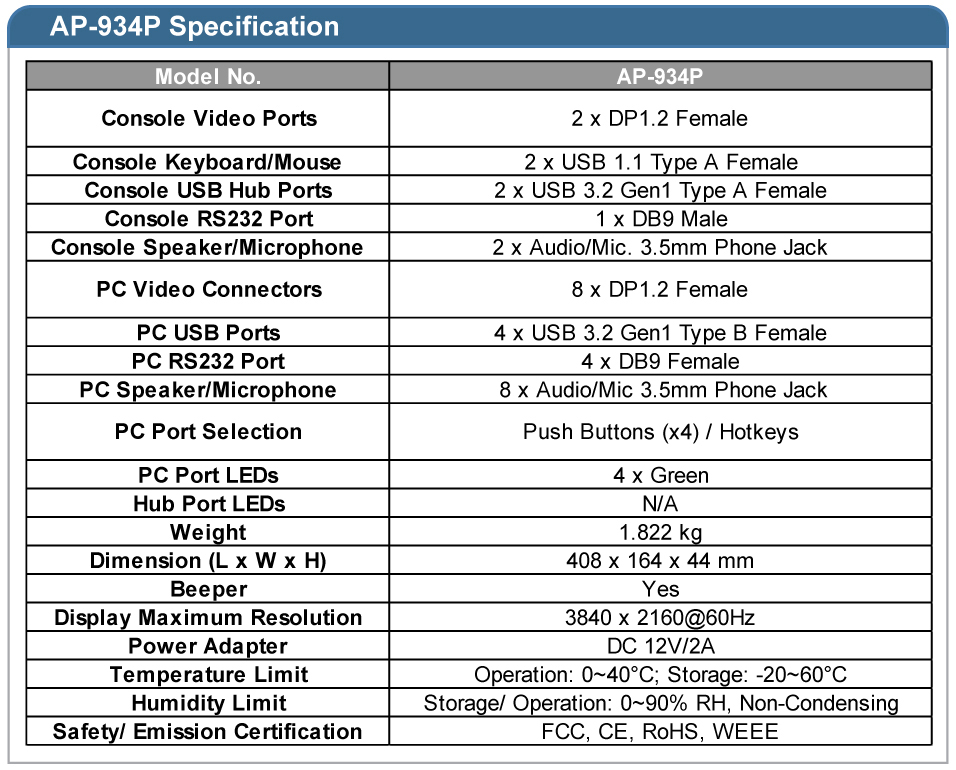

- Specification
- Download

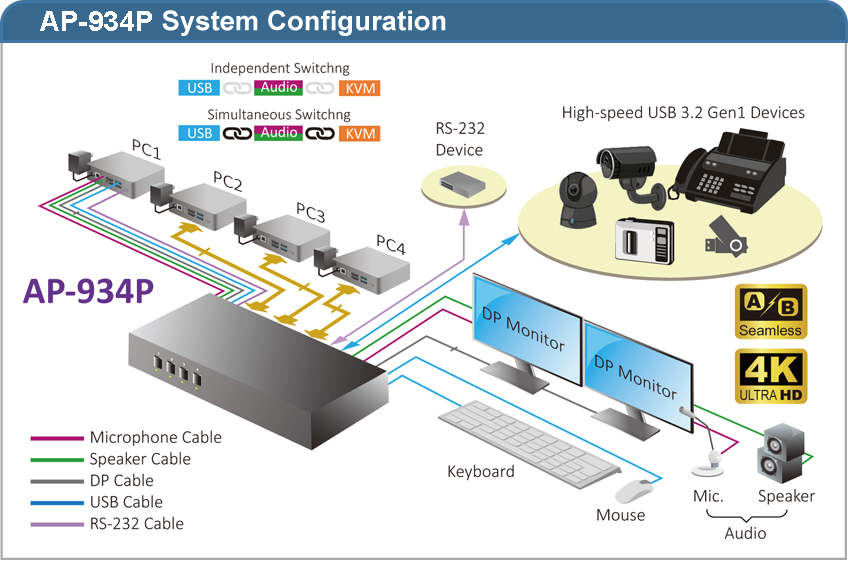

The AP-934P 4-port Dual-display DP 1.2 Seamless KVM Switch with Audio, USB 3.2 Gen1 Hub and RS-232 Port is designed specifically for sharing 2 DP monitors with 4 multimedia computers having dual-display DP outputs. With AP-934P, you can fully access those 4 multimedia computers using only one keyboard, one mouse and two DP monitors. This dual-display DP Seamless KVM Switch supports 3840x2160@60Hz resolution which maximizes your convenience in adapting any display requirements.
AP-934P DATASHEET
(2025/02/19 15:10:46)
Desktop KVM Switch Comparison
(2025/02/19 15:10:46)
